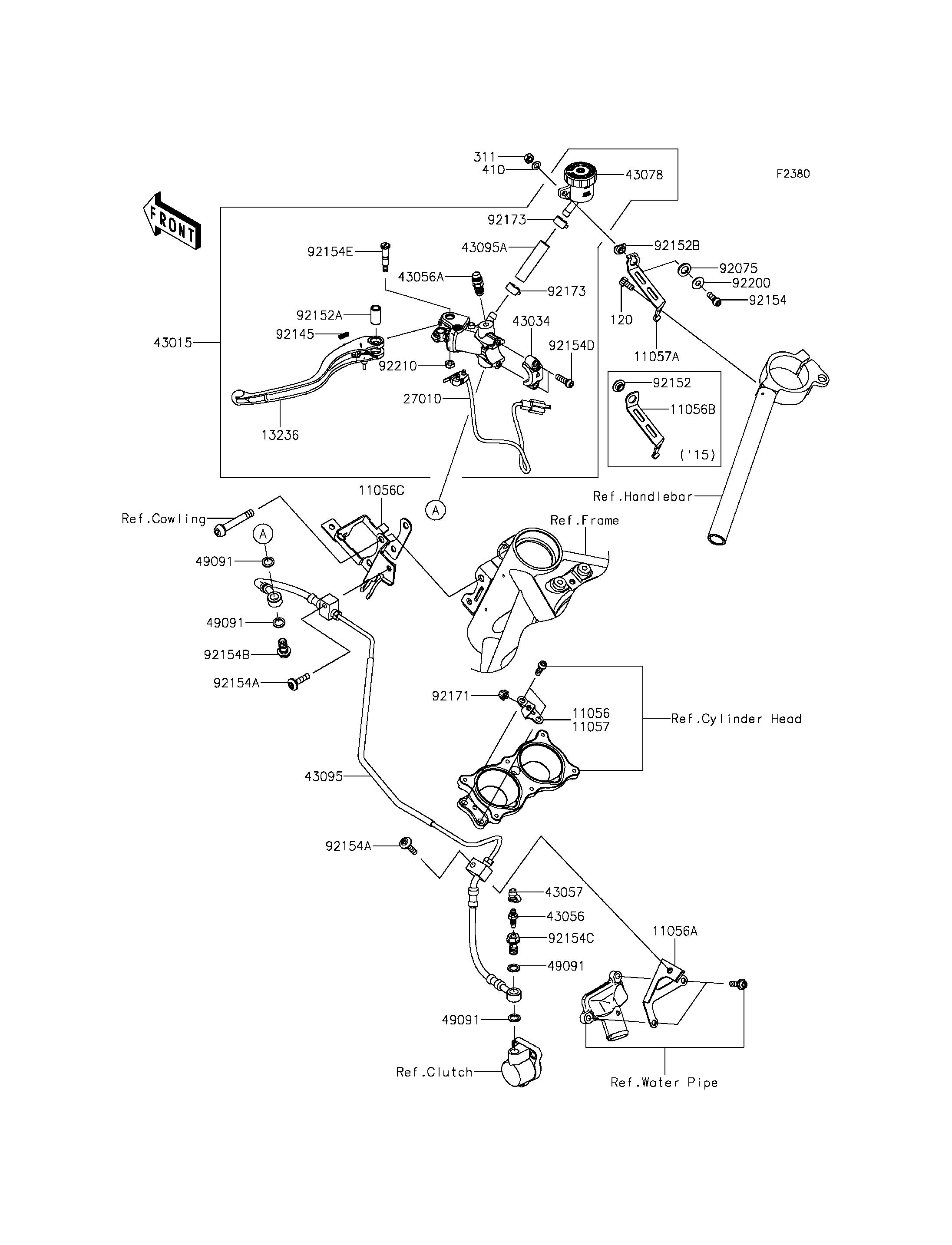

2016 NINJA H2™ - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
311
410
11056A
11056C
11057
11057A
13236
27010
43015
43034
43056
43056A
43057
43078
43095
43095A
49091
49091
49091
49091
92075
92145
92152A
92152B
92154
92154A
92154A
92154B
92154C
92154D
92154E
92171
92173
92173
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CB0612 1
NUT-HEX 311 311AC0600 1
WASHER-PLAIN-SMALL 410 410AA0600 1
BRACKET,CYLINDER 11056A 11056-7079 1
BRACKET,METER STAY 11056C 11056-7533 1
BRACKET,THROBO. HOLDER 11057 11057-0041 1
BRACKET,RESERVOIR 11057A 11057-0053 1
LEVER-COMP,CLUTCH 13236 13236-0771 1
SWITCH,STOP 27010 27010-0824 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0616 1
HOLDER-BRAKE 43034 43034-0121 1
BREATHER-BRAKE 43056 43056-0007 1
BREATHER-BRAKE 43056A 43056-0012 1
CAP-BREATHER 43057 43057-003 1
RESERVOIR 43078 43078-0578 1
HOSE-BRAKE,CLUTCH 43095 43095-0893 1
HOSE-BRAKE 43095A 43095-0909 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
DAMPER 92075 92075-1564 1
SPRING 92145 92145-1683 1
COLLAR,LEVER 92152A 92152-2151 1
COLLAR,6.5X10X5.3 92152B 92152-2225 1
BOLT,SOCKET,6X18 92154 92154-1455 1
BOLT,SOCKET,6X25 92154A 92154-1532 2
BOLT,BANJO,10X19 92154B 92154-1554 1
BOLT,BANJO,10X19,C. RELEASE 92154C 92154-1622 1
BOLT,SOCKET,6X20 92154D 92154-1644 2
BOLT,LEVER 92154E 92154-1809 1
CLAMP 92171 92171-0939 1
CLAMP,HOSE 92173 92173-1498 2
WASHER,6.5X16X1.0 92200 92200-3712 1
NUT,U 92210 92210-1424 1
