Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130A
130B
130B
11056
16082
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92027
92027
92075
92075
92153
92153
92154
92154
92154
92154A
92154A

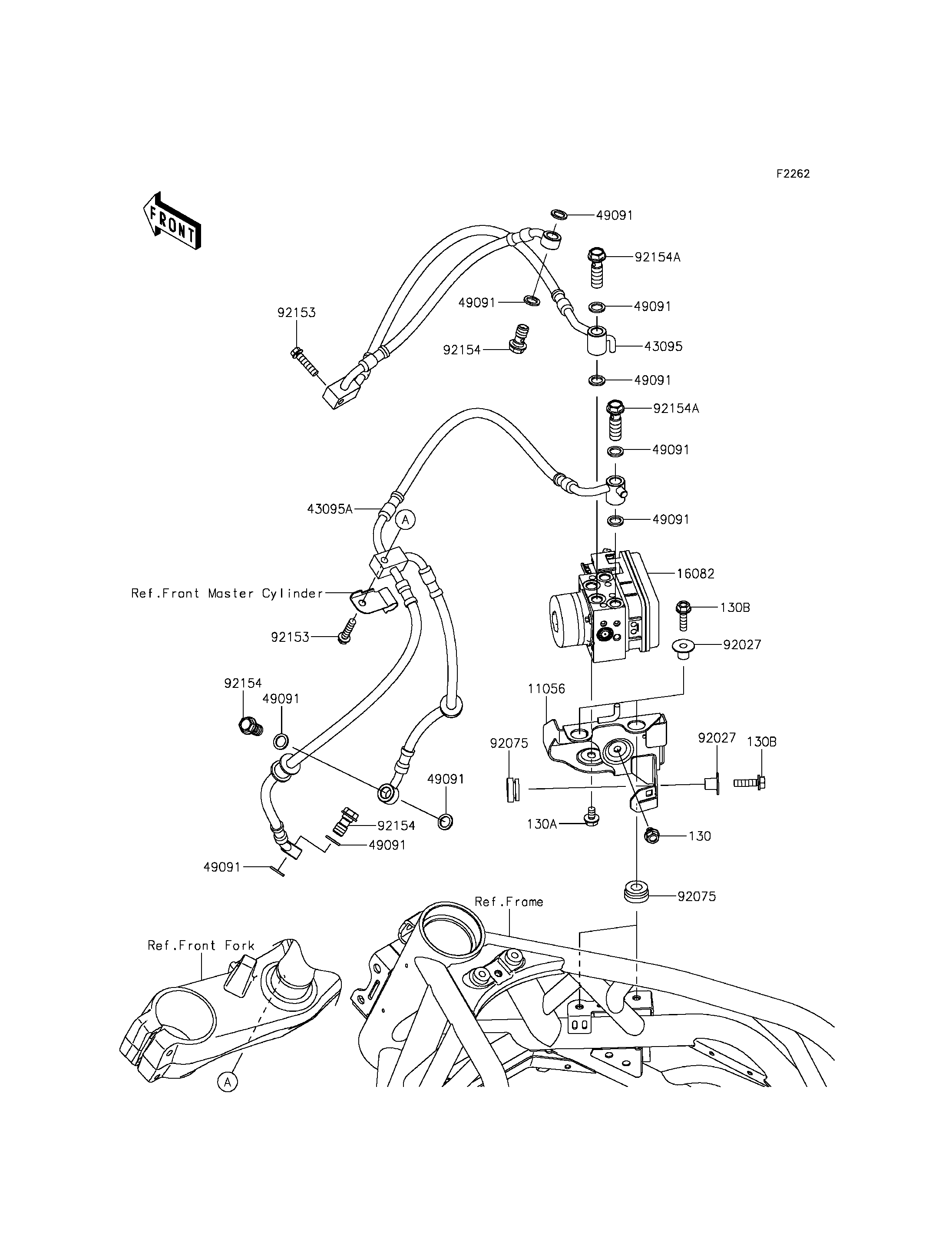

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X8 | 130 | 130BB0608 | 1 | ||
| BOLT-FLANGED,6X10 | 130A | 130BB0610 | 1 | ||
| BOLT-FLANGED,6X22 | 130B | 130BB0622 | 3 | ||
| BRACKET,ABS UNIT | 11056 | 11056-7665 | 1 | ||
| PUMP-ASSY-OIL,ABS | 16082 | 16082-0740 | 1 | ||
| HOSE-BRAKE,M/C-HU | 43095 | 43095-0854 | 1 | ||
| HOSE-BRAKE,ABS UNIT-FR CALIPER | 43095A | 43095-0902 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 10 | ||
| COLLAR,L=12 | 92027 | 92027-1062 | 3 | ||
| DAMPER | 92075 | 92075-277 | 3 | ||
| BOLT,FLANGED,6X25 | 92153 | 92153-1795 | 2 | ||
| BOLT,BANJO,10X19 | 92154 | 92154-1554 | 3 | ||
| BOLT,BANJO,10X32.3 | 92154A | 92154-1555 | 2 |
