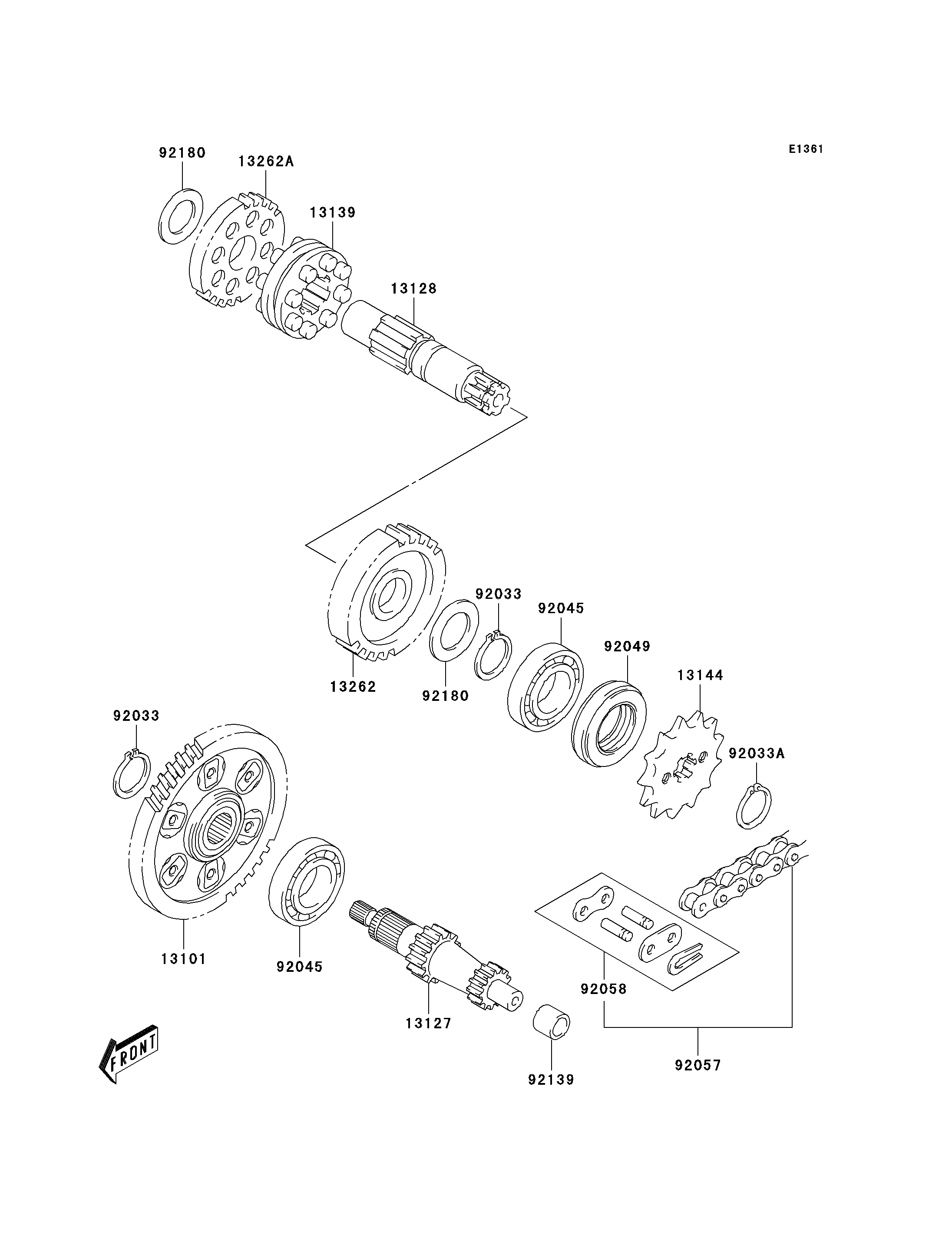

Parts Diagrams |
13101
13127
13128
13139
13144
13262
13262A
92033
92033
92033A
92045
92045
92049
92057
92058
92139
92180
92180
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GEAR-ASSY,PRIMARY DRIVEN | 13101 | 13101-S001 | 1 | ||
| SHAFT-TRANSMISSION INPUT | 13127 | 13127-S007 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-S009 | 1 | ||
| SHIFTER | 13139 | 13139-S003 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-S007 | 1 | ||
| GEAR,OUTPUT LOW,40T | 13262 | 13262-S022 | 1 | ||
| GEAR,OUTPUT 2ND,29T | 13262A | 13262-S023 | 1 | ||
| RING-SNAP,DRIVEN GEAR | 92033 | 92033-S026 | 2 | ||
| RING-SNAP,ENGINE SPROCKET | 92033A | 92033-S027 | 1 | ||
| BEARING-BALL,17X40X12 | 92045 | 92045-S035 | 2 | ||
| SEAL-OIL,CRANKSHAFT OIL,LH | 92049 | 92049-S028 | 1 | ||
| CHAIN,DRIVE 78LJ | 92057 | 92057-S008 | 1 | ||
| JOINT-CHAIN | 92058 | 92058-S002 | 1 | ||
| BUSHING,COUNTER SHAFT | 92139 | 92139-S009 | 1 | ||
| SHIM,17X30X1.0 | 92180 | 92180-S014 | 2 |
| GEAR-ASSY,PRIMARY DRIVEN | |
| REF # | 13101 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION INPUT | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-TRANSMISSION OUTPUT | |
| REF # | 13128 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-OUTPUT,13T | |
| REF # | 13144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,40T | |
| REF # | 13262 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT 2ND,29T | |
| REF # | 13262A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,DRIVEN GEAR | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,ENGINE SPROCKET | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,17X40X12 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,CRANKSHAFT OIL,LH | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,DRIVE 78LJ | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-CHAIN | |
| REF # | 92058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,COUNTER SHAFT | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIM,17X30X1.0 | |
| REF # | 92180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
