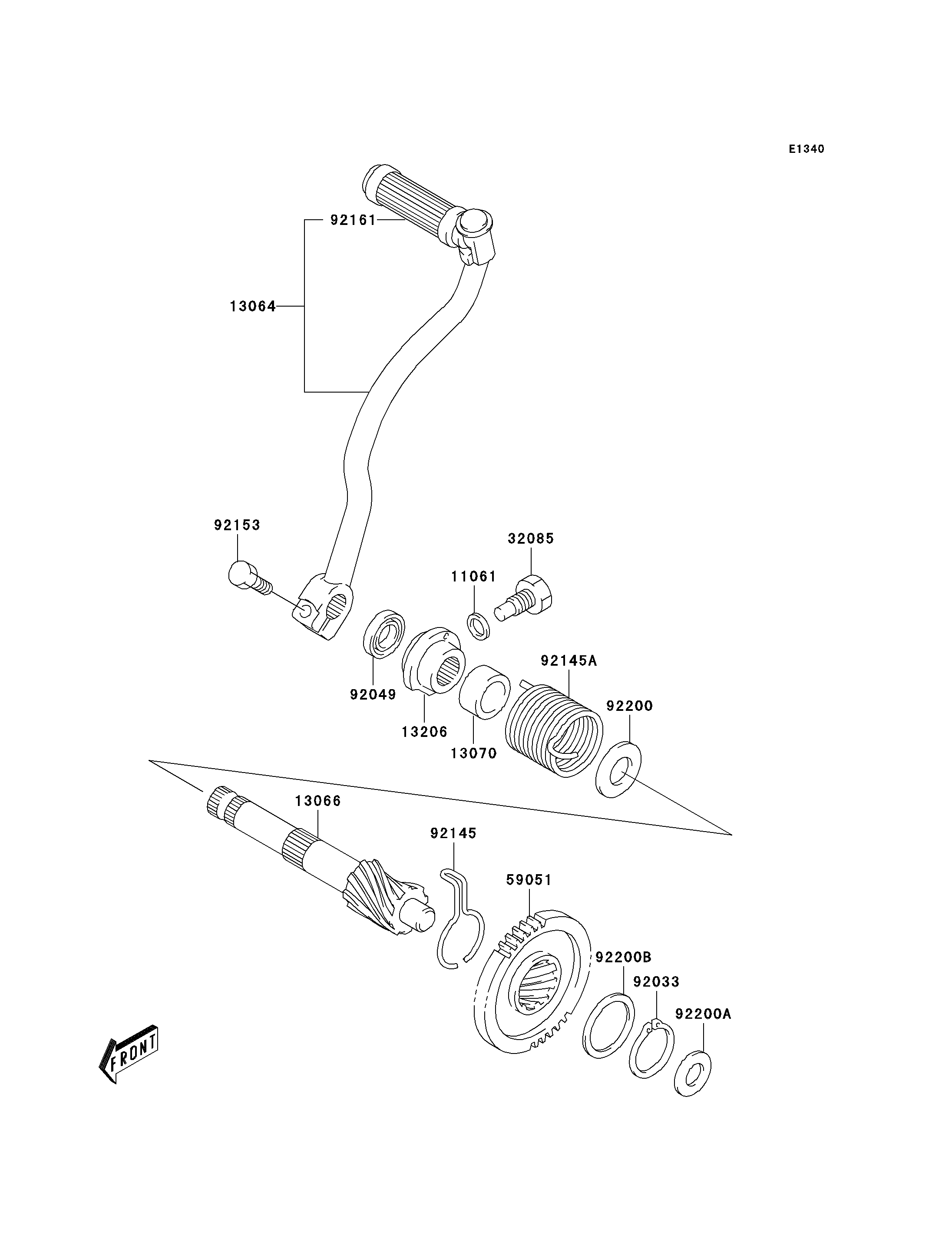

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10X14X3.6 | 11061 | 11061-S021 | 1 | ||
| LEVER-ASSY-KICK | 13064 | 13064-S003 | 1 | ||
| SHAFT-KICK | 13066 | 13066-S002 | 1 | ||
| GUIDE,KICK RETURN SPRING | 13070 | 13070-S016 | 1 | ||
| GUIDE-KICK | 13206 | 13206-S002 | 1 | ||
| STOPPER,KICK STARTER | 32085 | 32085-S014 | 1 | ||
| GEAR-SPUR | 59051 | 59051-S006 | 1 | ||
| RING-SNAP | 92033 | 92033-S045 | 1 | ||
| SEAL-OIL,STARTER SHAFT | 92049 | 92049-S056 | 1 | ||
| SPRING | 92145 | 92145-S110 | 1 | ||
| SPRING,KICK STARTER | 92145A | 92145-S117 | 1 | ||
| BOLT | 92153 | 92153-S127 | 1 | ||
| DAMPER,KICK STARTER PEDAL | 92161 | 92161-S109 | 1 | ||
| WASHER,16X30X1 | 92200 | 92200-S073 | 1 | ||
| WASHER,GEAR SHIFT SHAFT | 92200A | 92200-S170 | 1 | ||
| WASHER,25X32X1 | 92200B | 92200-S172 | 1 |
| GASKET,10X14X3.6 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK RETURN SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICK STARTER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,STARTER SHAFT | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK STARTER | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,KICK STARTER PEDAL | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16X30X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,GEAR SHIFT SHAFT | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25X32X1 | |
| REF # | 92200B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
