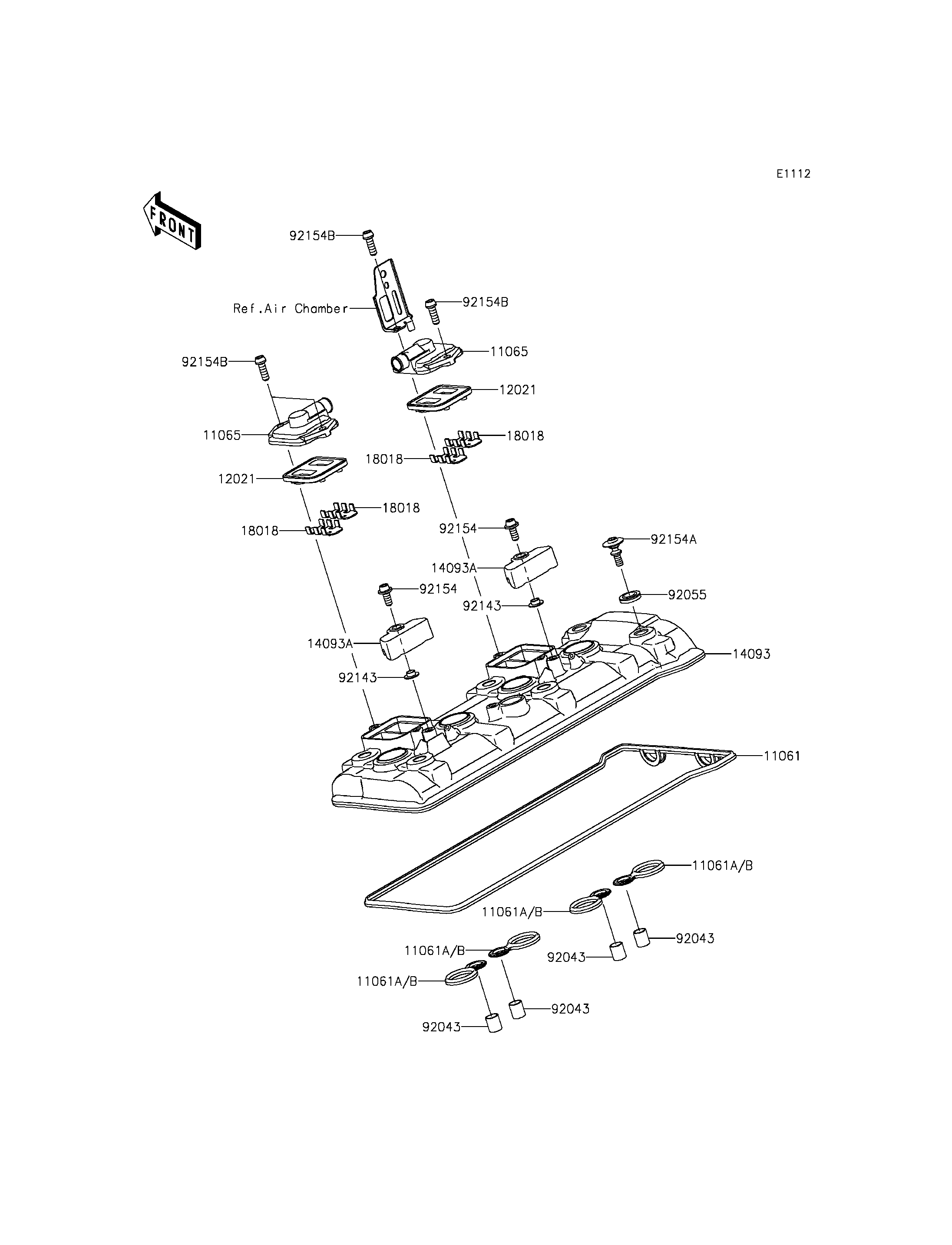

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11061
11061B
11061B
11061B
11061B
11065
11065
12021
12021
14093
14093A
14093A
18018
18018
18018
18018
92043
92043
92043
92043
92055
92143
92143
92154
92154
92154A
92154B
92154B
92154B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,HEAD COVER | 11061 | 11061-0979 | 1 | ||
| GASKET,PLUG HOLE | 11061B | 11061-1185 | 4 | ||
| CAP,ASV | 11065 | 11065-0869 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-0021 | 2 | ||
| COVER,HEAD | 14093 | 14093-0092 | 1 | ||
| COVER | 14093A | 14093-0291 | 2 | ||
| PLATE-HEAT GUARD | 18018 | 18018-0591 | 4 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O | 92055 | 92055-0820 | 6 | ||
| COLLAR | 92143 | 92143-1331 | 2 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-1460 | 2 | ||
| BOLT | 92154A | 92154-1468 | 6 | ||
| BOLT,SOCKET,6X18 | 92154B | 92154-1498 | 4 |
