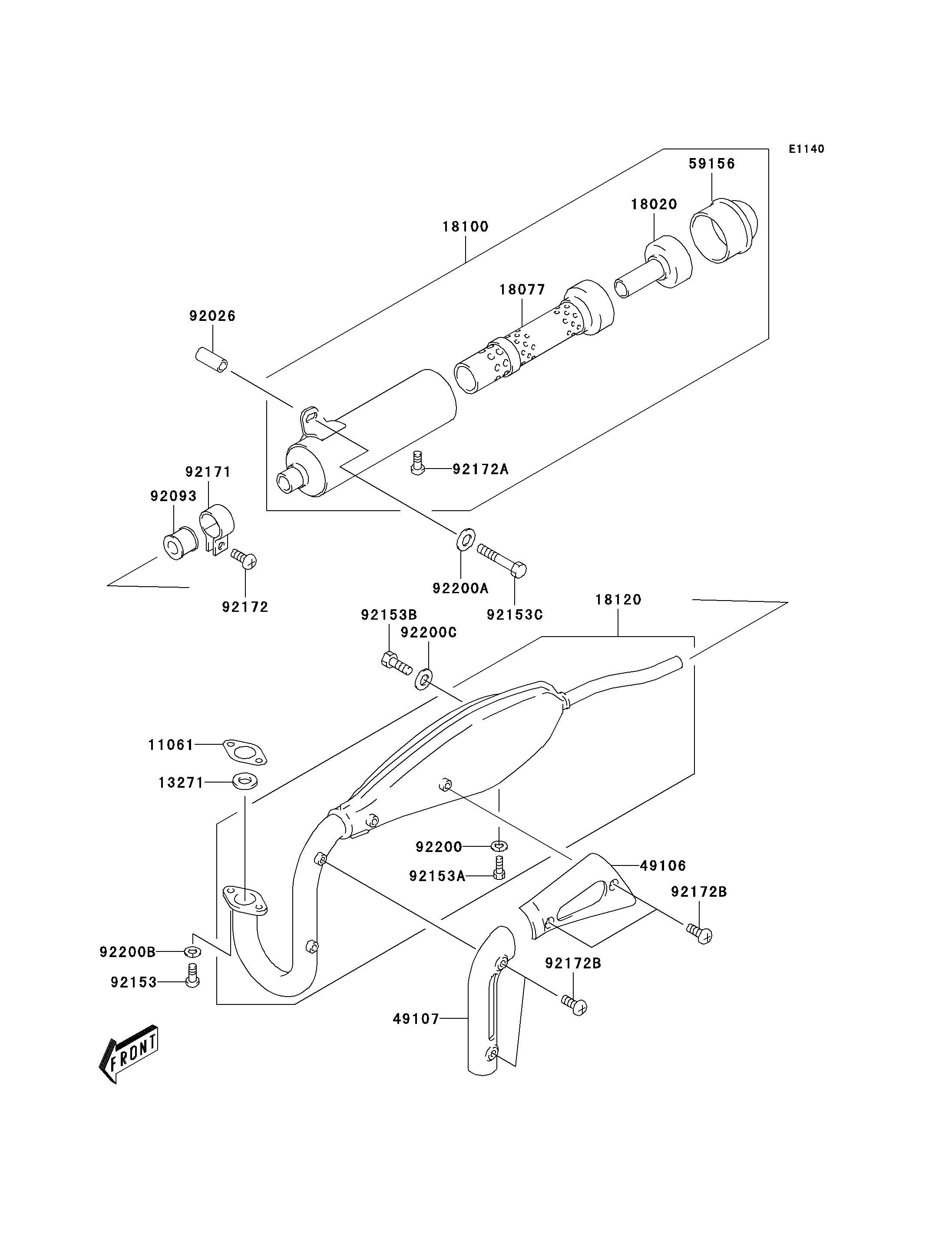

2006 KDX50 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
13271
18020
18077
18100
18120
49106
49107
59156
92026
92093
92153
92153A
92153B
92153C
92171
92172
92172A
92172B
92172B
92200
92200A
92200B
92200C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11061 11061-S081 1
PLATE,EXHAUST PIPE 13271 13271-S027 1
BAFFLE 18020 18020-S002 1
ARRESTER-SPARK 18077 18077-S001 1
BODY-ASSY-MUFFLER 18100 18100-S003 1
CHAMBER-EXHAUST 18120 18120-S001 1
COVER-MUFFLER 49106 49106-S005 1
COVER-EXHAUST PIPE 49107 49107-S005 1
PIPE-TAIL 59156 59156-S002 1
SPACER 92026 92026-S108 1
SEAL,MUFFLER 92093 92093-S042 1
BOLT 92153 92153-S024 2
BOLT 92153A 92153-S125 1
BOLT 92153B 92153-S314 1
BOLT 92153C 92153-S315 1
CLAMP,CONNECTOR 92171 92171-S105 1
SCREW 92172 92172-S008 1
SCREW,STARTER 92172A 92172-S128 2
SCREW,5X6 92172B 92172-S288 4
WASHER 92200 92200-S003 1
WASHER 92200A 92200-S028 1
WASHER 92200B 92200-S102 2
WASHER 92200C 92200-S169 1
