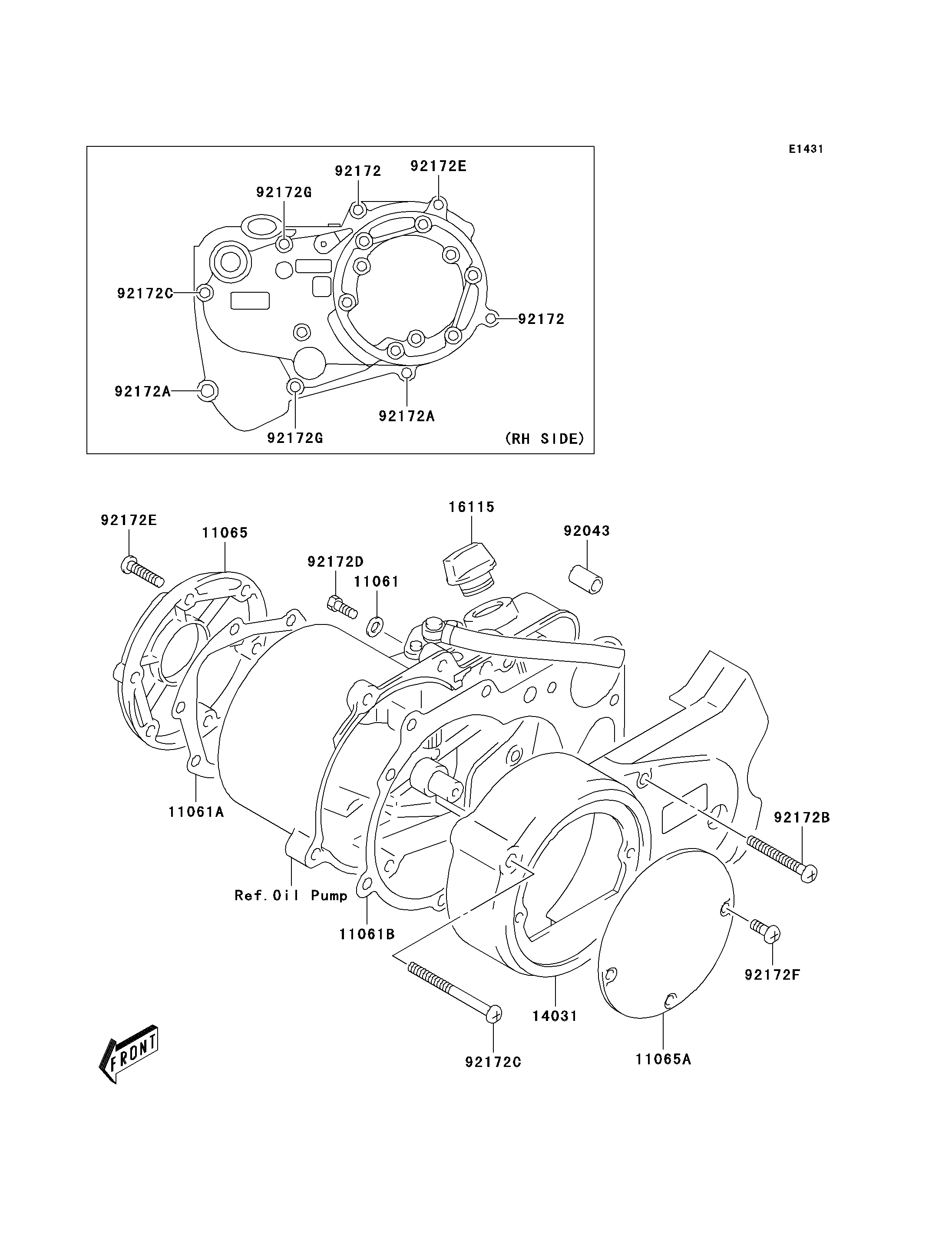

2005 KDX50 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
11065
11065A
14031
16115
92043
92172
92172
92172A
92172A
92172B
92172C
92172C
92172D
92172E
92172E
92172F
92172G
92172G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-S045 1
GASKET,RELEASE CAP 11061A 11061-S078 1
GASKET,CLUTCH COVER 11061B 11061-S079 1
CAP,CLUTCH RELEASE ADJUST 11065 11065-S042 1
CAP,MAGNETO INSPECTION 11065A 11065-S045 1
COVER-GENERATOR 14031 14031-S007 1
CAP-OIL FILLER 16115 16115-S004 1
PIN,CLUTCH COVER 92043 92043-S026 2
SCREW 92172 92172-S090 2
SCREW 92172A 92172-S117 2
SCREW 92172B 92172-S118 2
SCREW 92172C 92172-S122 2
SCREW,OIL LEVEL 92172D 92172-S123 1
SCREW 92172E 92172-S150 7
SCREW 92172F 92172-S180 2
SCREW 92172G 92172-S185 2
