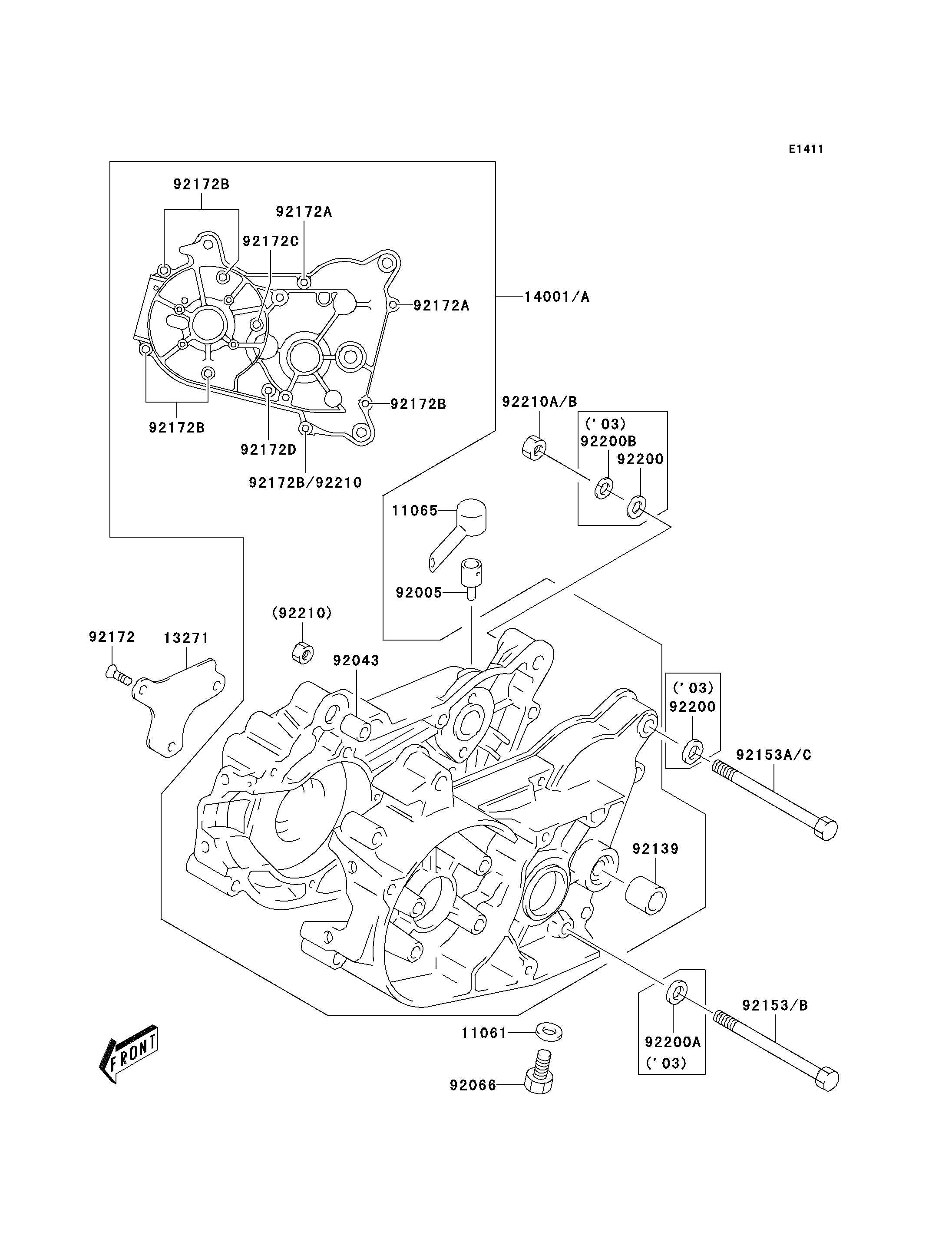

2005 KDX50 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11065
13271
14001A
92005
92043
92066
92139
92153B
92153C
92172
92172A
92172A
92172B
92172B
92172B
92172B
92172C
92172D
92210
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14X3.6 11061 11061-S021 1
CAP,BREATHER PLUG 11065 11065-S041 1
PLATE,OIL RESERVOIR 13271 13271-S025 1
SET-CRANKCASE 14001A 14001-S009 1
FITTING,BREATHER 92005 92005-S005 1
PIN,CRANKCASE 92043 92043-S024 2
PLUG,OIL DRAIN 92066 92066-S036 1
BUSHING,COUNTER SHAFT 92139 92139-S009 1
BOLT 92153B 92153-S400 1
BOLT 92153C 92153-S401 2
SCREW 92172 92172-S098 3
SCREW,CRANKCASE 92172A 92172-S117 2
SCREW,CRANKCASE 92172B 92172-S118 6
SCREW,CRANKCASE 92172C 92172-S119 1
SCREW,CRANKCASE 92172D 92172-S120 1
NUT 92210 92210-S001 1
NUT 92210B 92210-S094 3
