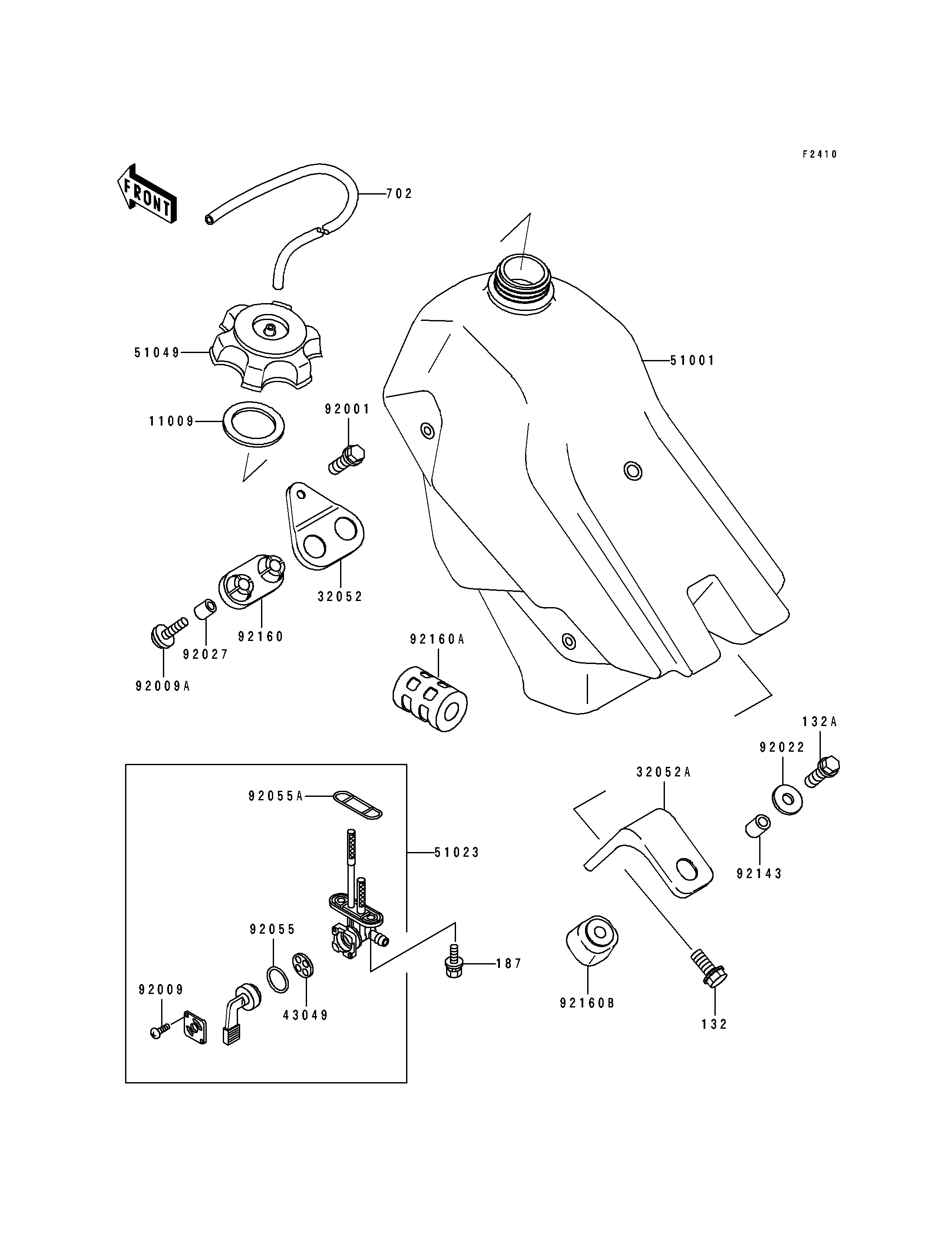

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TANK CAP | 11009 | 11009-1622 | 1 | ||
| BRACKET-TANK,FUEL,FR,L.GREEN | 32052 | 32052-1317-CC | 1 | ||
| BRACKET-TANK,FUEL,RR,L.GREEN | 32052A | 32052-1318-CC | 1 | ||
| PACKING,FUEL TAP LEVER | 43049 | 43049-1017 | 1 | ||
| TANK-COMP-FUEL,L.GREEN | 51001 | 51001-1344-6W | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1178 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1089 | 1 | ||
| BOLT,8X16 | 92001 | 92001-1897 | 1 | ||
| SCREW,3X5 | 92009 | 92009-1123 | 2 | ||
| SCREW,6X22 | 92009A | 92009-1441 | 2 | ||
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 1 | ||
| COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
| RING-O,FUEL TAP LEVER | 92055 | 92055-1111 | 1 | ||
| RING-O,FUEL TAP PACKING | 92055A | 92055-1348 | 1 | ||
| COLLAR,6.8X10X24.5 | 92143 | 92143-1459 | 1 | ||
| DAMPER,FUEL TANK,FR | 92160 | 92160-1252 | 1 | ||
| DAMPER,FUEL TANK | 92160A | 92160-1253 | 2 | ||
| DAMPER,FUEL TANK,RR | 92160B | 92160-1254 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 3 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0635 | 1 | ||
| BOLT-UPSET-WSP | 187 | 187B0616 | 2 | ||
| TUBE-RUBBER,5X350 | 702 | 702A05350 | 1 |
