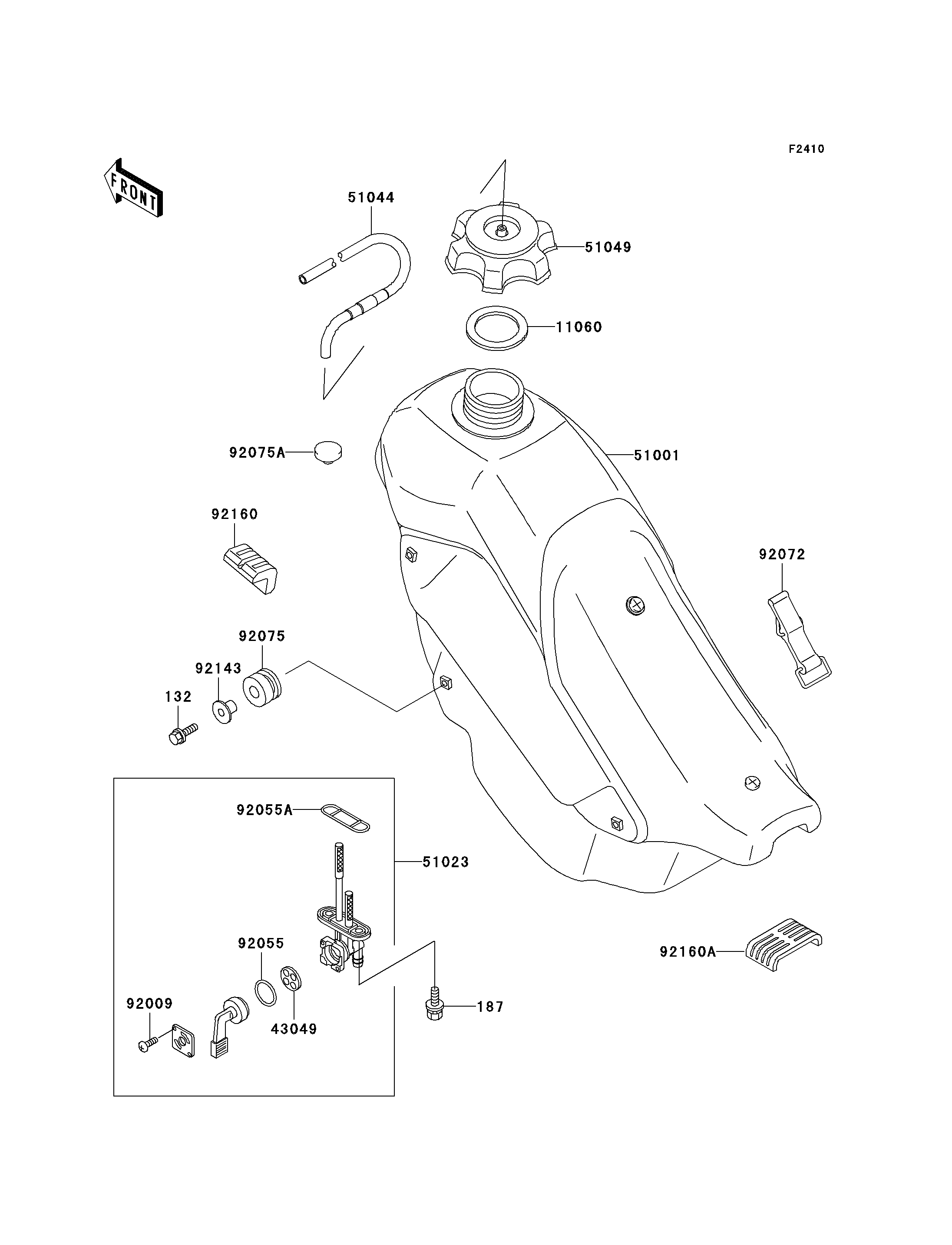

2002 KDX220R - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
132
187
11060
43049
51001
51023
51044
51049
92009
92055
92055A
92072
92075
92075A
92143
92160
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0620 2
BOLT-UPSET-WSP 187 187B0616 2
GASKET,FUEL TANK CAP 11060 11060-1340 1
PACKING,FUEL TAP LEVER 43049 43049-1017 1
TANK-COMP-FUEL,L.GREEN 51001 51001-1668-6W 1
TAP-ASSY,FUEL 51023 51023-1214 1
TUBE-ASSY 51044 51044-1185 1
CAP-TANK,FUEL 51049 51049-1108 1
SCREW,3X5 92009 92009-1123 2
RING-O,FUEL TAP LEVER 92055 92055-1111 1
RING-O,FUEL TAP PACKING 92055A 92055-1348 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-281 1
COLLAR 92143 92143-1353 2
DAMPER,FUEL TANK 92160 92160-1328 4
DAMPER,FUEL TANK,RR 92160A 92160-1397 1
