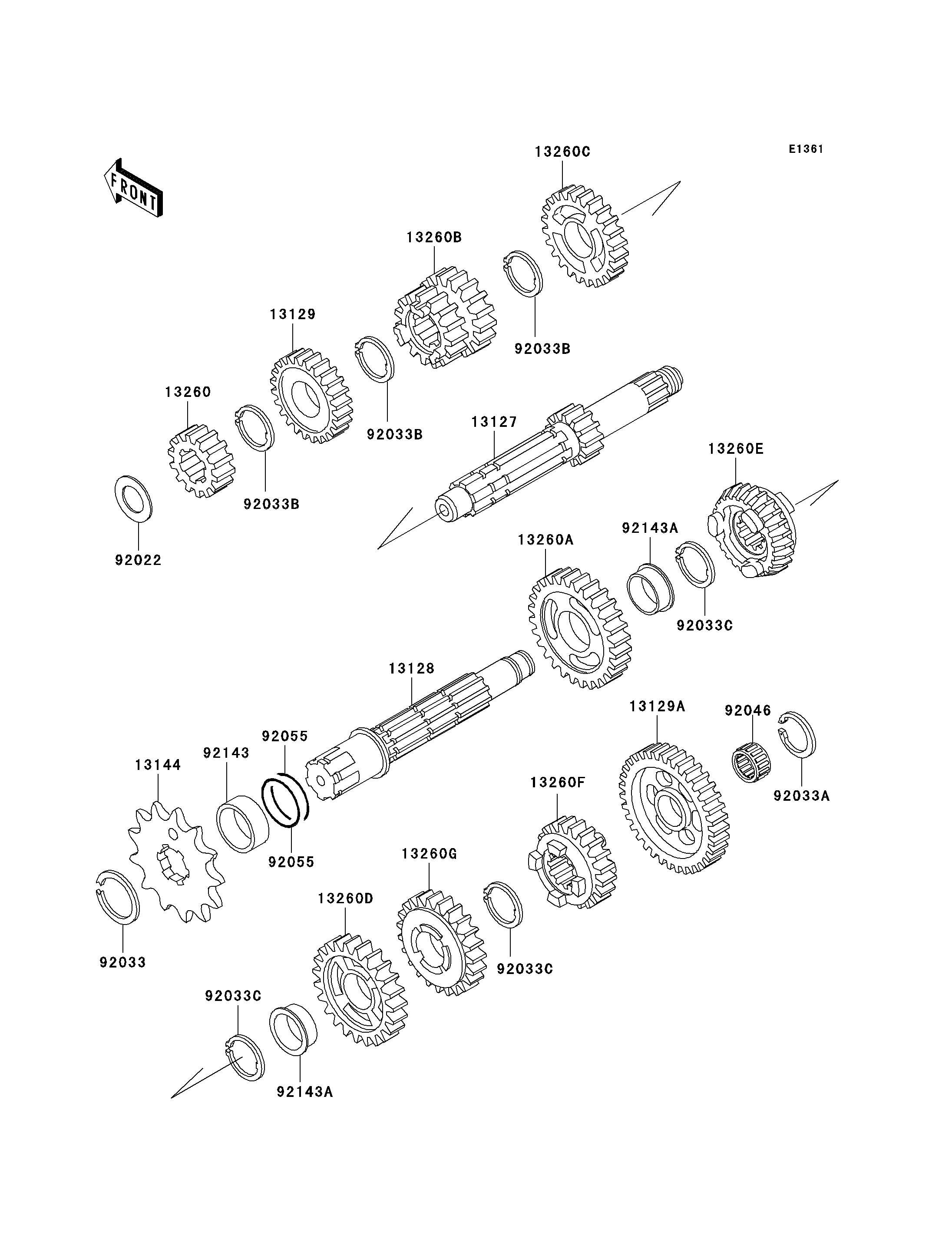

2002 KDX220R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13129
13129A
13144
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
92022
92033
92033A
92033B
92033B
92033B
92033C
92033C
92033C
92046
92055
92055
92143
92143A
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,13T 13127 13127-1237 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1164 1
GEAR,INPUT 5TH,24T 13129 13129-1753 1
GEAR,OUTPUT LOW,35T 13129A 13129-1755 1
SPROCKET-OUTPUT,13T 13144 13144-1027 1
GEAR,INPUT 2ND,14T 13260 13260-1003 1
GEAR,OUTPUT 2ND,28T 13260A 13260-1004 1
GEAR,INPUT 3RD&4TH,15T&17T 13260B 13260-1006 1
GEAR,INPUT TOP,23T 13260C 13260-1425 1
GEAR,OUTPUT 3RD,23T 13260D 13260-1426 1
GEAR,OUTPUT 5TH,25T 13260E 13260-1427 1
GEAR,OUTPUT TOP,20T 13260F 13260-1489 1
GEAR,OUTPUT 4TH,21T 13260G 13260-1567 1
WASHER,THRUST,16.5X28X1 92022 92022-170 1
RING-SNAP,24MM 92033 92033-026 1
RING-SNAP 92033A 92033-032 1
RING-SNAP,20MM 92033B 92033-1231 3
RING-SNAP,20MM 92033C 92033-1258 3
BEARING-NEEDLE,K17X23X13.8X 92046 92046-1059 1
RING-O 92055 92055-035 2
COLLAR 92143 92143-1433 1
COLLAR 92143A 92143-1472 2
