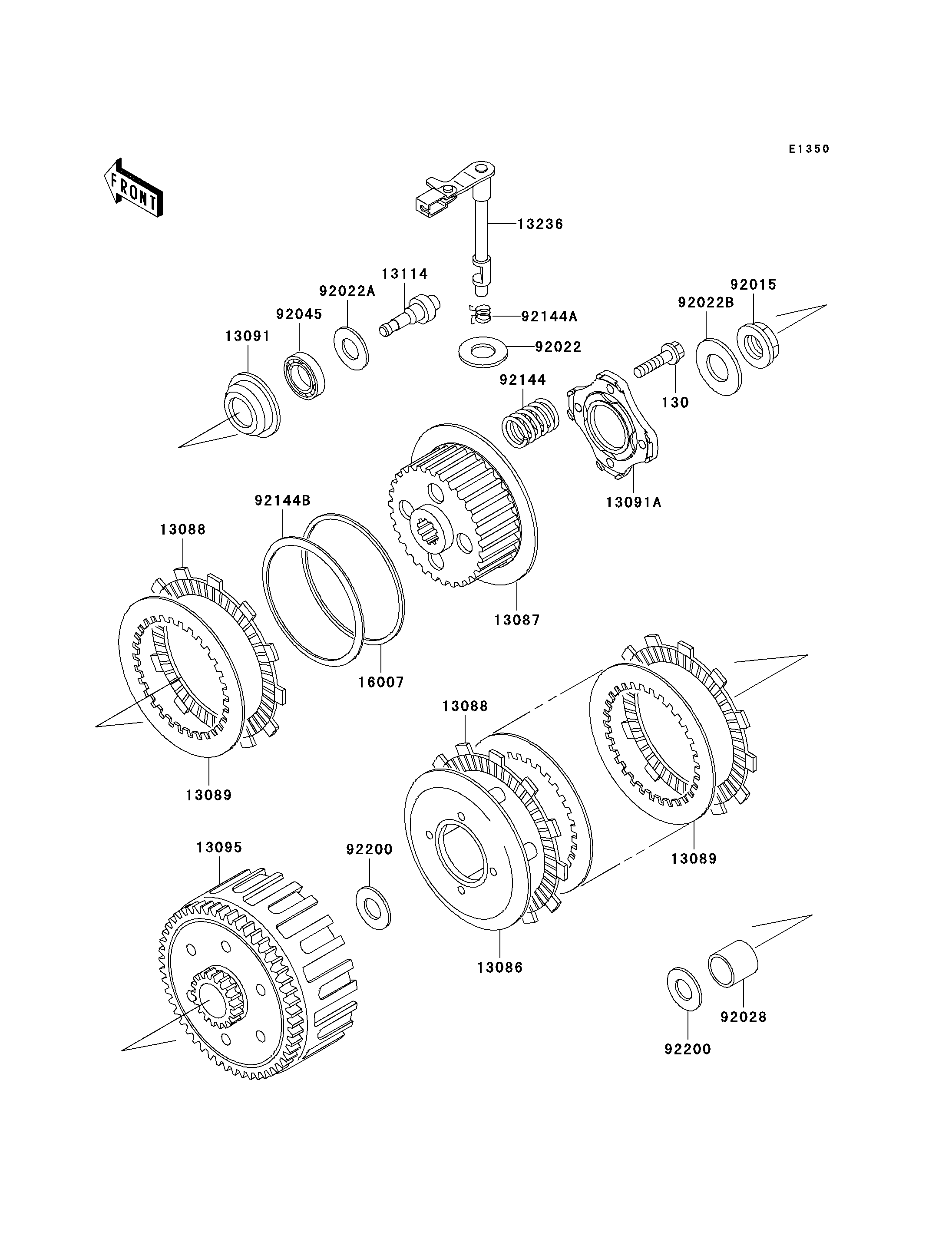

2002 KDX220R - Clutch

DOWNLOAD PDF
SELECT A NEW PART
130
13086
13087
13088
13088
13089
13089
13091
13091A
13095
13114
13236
16007
92015
92022
92022A
92022B
92028
92045
92144
92144A
92144B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Y0625 4
WHEEL-CLUTCH 13086 13086-1069 1
HUB-CLUTCH 13087 13087-1158 1
PLATE-FRICTION 13088 13088-1085 8
PLATE-CLUTCH 13089 13089-1076 7
HOLDER,CLUTCH PUSHER 13091 13091-1712 1
HOLDER,CLUTCH SPRING 13091A 13091-1872 1
HOUSING-COMP-CLUTCH 13095 13095-1287 1
PUSHER-CLUTCH 13114 13114-1067 1
LEVER-COMP,CLUTCH RELEASE 13236 13236-1264 1
SEAT-SPRING 16007 16007-1162 1
NUT,16MM 92015 92015-1581 1
WASHER,12.5X21X1.2 92022 92022-072 1
WASHER,10.2X14.5X1.0 92022A 92022-1181 AR
WASHER,16.3X29X1.75 92022B 92022-1356 1
BUSHING,20X25X26.85 92028 92028-1388 1
BEARING-BALL,6000 92045 92045-1225 1
SPRING,CLUTCH 92144 92144-1160 4
SPRING,CLUTCH RELEASE 92144A 92144-1287 1
SPRING 92144B 92144-1522 1
WASHER,20.3X30X2.3 92200 92200-1238 2
