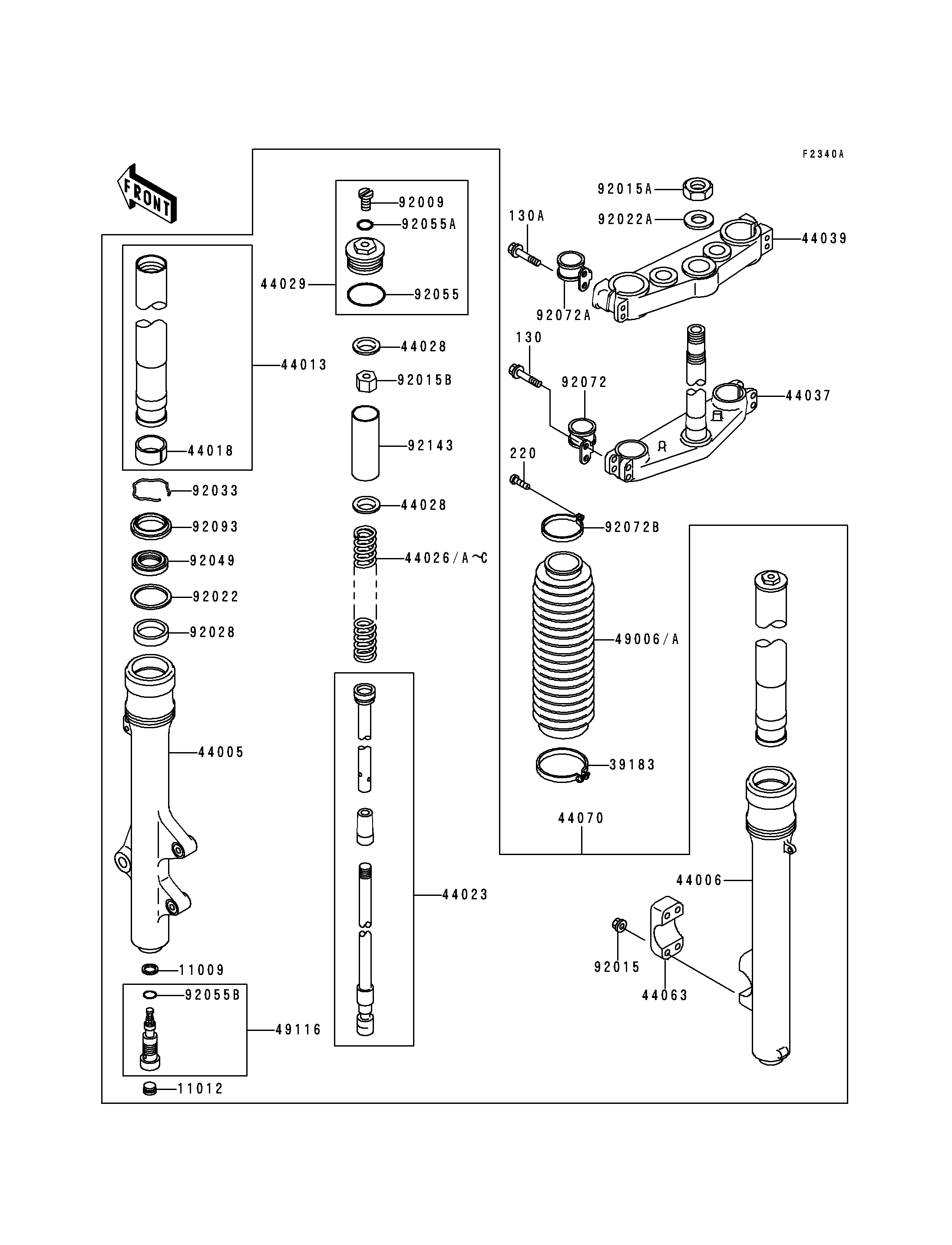

1999 KDX200 - Front Fork(KDX200-H4/H5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP,FORK CYLINDER 11012 11012-1381 2
BAND-ASSY,BOOT 39183 39183-1060 2
PIPE-LEFT FORK OUTER 44005 44005-1345 1
PIPE-RIGHT FORK OUTER 44006 44006-1343 1
PIPE-FORK INNER 44013 44013-1403 2
PISTON-FORK,INNER PIPE 44018 44018-1056 2
CYLINDER-COMP-FORK 44023 44023-1109 2
SPRING-FRONT FORK,K=0.34 44026 44026-1574 2 (OPTION)
SPRING-FRONT FORK,K=0.36 44026A 44026-1575 2 (OPTION)
SPRING-FRONT FORK,K=0.37 44026B 44026-1576 2 (OPTION)
SPRING-FRONT FORK,K=0.35 44026C 44026-1638 2
GUIDE-FORK SPRING 44028 44028-1010 4
SEAT-FORK SPRING 44029 44029-1152 2
HOLDER-FORK UNDER 44037 44037-1369 1
HOLDER-FORK UPPER 44039 44039-1256 1
HOLDER-FRONT AXLE 44063 44063-1056 1
DAMPER-ASSY,FORK SET 44070 44070-1576 1
BOOT,FORK,BLACK 49006 49006-1296-BD 2
VALVE-ASSY,FORK 49116 49116-1132 2
SCREW 92009 92009-1568 2
NUT,FLANGED,6MM 92015 92015-1078 4
NUT,STEERING STEM,22MM 92015A 92015-1653 1
NUT 92015B 92015-1839 2
WASHER 92022 92022-1299 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1581 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1316 2
RING-O 92055 92055-1123 2
RING-O 92055A 92055-1441 2
RING-O,FORK VALVE 92055B 92055-1502 2
BAND,CABLE 92072 92072-1166 1
BAND 92072A 92072-1268 1
BAND,BOOT 92072B 92072-1316 2
SEAL,FORK DUST 92093 92093-1260 2
BOLT-FLANGED,8X45 130 130G0845 4
BOLT-FLANGED,8X50 130A 130G0850 4
SCREW-PAN-CROS 220 220B0416 2
COLLAR,FORK,L=90 92143 92143-1645 2
