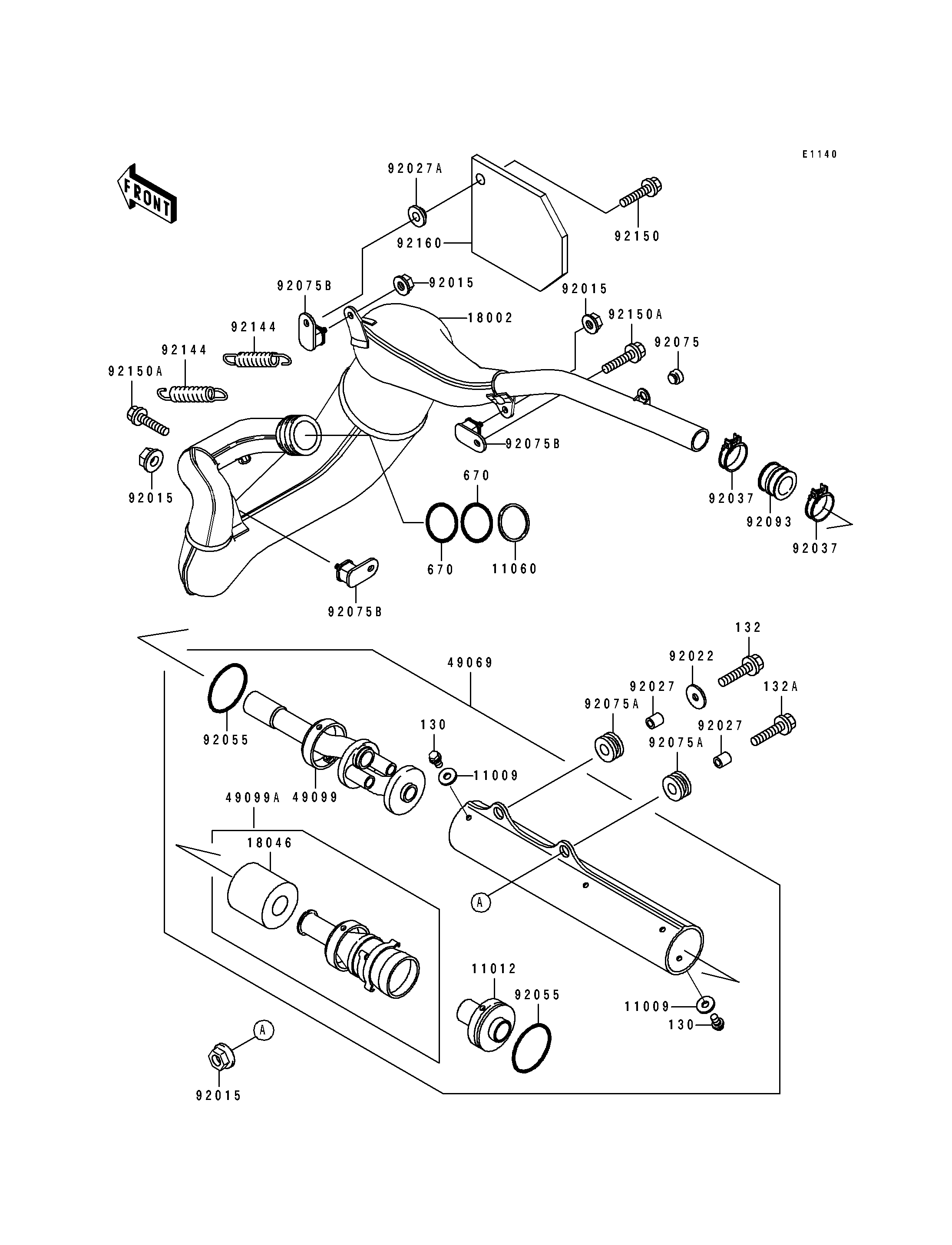

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER | 11009 | 11009-1818 | 6 | ||
| CAP,TAIL PIPE | 11012 | 11012-1680 | 1 | ||
| GASKET,EXHAUST PIPE | 11060 | 11009-1995 | 1 | ||
| BODY-COMP-MUFFLER | 18002 | 18002-1933 | 1 | ||
| WOOL | 18046 | 18046-1098 | 1 | ||
| MUFFLER-ASSY | 49069 | 49069-1101 | 1 | ||
| BAFFLE-PIPE MUFFLER,FR | 49099 | 49099-1263 | 1 | ||
| BAFFLE-PIPE MUFFLER,RR | 49099A | 49099-1264 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1078 | 4 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 1 | ||
| COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
| COLLAR,L=5.6 | 92027A | 92027-1933 | 1 | ||
| CLAMP,40MM | 92037 | 92037-1129 | 2 | ||
| RING-O,61.6X3.5 | 92055 | 92055-1431 | 2 | ||
| DAMPER | 92075 | 92075-1598 | 2 | ||
| DAMPER,MUFFLER FITTING | 92075A | 92075-1857 | 2 | ||
| DAMPER,MUFFLER | 92075B | 92075-1891 | 3 | ||
| SEAL,MUFFLER | 92093 | 92093-1085 | 1 | ||
| SPRING | 92144 | 92144-1035 | 2 | ||
| BOLT,6X20 | 92150 | 92150-1339 | 1 | ||
| BOLT,6X14 | 92150A | 92150-1340 | 2 | ||
| DAMPER,HEAT | 92160 | 92160-1145 | 1 | ||
| BOLT-FLANGED | 130 | 130G0508 | 6 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0630 | 1 | ||
| O RING,39MM | 670 | 670E3039 | 2 |
