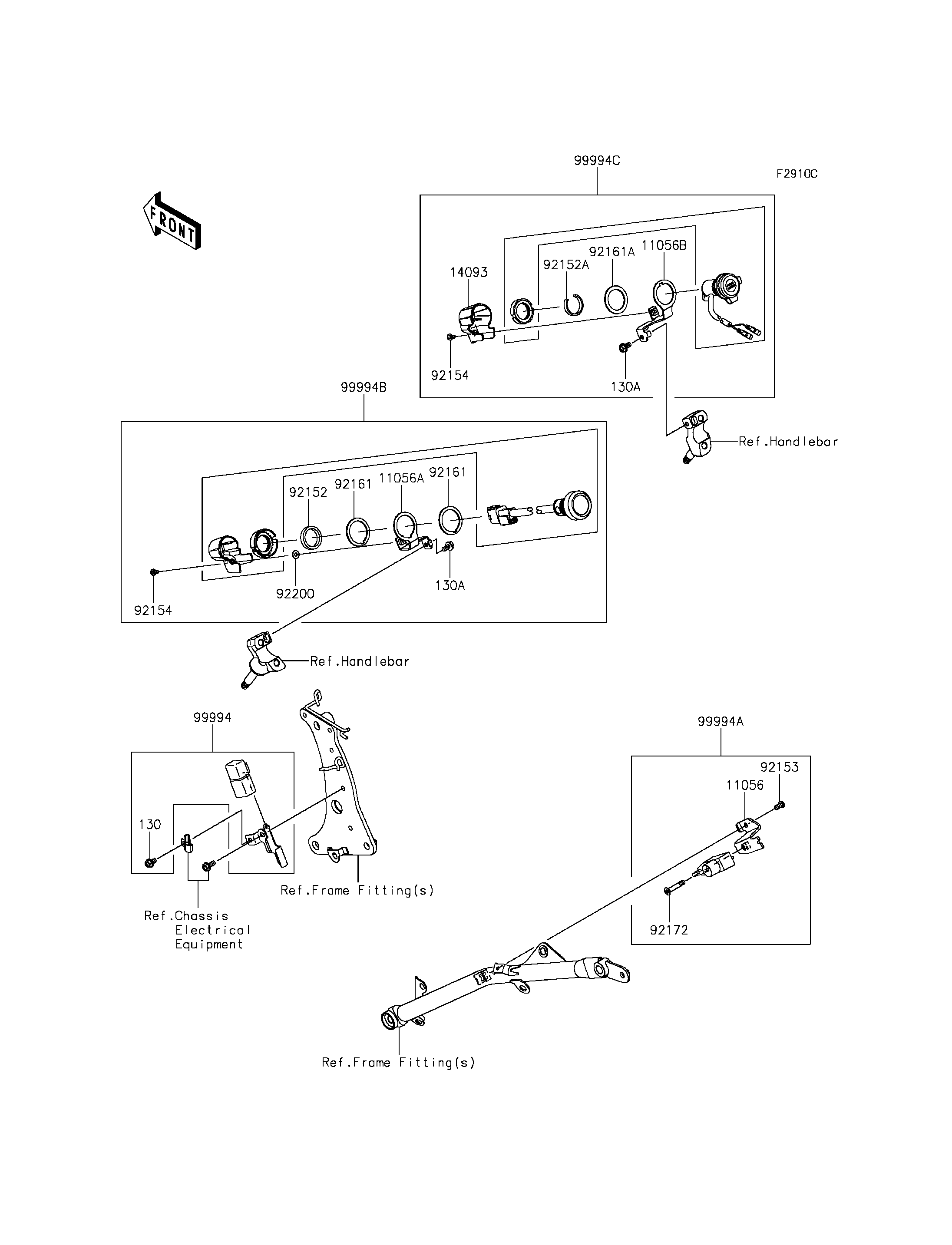

2015 Vulcan® S - Accessory(Helmet Lock etc.)
130
130A
130A
11056
11056A
11056B
14093
92152
92152A
92153
92154
92154
92161
92161
92161A
92172
92200
99994
99994A
99994B
99994C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X10 | 130 | 130AA0610 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130BB0612 | 2 | ||
| BRACKET,HELMET LOCK | 11056 | 11056-7089 | 1 | ||
| BRACKET,GEAR POSITION | 11056A | 11056-7104 | 1 | ||
| BRACKET | 11056B | 11056-7538 | 1 | ||
| COVER,SOCKET | 14093 | 14093-0212 | 1 | ||
| COLLAR | 92152 | 92152-2122 | 1 | ||
| COLLAR | 92152A | 92152-2135 | 1 | ||
| BOLT,6X12 | 92153 | 92153-0906 | 1 | ||
| BOLT,SOCKET,5X10 | 92154 | 92154-1292 | 2 | ||
| DAMPER | 92161 | 92161-1738 | 2 | ||
| DAMPER | 92161A | 92161-1789 | 1 | ||
| SCREW,HEXLOBE,6X35 | 92172 | 92172-0835 | 1 | ||
| WASHER,NYLON,5.2X12X1 | 92200 | 92200-1011 | 1 | ||
| KIT-ACCESSORY,RELAY | 99994 | 99994-0510 | 1 | ||
| KIT-ACCESSORY,LOCK-HELMET | 99994A | 99994-0538 | 1 | ||
| KIT-ACCESSORY,GEAR-POSITION | 99994B | 99994-0540 | 1 | ||
| KIT-ACCESSORY,DC SOCKET | 99994C | 99994-0541 | 1 |
