Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

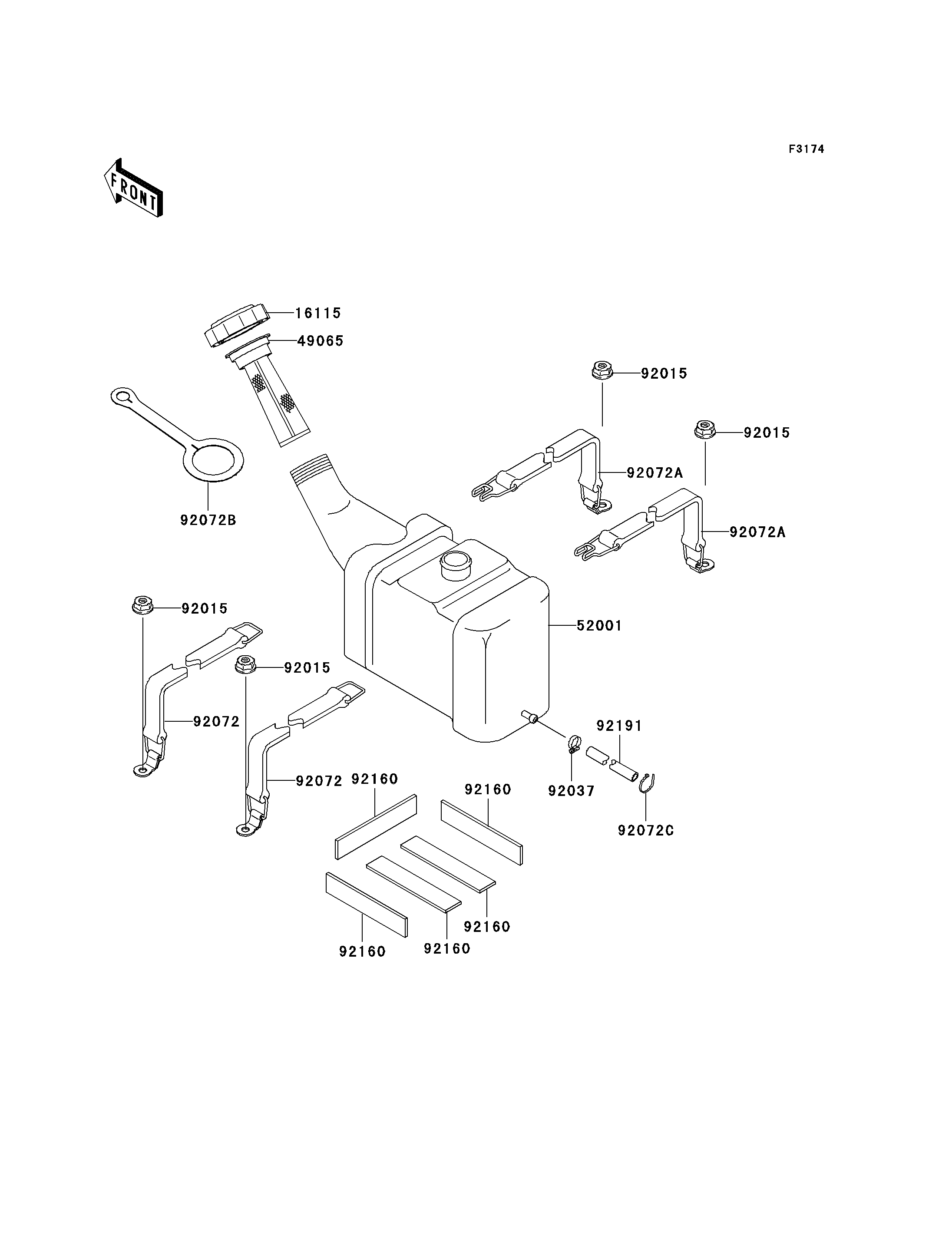

16115
49065
52001
92015
92015
92015
92015
92037
92072
92072
92072A
92072A
92072B
92072C
92160
92160
92160
92160
92160
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP-OIL FILLER | 16115 | 16115-3720 | 1 | ||
| FILTER-OIL | 49065 | 49065-3703 | 1 | ||
| TANK-OIL | 52001 | 52001-3728 | 1 | ||
| NUT,6MM | 92015 | 92015-3767 | 4 | ||
| CLAMP | 92037 | 92037-3726 | 1 | ||
| BAND,OIL TANK | 92072 | 92072-3812 | 2 | ||
| BAND,OIL TANK | 92072A | 92072-3815 | 2 | ||
| BAND | 92072B | 92072-3839 | 1 | ||
| BAND,L=99 | 92072C | 92072-3871 | 1 | ||
| DAMPER | 92160 | 92160-3793 | 5 | ||
| TUBE,OIL | 92191 | 92191-3818 | 1 |
