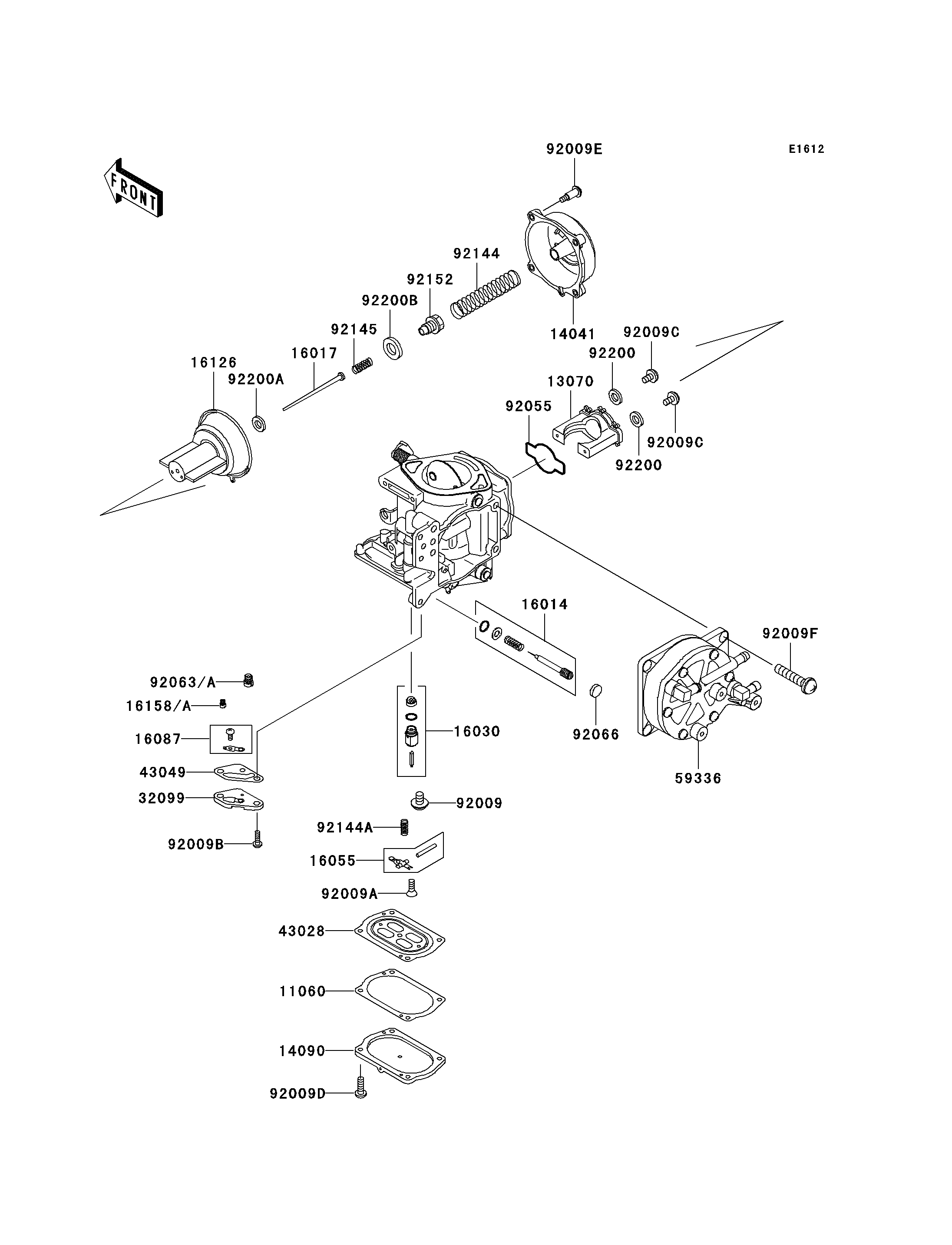

2006 900 STX - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
11060
13070
14041
14090
16014
16017
16030
16055
16087
16126
16158
16158A
32099
43028
43049
59336
92009
92009A
92009B
92009C
92009C
92009D
92009E
92009F
92055
92063
92063A
92066
92144
92144A
92145
92152
92200
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DIAPHRAGM COVER 11060 11060-3789 3
GUIDE,VACUUM VALVE 13070 13070-3726 3
COVER-COMP,MIXING 14041 14041-1100 3
COVER,DIAPHRAGM 14090 14090-3816 3
SCREW-PILOT AIR 16014 16014-3702 3
JET-NEEDLE,N7FC 16017 16017-3707 3
VALVE-FLOAT 16030 16030-3704 3
ARM-FLOAT 16055 16055-3702 3
VALVE-CHECK 16087 16087-3706 3
VALVE,VACUUM 16126 16126-3705 3
JET-SLOW,#35 16158 16158-3726 3 (OPTION)
JET-SLOW,#38 16158A 16158-3728 3
CASE,JET 32099 32099-3833 3
DIAPHRAGM,CARBURETOR 43028 43028-3711 3
PACKING,JET CASE 43049 43049-3713 3
CASE-PUMP,DIAPHRAGM 59336 59336-3718 1
SCREW 92009 92009-1771 3
SCREW,3X8 92009A 92009-3712 3
SCREW,4X8 92009B 92009-3804 6
SCREW,VALVE GUIDE 92009C 92009-3839 6
SCREW,DIAPHRAGM COVER 92009D 92009-3840 12
SCREW,MIXING COVER 92009E 92009-3841 12
SCREW,6X16 92009F 92009-3865 4
RING-O,VACUUM VALVE GUIDE 92055 92055-3749 3
JET-MAIN,#155 92063 92063-3723 3 (OPTION)
JET-MAIN,#165 92063A 92063-3725 3
PLUG,PILOT AIR SCREW 92066 92066-3769 3
SPRING,VACUUM VALVE 92144 92144-1962 3
SPRING,FLOAT ARM 92144A 92144-3764 3
SPRING,JET NEEDLE 92145 92145-3719 3
COLLAR,JET NEEDLE 92152 92152-3706 3
WASHER,VALVE GUIDE 92200 92200-3772 6
WASHER,JET NEEDLE 92200A 92200-3773 3
WASHER,JET NEEDLE COLLAR 92200B 92200-3774 3
