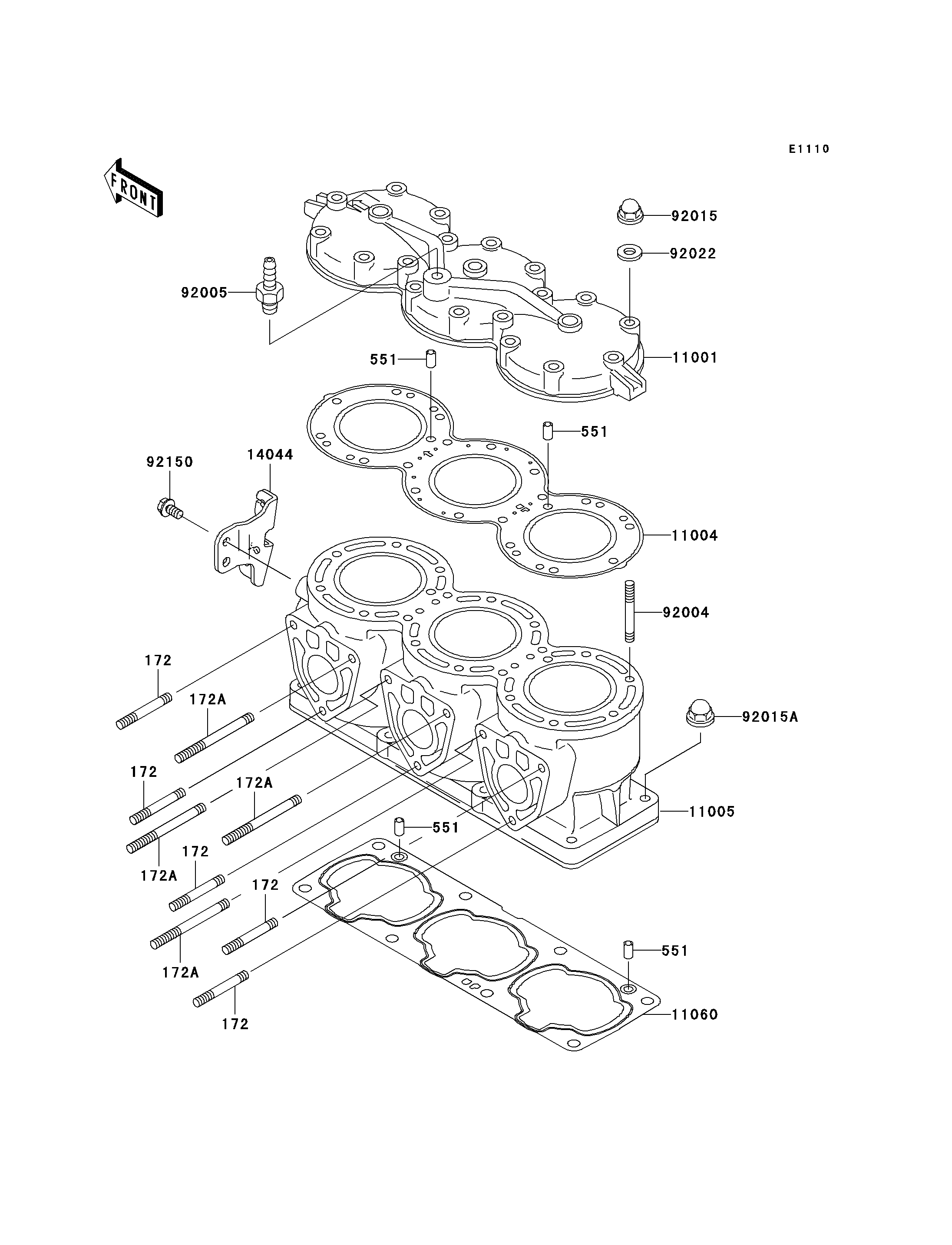

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
172
172
172
172
172
172A
172A
172A
172A
551
551
551
551
11001
11004
11005
11060
14044
92004
92005
92015
92015A
92022
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-STUD,8X30 | 172 | 172R0830 | 5 | ||
| BOLT-STUD,8X75 | 172A | 172R0875 | 4 | ||
| PIN-DOWEL | 551 | 551R0812 | 4 | ||
| HEAD-CYLINDER | 11001 | 11001-3737 | 1 | ||
| GASKET-HEAD | 11004 | 11004-3713 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-3750 | 1 | ||
| GASKET,CYLINDER BASE | 11060 | 11060-3752 | 1 | ||
| HOLDER-CABLE | 14044 | 14044-3747 | 1 | ||
| STUD,8X43 | 92004 | 92004-3715 | 18 | ||
| FITTING | 92005 | 92005-3714 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 18 | ||
| NUT,10MM | 92015A | 92015-1649 | 8 | ||
| WASHER,8.2X18X1.5 | 92022 | 92022-1964 | 18 | ||
| BOLT,8X16 | 92150 | 92150-3722 | 2 |
