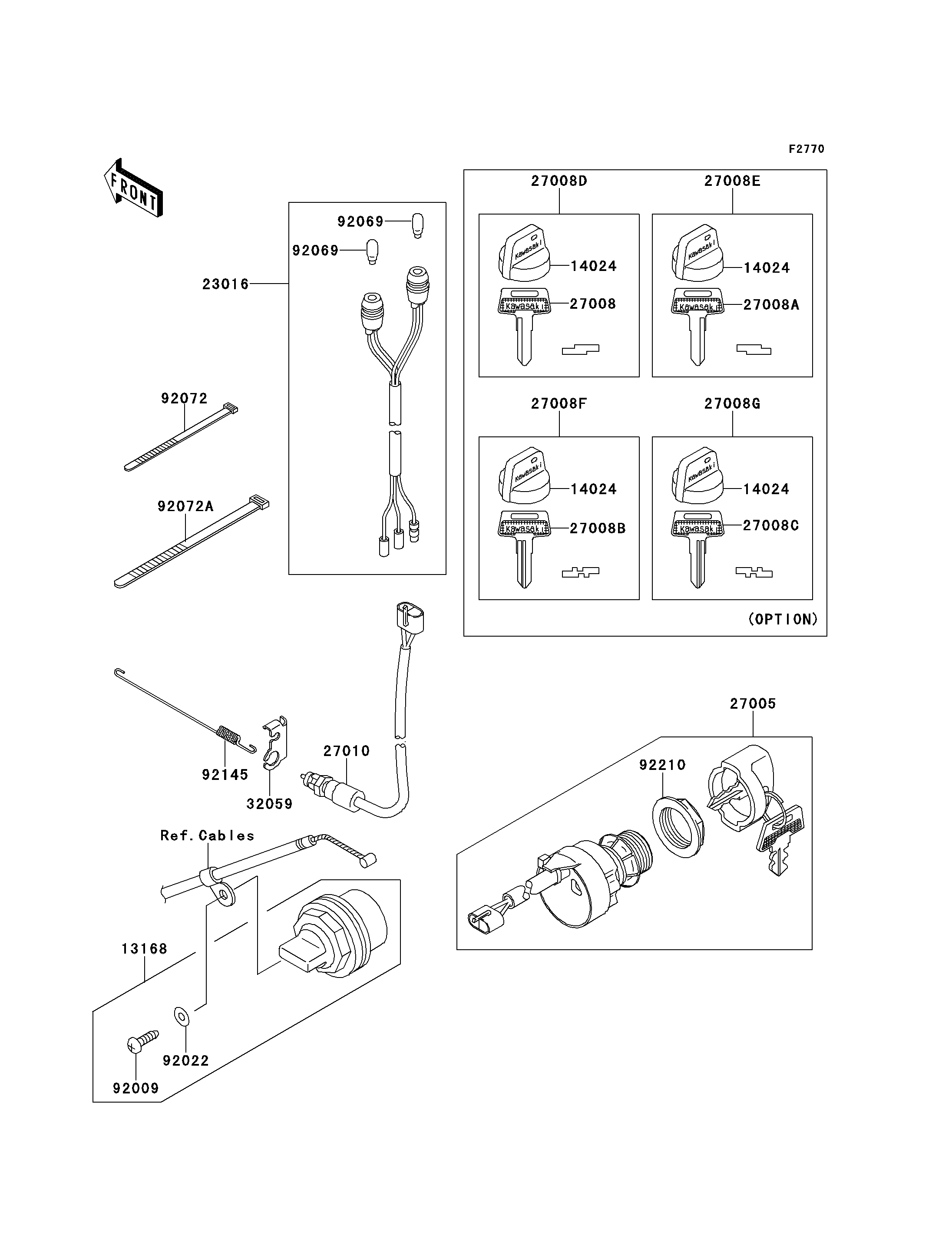

2007 Bayou 250 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
13168
14024
14024
14024
14024
23016
27005
27008
27008A
27008B
27008C
27008D
27008E
27008F
27008G
27010
32059
92009
92022
92069
92069
92072
92072A
92145
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,REVERSE LOCK 13168 13168-1760 1
COVER,KEY 14024 14024-1551 4 (OPTION)
LAMP-ASSY,NEUTRAL&REVERSE 23016 23016-1083 1
SWITCH-ASSY-IGNITION 27005 27005-0002 1
KEY-LOCK,BLANK 27008 27008-1041 1 (OPTION)
KEY-LOCK,BLANK 27008A 27008-1042 1 (OPTION)
KEY-LOCK,BLANK 27008B 27008-1043 1 (OPTION)
KEY-LOCK,BLANK 27008C 27008-1044 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008D 27008-1132 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008E 27008-1133 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008F 27008-1134 1 (OPTION)
KEY-LOCK,BLANK,W/COVER 27008G 27008-1135 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0008 1
BRACKET-SWITCH,REAR BRAKE 32059 32059-1106 1
SCREW,TAPPING,4X12 92009 92009-1533 1
WASHER,PLAIN,4MM 92022 92022-1947 1
BULB,12V 3W,T7 92069 92069-1020 2
BAND,L=149 92072 92072-031 1
BAND,L=188 92072A 92072-1239 2
SPRING,REAR BRAKE SWITCH 92145 92145-0061 1
NUT,IGNITION SWITCH 92210 92210-1109 1
