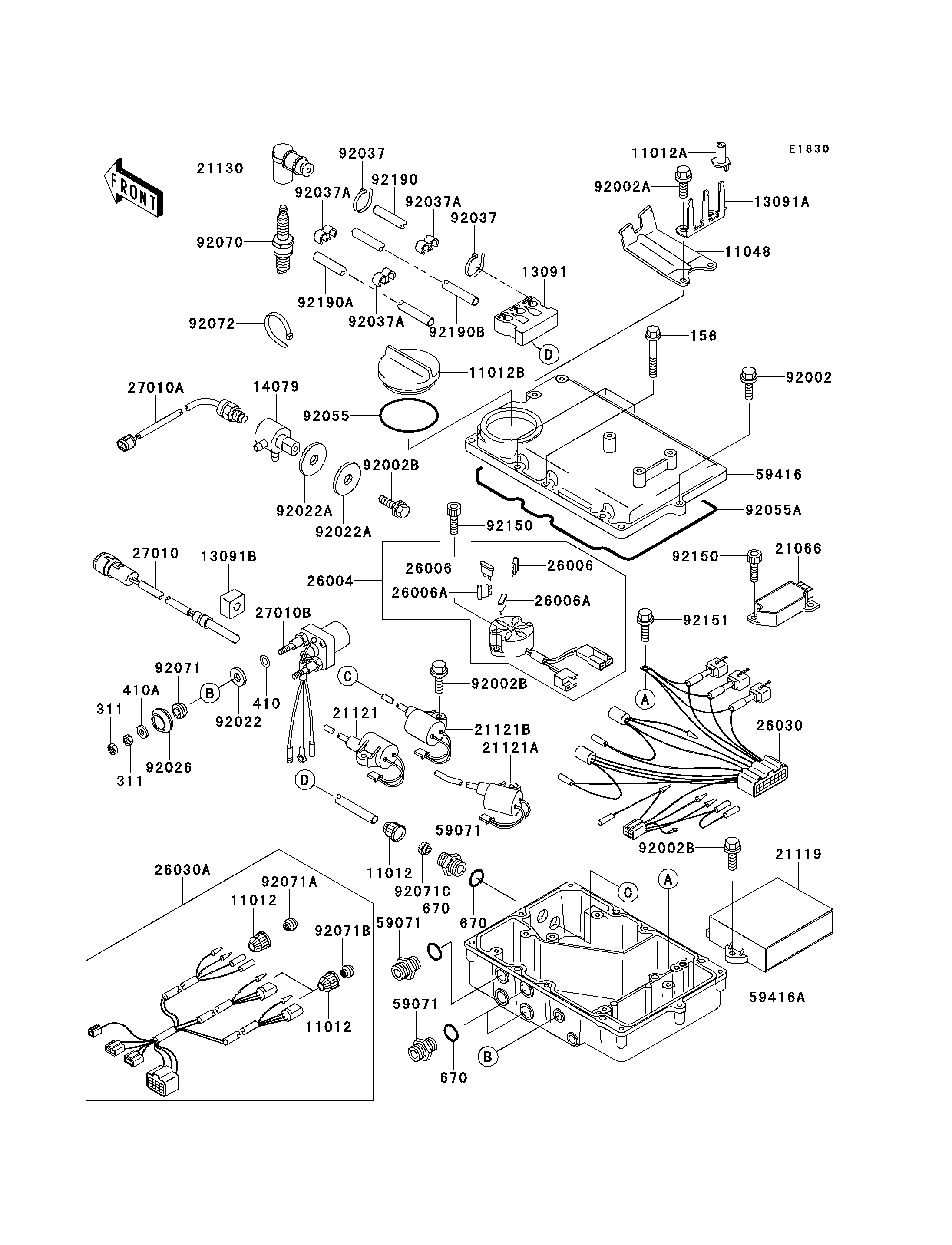

2000 900 STX - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11012A
11012A
11012B
11012B
11048
11048
13091
13091
13091A
13091A
13091B
13091B
14079
14079
21066
21066
21119
21119
21121
21121
21121A
21121A
21121B
21121B
21130
21130
26004
26004
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26030
26030
26030A
26030A
27010
27010
27010A
27010A
27010B
27010B
59071
59071
59071
59071
59071
59071
59416
59416
59416A
59416A
92002
92002
92002A
92002A
92002B
92002B
92002B
92002B
92002B
92002B
92022
92022
92022A
92022A
92022A
92022A
92026
92026
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92055
92055
92055A
92055A
92070
92070
92071
92071
92071A
92071A
92071B
92071B
92071C
92071C
156
156
311
311
311
311
410
410
410A
410A
670
670
670
670
670
670
92072
92072
92150
92150
92150
92150
92151
92151
92190
92190
92190A
92190A
92190B
92190B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 6
CAP,HOLDER 11012A 11012-3768 3
CAP 11012B 11012-3791 1
BRACKET 11048 11048-3770 1
HOLDER 13091 13091-3785 1
HOLDER 13091A 13091-3800 1
HOLDER 13091B 13091-3804 1
HOLDER-ASSY 14079 14079-3710 1
REGULATOR-VOLTAGE 21066 21066-3712 1
IGNITER 21119 21119-3754 1
COIL-IGNITION,#1 21121 21121-3708 1
COIL-IGNITION,#2 21121A 21121-3709 1
COIL-IGNITION,#3 21121B 21121-3710 1
CAP-SPARK PLUG 21130 21130-3706 3
FUSE-ASSY 26004 26004-3719 1
FUSE,10A-R 26006 26006-1007 2
FUSE,3A-P 26006A 26006-1060 2
HARNESS,IGNITER 26030 26030-3724 1
HARNESS,SUB 26030A 26030-3740 1
SWITCH 27010 27010-3744 1
SWITCH 27010A 27010-3759 1
SWITCH,STARTER RELAY 27010B 27010-3760 1
JOINT 59071 59071-3001 6
CASE-ELECTRIC,UPP 59416 59416-3755 1
CASE-ELECTRIC,LWR 59416A 59416-3759 1
BOLT,6X25 92002 92002-3714 8
BOLT,6X16 92002A 92002-3728 2
BOLT,6X20 92002B 92002-3755 6
WASHER 92022 92022-3035 2
WASHER,6.2X20X2 92022A 92022-3714 2
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 6
CLAMP,HOSE 92037A 92037-1603 3
RING-O 92055 92055-1292 1
RING-O,ELECTRIC 92055A 92055-3738 1
PLUG-SPARK,BR9ES(NGK),SOLID 92070 92070-1157 3
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3786 1
GROMMET 92071B 92071-3804 2
GROMMET 92071C 92071-527 3
BOLT-WP 156 156R0690 4
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
O RING,16MM 670 670B2016 6
BAND,L=201 92072 92072-3778 2
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,6X14 92151 92151-3788 1
TUBE,HIGH TENSION,L=330 92190 92190-3707 1
TUBE,8X10X565 92190A 92190-3942 1
TUBE,8X10X425 92190B 92190-3943 1
