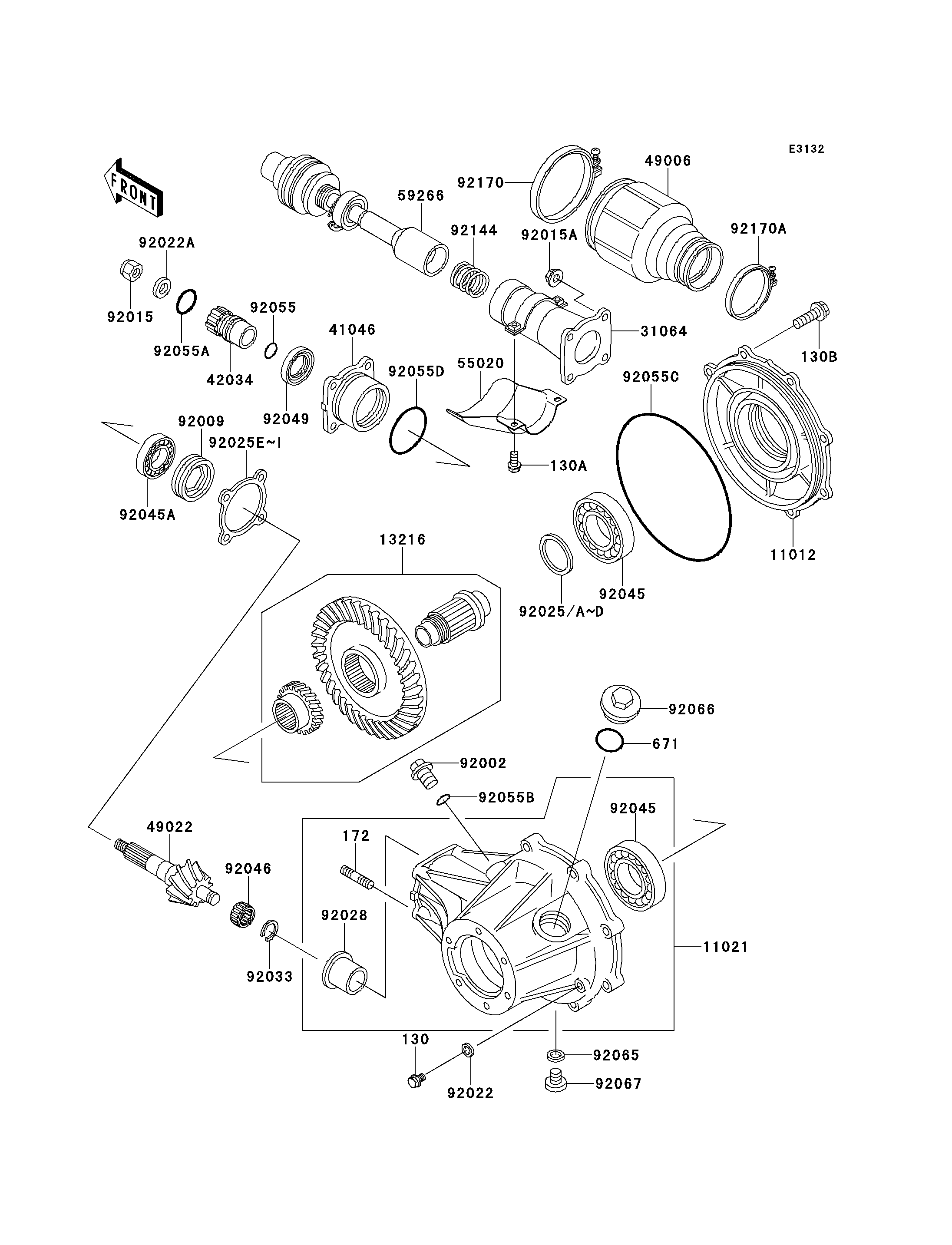

2009 Bayou® 250 - Drive Shaft/Final Gear

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11021
11021
13216
13216
31064
31064
41046
41046
42034
42034
49006
49006
49022
49022
55020
55020
59266
59266
92002
92002
92009
92009
92015
92015
92015A
92015A
92022
92022
92022A
92022A
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92028
92028
92033
92033
92045
92045
92045
92045
92045A
92045A
92046
92046
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92065
92065
92066
92066
92067
92067
92144
92144
130
130
130A
130A
130B
130B
172
172
671
671
92170
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1593 1
CASE-ASSY,FRONT BEVEL 11021 11021-1069 1
GEAR-COMP,FINAL 13216 13216-1134 1
PIPE-COMP 31064 31064-1209 1
HOUSING-BEARING 41046 41046-1084 1
COUPLING,DIFFERENTIAL CASE 42034 42034-1078 1
BOOT,DRIVE SHAFT 49006 49006-1240 1
GEAR-BEVEL,10T 49022 49022-1097 1
GUARD 55020 55020-1643 1
JOINT-BALL,DRIVE SHAFT 59266 59266-1069 1
BOLT,16X10 92002 92002-1238 1
SCREW 92009 92009-1475 1
NUT,12MM 92015 92015-1182 1
NUT,8MM 92015A 92015-1402 4
WASHER,6.1X12X1 92022 92022-077 1
WASHER,12.3X25X3.2 92022A 92022-1293 1
SHIM,35.3X46X1.00 92025 92025-1849 AR
SHIM,35.3X46X0.10 92025A 92025-1850 AR
SHIM,35.3X46X0.15 92025B 92025-1851 AR
SHIM,35.3X46X0.50 92025C 92025-1856 AR
SHIM,35.3X46X0.80 92025D 92025-1857 AR
SHIM,T=1.00 92025E 92025-1864 AR
SHIM,T=0.10 92025F 92025-1865 AR
SHIM,T=0.15 92025G 92025-1866 AR
SHIM,T=0.50 92025H 92025-1867 AR
SHIM,T=0.80 92025I 92025-1868 AR
BUSHING 92028 92028-1501 1
RING-SNAP,14X17.5X1.2 92033 92033-1234 1
BEARING-BALL 92045 92045-1110 2
BEARING-BALL 92045A 92045-1112 1
BEARING-NEEDLE,K15X21X15 92046 92046-1173 1
SEAL-OIL 92049 92049-1231 1
RING-O,17.5X1.5 92055 92055-022 1
RING-O,27MM 92055A 92055-1119 1
RING-O,ID=13.8 92055B 92055-1141 1
RING-O,154X3 92055C 92055-1165 1
RING-O,59.6X2.4 92055D 92055-3018 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG 92066 92066-1284 1
PLUG,DRAIN,10X12 92067 92067-001 1
SPRING,DRIVE SHAFT 92144 92144-1235 1
BOLT-FLANGED,6X8 130 130AA0608 1
BOLT-FLANGED,6X12 130A 130BB0612 2
BOLT-FLANGED,8X25 130B 130CA0825 8
BOLT-STUD,8X25 172 172BA0825 4
O RING,30MM 671 671B2530 1
CLAMP 92170 92170-1149 1
CLAMP 92170A 92170-1674 1
