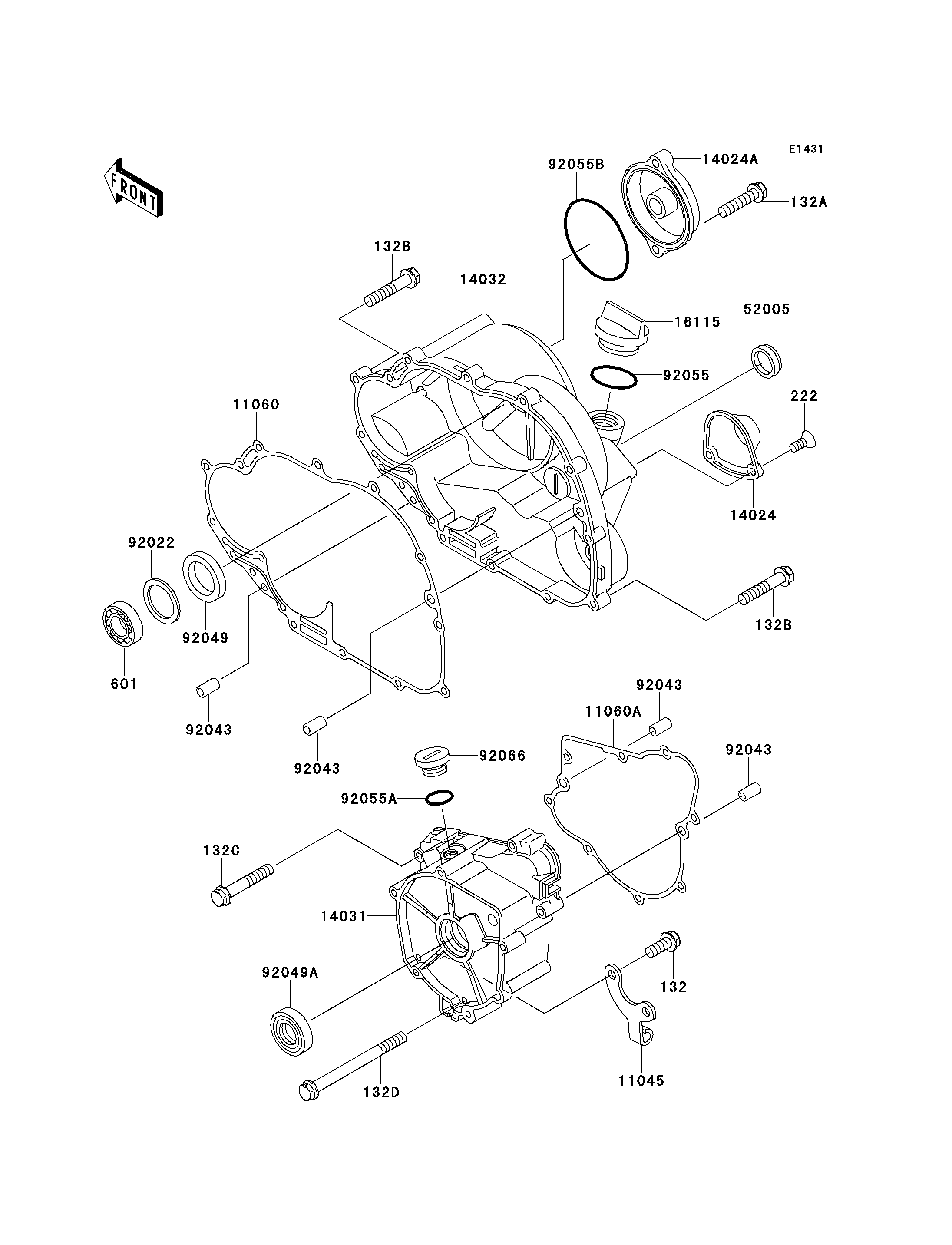

2009 Bayou® 250 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132B
132B
132C
132D
222
601
11045
11060
11060A
14024
14024A
14031
14032
16115
52005
92022
92043
92043
92043
92043
92049
92049A
92055
92055A
92055B
92066
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BB0614 2
BOLT-FLANGED-SMALL,6X25 132A 132BB0625 2
BOLT-FLANGED-SMALL,6X30 132B 132BB0630 13
BOLT-FLANGED-SMALL,6X35 132C 132BB0635 4
BOLT-FLANGED-SMALL,6X70 132D 132BB0670 3
SCREW-CSK-RD-CROS,5X12 222 222AB0512 2
BEARING-BALL,#6002 601 601A6002 1
BRACKET 11045 11045-1828 1
GASKET,CLUTCH COVER 11060 11060-1648 1
GASKET,GENERATOR 11060A 11060-1649 1
COVER 14024 14024-1486 1
COVER,OIL FILTER 14024A 14024-1488 1
COVER-GENERATOR 14031 14031-1338 1
COVER-CLUTCH 14032 14032-1451 1
CAP-OIL FILLER 16115 16115-1062 1
GAUGE,OIL LEVEL 52005 52005-1009 1
WASHER,21X31.5X1.0 92022 92022-1624 1
PIN,6.2X8X14 92043 92043-1263 4
SEAL-OIL 92049 92049-1293 1
SEAL-OIL,TC25356 92049A 92049-1317 1
RING-O,31.7X2.4 92055 92055-049 1
RING-O,20X2 92055A 92055-1146 1
RING-O,63.6X2.4 92055B 92055-1433 1
PLUG,COVER 92066 92066-1163 1
