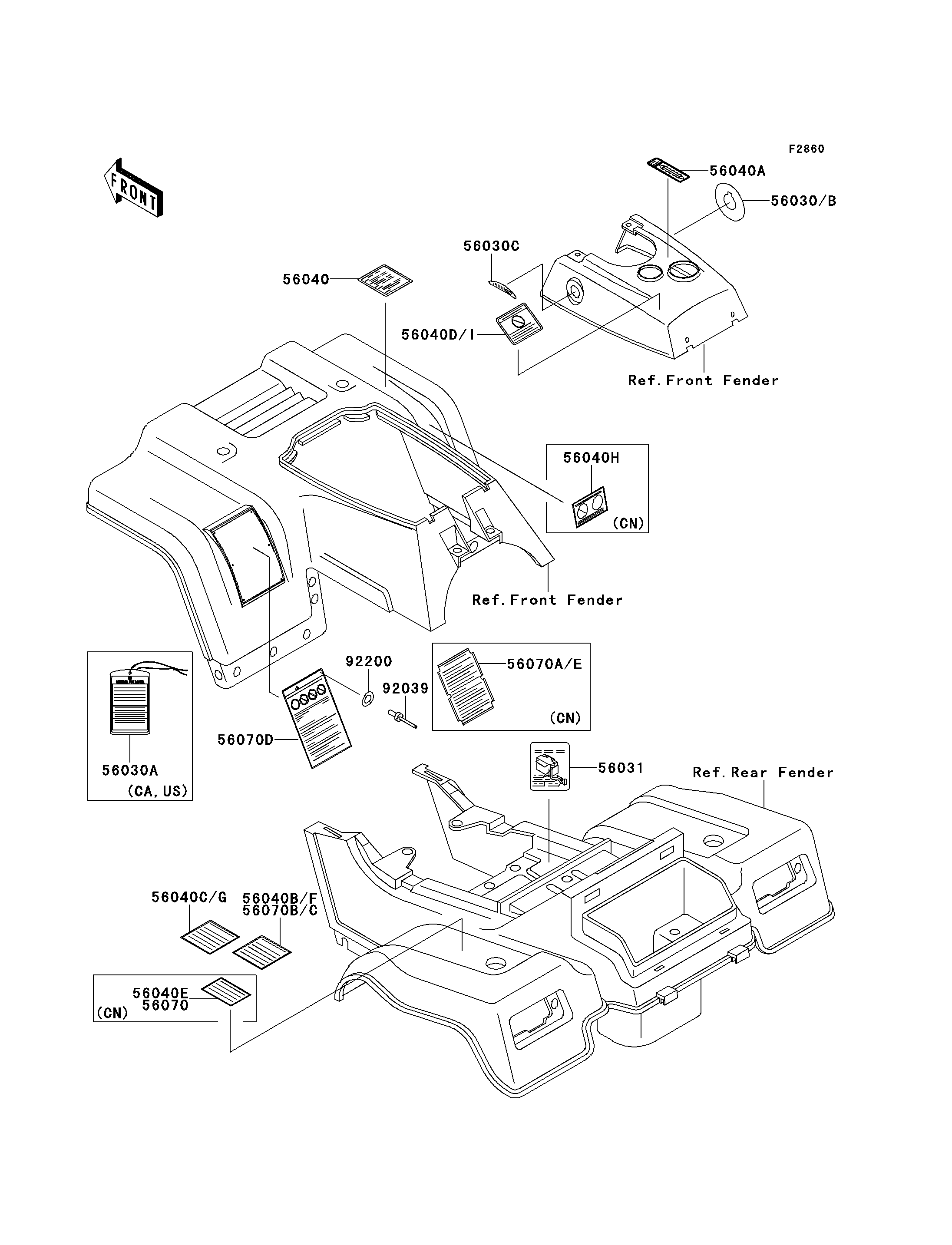

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION SWITCH | 56030 | 56030-0014 | 1 | ||
| LABEL,REVERSE | 56030C | 56030-1102 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1533 | 1 | ||
| LABEL-WARNING,SHIFT PATTERN | 56040A | 56040-1262 | 1 | ||
| LABEL-WARNING,UNDER 16 | 56040D | 56040-1276 | 1 | ||
| LABEL-WARNING,TIRE PRESSURE | 56070B | 56070-0026 | 1 | ||
| LABEL-WARNING,SERIOUS INJURY | 56070D | 56070-1151 | 1 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 6 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 6 | ||
| LABEL,HANGTAG | 56030A | 56030-0047 | 1 | CAUS | |
| LABEL-WARNING,AGE | 56040I | 56040-1325 | 1 | CN | |
| LABEL-WARNING,NO PASSENGER | 56070 | 56070-0018 | 1 | CN | |
| LABEL-WARNING,GENERAL | 56070A | 56070-0019 | 1 | CN | |
| LABEL-WARNING,TIRE PRESSURE | 56070C | 56070-0027 | 1 | CN |
