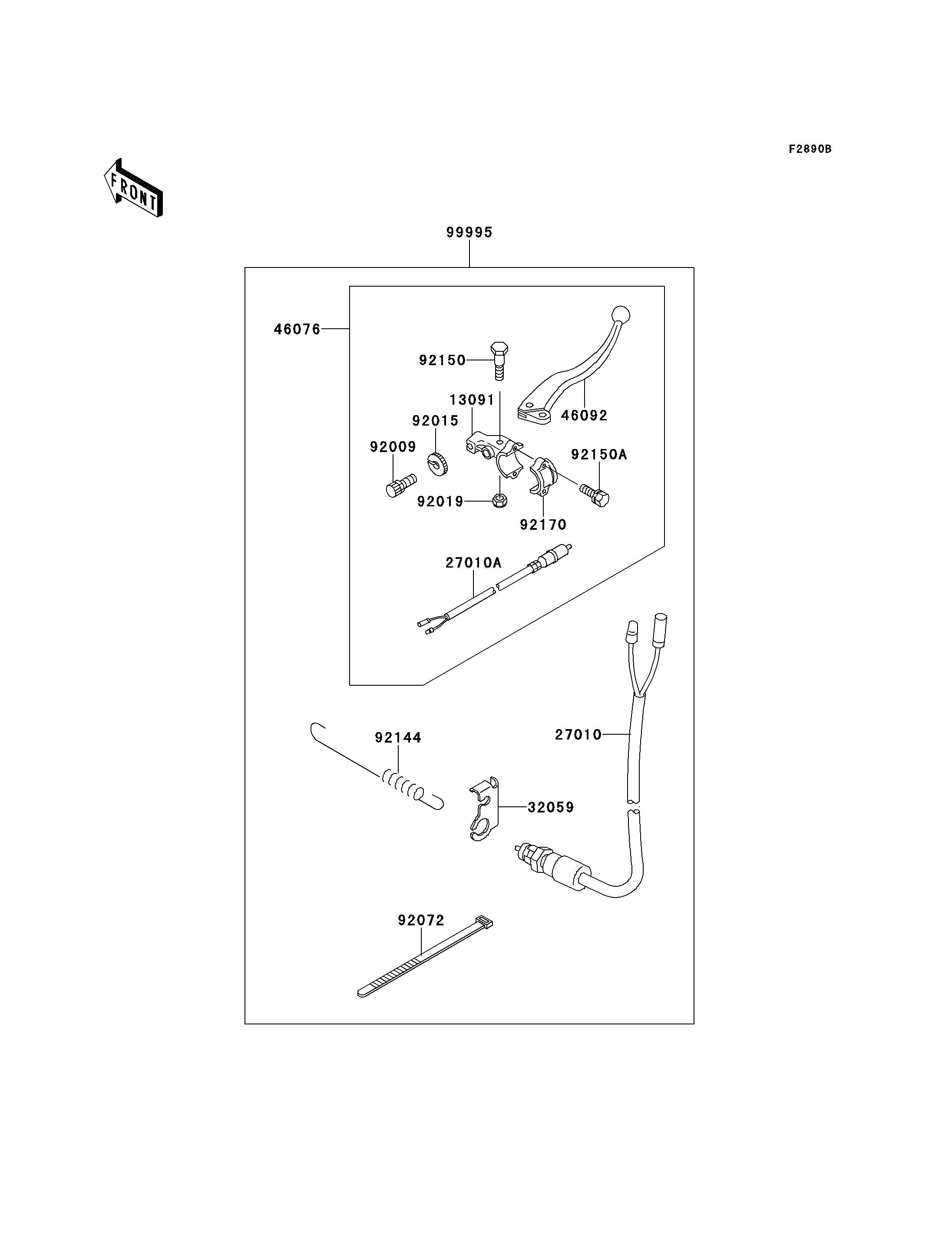

2000 Bayou 220 - Optional Parts(Brake Switch)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,LEVER,RH | 13091 | 13091-1719 | 1 | CN | |
| SWITCH,BRAKE LAMP | 27010 | 27010-025 | 1 | CN | |
| SWITCH,STOP | 27010A | 27010-1296 | 1 | CN | |
| BRACKET-SWITCH,REAR BRAKE | 32059 | 32059-1106 | 1 | CN | |
| LEVER-ASSY-GRIP,RH | 46076 | 46076-1179 | 1 | CN | |
| LEVER-GRIP,RH | 46092 | 46092-1168 | 1 | CN | |
| SCREW,CABLE ADJUST,8MM | 92009 | 92009-1435 | 1 | CN | |
| NUT,CABLE ADJUST LOCK,8MM | 92015 | 92015-1596 | 1 | CN | |
| NUT,LOCK,6MM | 92019 | 92019-008 | 1 | CN | |
| BAND,L=123 | 92072 | 92072-030 | 3 | CN | |
| SPRING,BRAKE PEDAL RETURN | 92144 | 92144-1542 | 1 | CN | |
| BOLT | 92150 | 92150-1457 | 1 | CN | |
| BOLT | 92150A | 92150-1458 | 2 | CN | |
| CLAMP,LEVER HOLDER | 92170 | 92170-1219 | 1 | CN | |
| KIT.,BRAKE SWITCH | 99995 | 99995-1454 | 1 | CN |
| HOLDER,LEVER,RH | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SWITCH,BRAKE LAMP | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SWITCH,STOP | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BRACKET-SWITCH,REAR BRAKE | |
| REF # | 32059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LEVER-ASSY-GRIP,RH | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LEVER-GRIP,RH | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| SCREW,CABLE ADJUST,8MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| NUT,CABLE ADJUST LOCK,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| NUT,LOCK,6MM | |
| REF # | 92019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN |
| REMARKS | |
| SPRING,BRAKE PEDAL RETURN | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BOLT | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| CLAMP,LEVER HOLDER | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| KIT.,BRAKE SWITCH | |
| REF # | 99995 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
