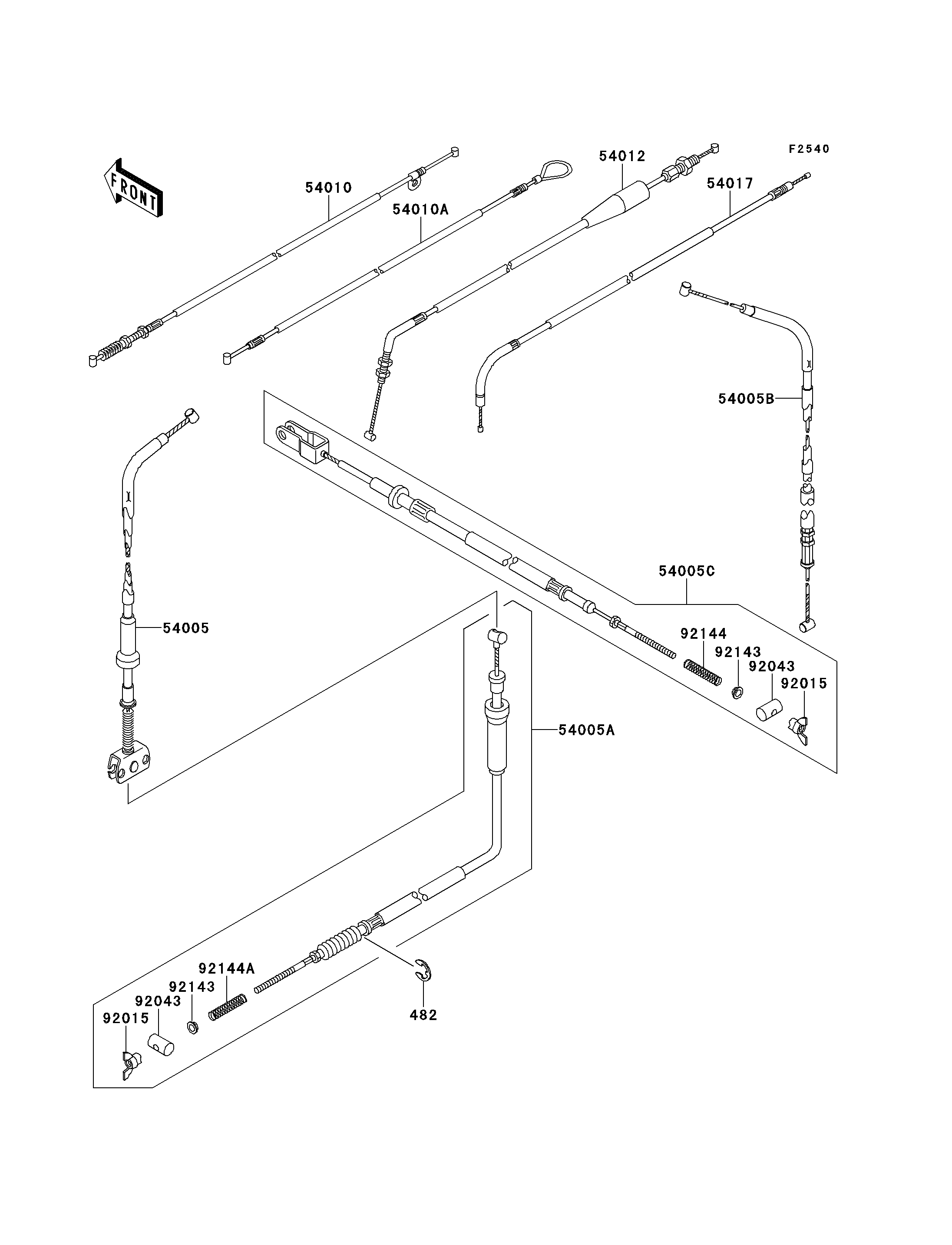

Parts Diagrams |
482
54005
54005A
54005B
54005C
54010
54010A
54012
54017
92015
92015
92043
92043
92143
92143
92144
92144A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-E | 482 | 482L7000 | 2 | ||
| CABLE-BRAKE,FR,UPP | 54005 | 54005-1153 | 1 | ||
| CABLE-BRAKE,FR,LWR | 54005A | 54005-1154 | 2 | ||
| CABLE-BRAKE,PARKING | 54005B | 54005-1155 | 1 | ||
| CABLE-BRAKE,RR | 54005C | 54005-1156 | 1 | ||
| CABLE,REVERSE | 54010 | 54010-1073 | 1 | ||
| CABLE,SEAT HOOK | 54010A | 54010-1074 | 1 | ||
| CABLE-THROTTLE | 54012 | 54012-1361 | 1 | ||
| CABLE-STARTER | 54017 | 54017-1137 | 1 | ||
| NUT,WING,6MM | 92015 | 92015-4004 | 3 | ||
| PIN,12X20 | 92043 | 92043-1392 | 3 | ||
| COLLAR | 92143 | 92143-1309 | 3 | ||
| SPRING,BRAKE CABLE | 92144 | 92144-1269 | 1 | ||
| SPRING,BRAKE CABLE | 92144A | 92144-1270 | 2 |
| CIRCLIP-TYPE-E | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,FR,UPP | |
| REF # | 54005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,FR,LWR | |
| REF # | 54005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,PARKING | |
| REF # | 54005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-BRAKE,RR | |
| REF # | 54005C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,REVERSE | |
| REF # | 54010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE,SEAT HOOK | |
| REF # | 54010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-THROTTLE | |
| REF # | 54012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-STARTER | |
| REF # | 54017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WING,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN,12X20 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE CABLE | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE CABLE | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
