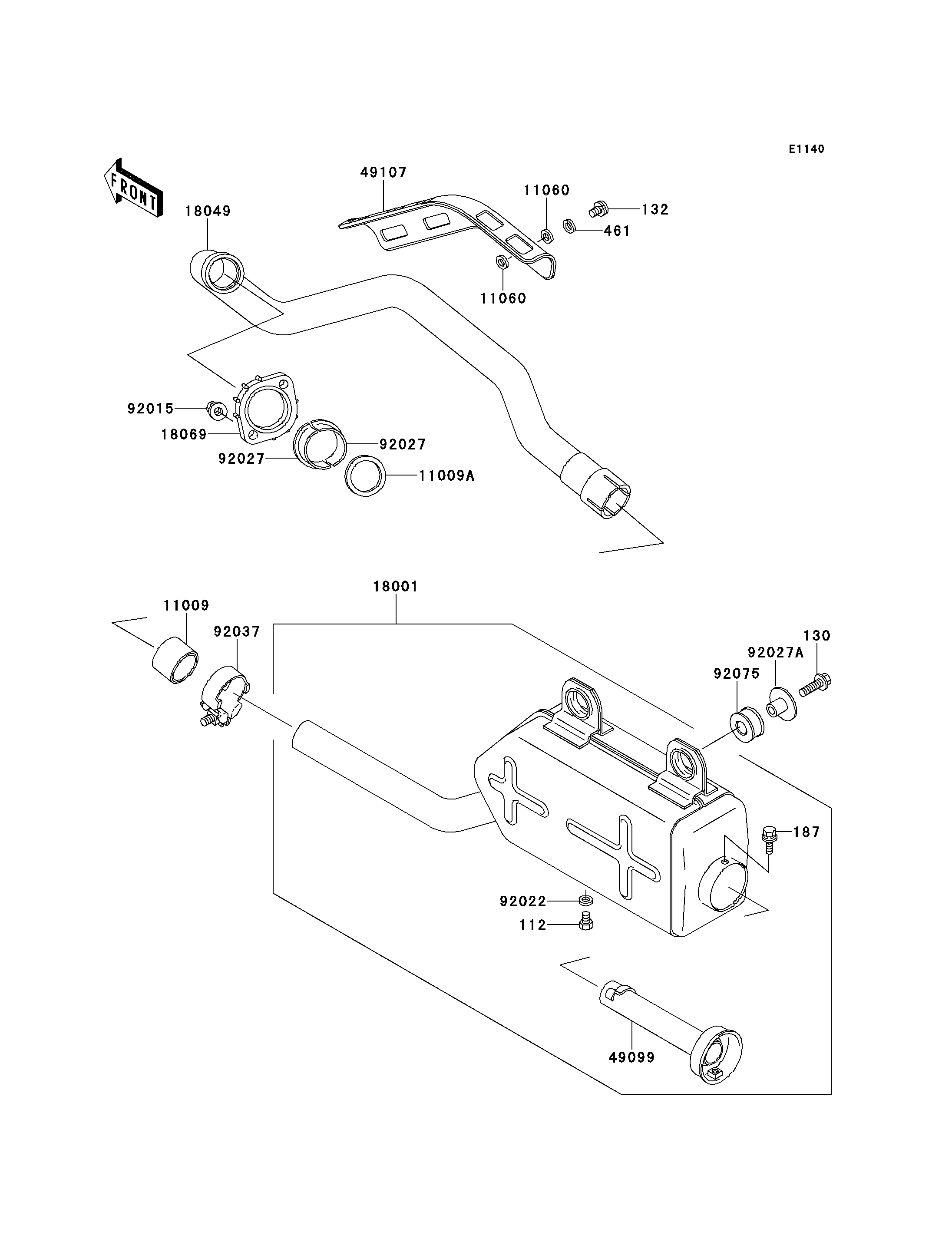

1993 Bayou 220 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
112
130
132
187
461
11009
11009A
11060
11060
18001
18049
18069
49099
49107
92015
92022
92027
92027
92027A
92037
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112B0608 1
BOLT-FLANGED,8X30 130 130J0830 2
BOLT-FLANGED-SMALL,6X10 132 132J0610 2
BOLT-UPSET-WSP 187 187B0612 1
WASHER-SPRING,6MM,BLACK 461 461K0600 2
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1718 1
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 1
GASKET,6.2X11.5X1.5 11060 11060-1109 4
MUFFLER 18001 18001-1667 1
PIPE-EXHAUST 18049 18049-1415 1
HOLDER-EXHAUST PIPE 18069 18069-1078 1
BAFFLE-PIPE MUFFLER 49099 49099-1249 1
COVER-EXHAUST PIPE 49107 49107-1074 1
NUT,6MM 92015 92015-1365 2
WASHER,6.2X11X1 92022 92022-304 1
COLLAR,L=14.5 92027 92027-1142 2
COLLAR,MUFFLER 92027A 92027-1981 2
CLAMP 92037 92037-1956 1
DAMPER,MUFFLER 92075 92075-1809 2
