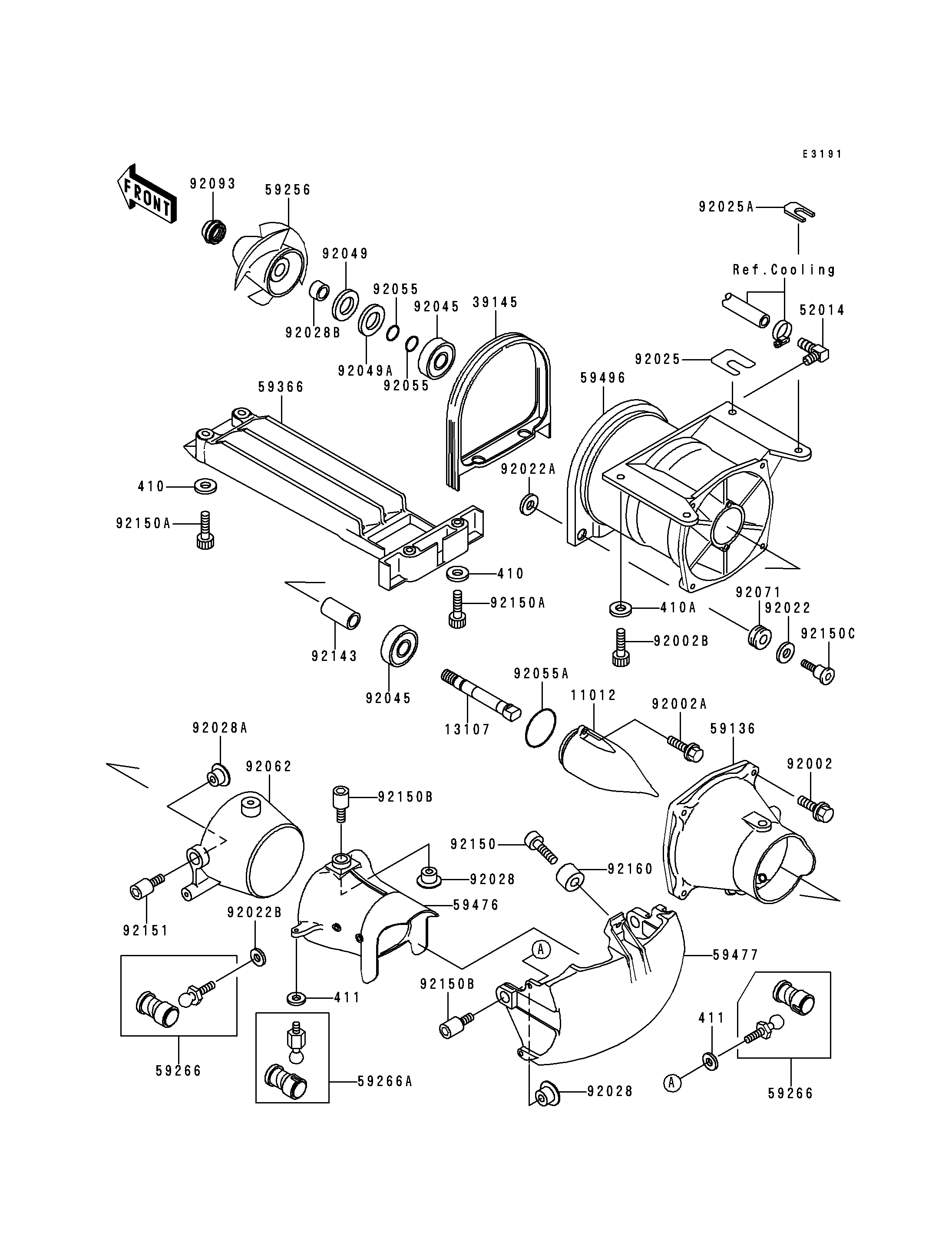

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
410
410
410
410
410A
410A
11012
11012
13107
13107
39145
39145
52014
52014
59136
59136
59256
59256
59266
59266
59266
59266
59266A
59266A
59366
59366
59476
59476
59477
59477
59496
59496
92002
92002
92002A
92002A
92002B
92002B
92022
92022
92022A
92022A
92022B
92022B
92025
92025
92025A
92025A
92028
92028
92028
92028
92028A
92028A
92028B
92028B
92045
92045
92045
92045
92049
92049
92049A
92049A
92055
92055
92055
92055
92055A
92055A
92062
92062
92071
92071
92093
92093
92143
92143
92150
92150
92150A
92150A
92150A
92150A
92150B
92150B
92150B
92150B
92150C
92150C
92151
92151
92160
92160
411
411
411
411
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 4 | ||
| WASHER-PLAIN-SMALL,8MM | 410A | 410S0800 | 4 | ||
| CAP,JET PUMP | 11012 | 11012-3712 | 1 | ||
| SHAFT,JET PUMP | 13107 | 13107-3721 | 1 | ||
| TRIM-SEAL | 39145 | 39145-3732 | 1 | ||
| ELBOW | 52014 | 52014-3711 | 1 | ||
| NOZZLE-PUMP | 59136 | 59136-3741 | 1 | ||
| IMPELLER | 59256 | 59256-3749 | 1 | ||
| JOINT-BALL | 59266 | 59266-3707 | 2 | ||
| JOINT-BALL | 59266A | 59266-3709 | 1 | ||
| GRATE | 59366 | 59366-3710 | 1 | ||
| NOZZLE-STRG | 59476 | 59476-3731 | 1 | ||
| BUCKET-REVERSE | 59477 | 59477-3708 | 1 | ||
| VANE-GUIDE | 59496 | 59496-3724 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 4 | ||
| BOLT,6X16 | 92002A | 92002-3728 | 2 | ||
| BOLT,SOCKET,8X20 | 92002B | 92002-3771 | 4 | ||
| WASHER,6.2X20X2 | 92022 | 92022-3714 | 2 | ||
| WASHER,10.2X20X1.5 | 92022A | 92022-3742 | 2 | ||
| WASHER | 92022B | 92022-567 | 1 | ||
| SHIM,T=0.5MM | 92025 | 92025-3702 | 2 | ||
| SHIM,T=1.5MM | 92025A | 92025-3708 | 2 | ||
| BUSHING | 92028 | 92028-3740 | 4 | ||
| BUSHING | 92028A | 92028-3757 | 2 | ||
| BUSHING,17X25X15 | 92028B | 92028-3760 | 1 | ||
| BEARING-BALL,6303-132RD | 92045 | 92045-3722 | 2 | ||
| SEAL-OIL,SBJ25X47X6 | 92049 | 92049-3723 | 1 | ||
| SEAL-OIL,SCJ25X47X6 | 92049A | 92049-3724 | 1 | ||
| RING-O,13X1.9 | 92055 | 92055-1021 | 2 | ||
| RING-O | 92055A | 92055-3706 | 1 | ||
| NOZZLE | 92062 | 92062-3719 | 1 | ||
| GROMMET | 92071 | 92071-3716 | 2 | ||
| SEAL | 92093 | 92093-3749 | 1 | ||
| COLLAR,17.4X25.4X53 | 92143 | 92143-3708 | 1 | ||
| BOLT,SOCKET,6X10 | 92150 | 92150-3759 | 1 | ||
| BOLT,SOCKET,6X18 | 92150A | 92150-3775 | 4 | ||
| BOLT | 92150B | 92150-3808 | 4 | ||
| BOLT | 92150C | 92150-3850 | 2 | ||
| BOLT | 92151 | 92151-3710 | 2 | ||
| DAMPER | 92160 | 92160-3738 | 1 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 2 |
