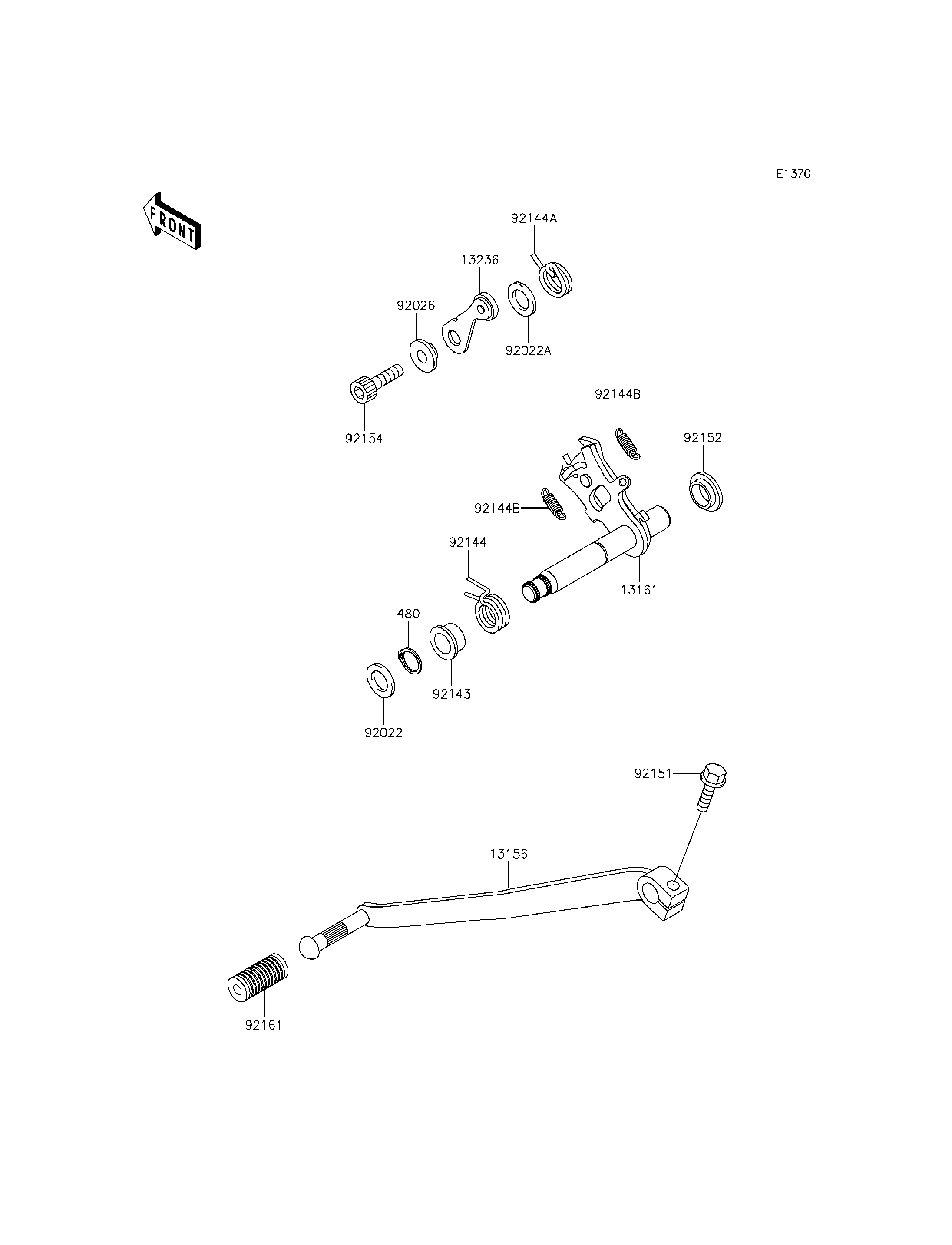

2016 W800 (European) - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
| LEVER-CHANGE,PEDAL | 13156 | 13156-0568 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0558 | 1 | ||
| LEVER-COMP,POSITION | 13236 | 13236-1253 | 1 | ||
| WASHER,13.3X20X1 | 92022 | 92022-1496 | 1 | ||
| WASHER,6X12.8X1.2 | 92022A | 92022-1827 | 1 | ||
| SPACER | 92026 | 92026-1217 | 1 | ||
| COLLAR,RETURN SPRING | 92143 | 92143-1498 | 1 | ||
| SPRING,CHANGE SHAFT RETURN | 92144 | 92144-1628 | 1 | ||
| SPRING,LEVER POSITION | 92144A | 92144-1873 | 1 | ||
| SPRING,CHANGE LEVER | 92144B | 92144-1975 | 2 | ||
| BOLT,FLANGED,6X20 | 92151 | 92151-1226 | 1 | ||
| COLLAR | 92152 | 92152-1075 | 1 | ||
| BOLT,SOCKET,6X16 | 92154 | 92154-0484 | 1 | ||
| DAMPER,CHANGE PEDAL | 92161 | 92161-1300 | 1 |
| CIRCLIP-TYPE-C,13MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-CHANGE,PEDAL | |
| REF # | 13156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP-CHANGE SHAFT | |
| REF # | 13161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,POSITION | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,13.3X20X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6X12.8X1.2 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RETURN SPRING | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE SHAFT RETURN | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,LEVER POSITION | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CHANGE LEVER | |
| REF # | 92144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CHANGE PEDAL | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
