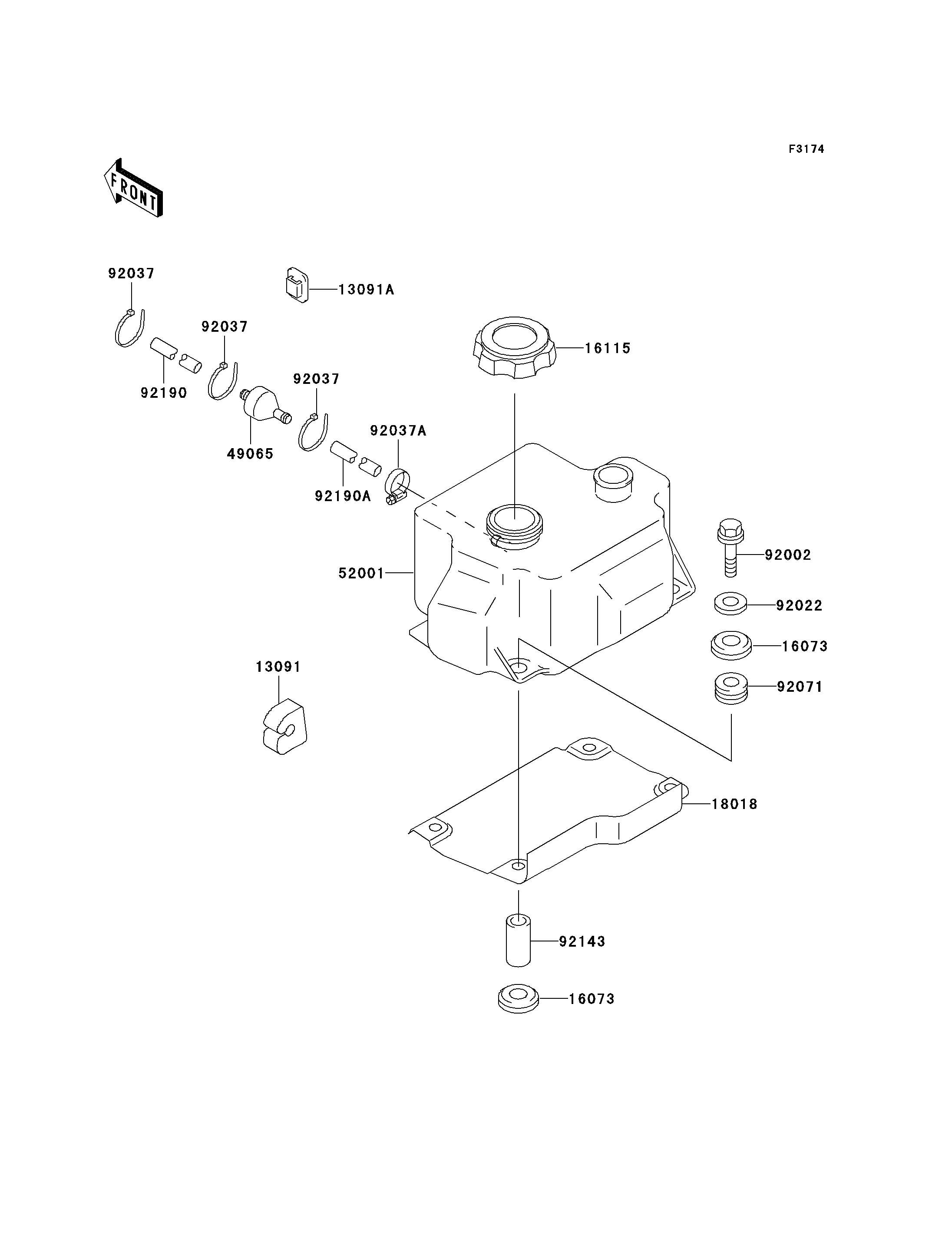

Parts Diagrams |
13091
13091A
16073
16073
16115
18018
49065
52001
92002
92022
92037
92037
92037
92037A
92071
92143
92190
92190A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER | 13091 | 13091-3712 | 1 | ||
| HOLDER,BAND | 13091A | 13091-3764 | 3 | ||
| INSULATOR | 16073 | 16073-3704 | 8 | ||
| CAP-OIL FILLER | 16115 | 16115-3714 | 1 | ||
| PLATE-HEAT GUARD | 18018 | 18018-3702 | 1 | ||
| FILTER-OIL | 49065 | 49065-3701 | 1 | ||
| TANK-OIL | 52001 | 52001-3716 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 4 | ||
| WASHER,6.2X20X2 | 92022 | 92022-3714 | 4 | ||
| CLAMP | 92037 | 92037-1173 | 6 | ||
| CLAMP | 92037A | 92037-3726 | 1 | ||
| GROMMET | 92071 | 92071-3716 | 4 | ||
| COLLAR,6.2X10X19 | 92143 | 92143-3733 | 4 | ||
| TUBE,5.8X10.8X170 | 92190 | 92190-3913 | 1 | ||
| TUBE,OIL TANK - OIL FILTER | 92190A | 92190-3982 | 1 |
