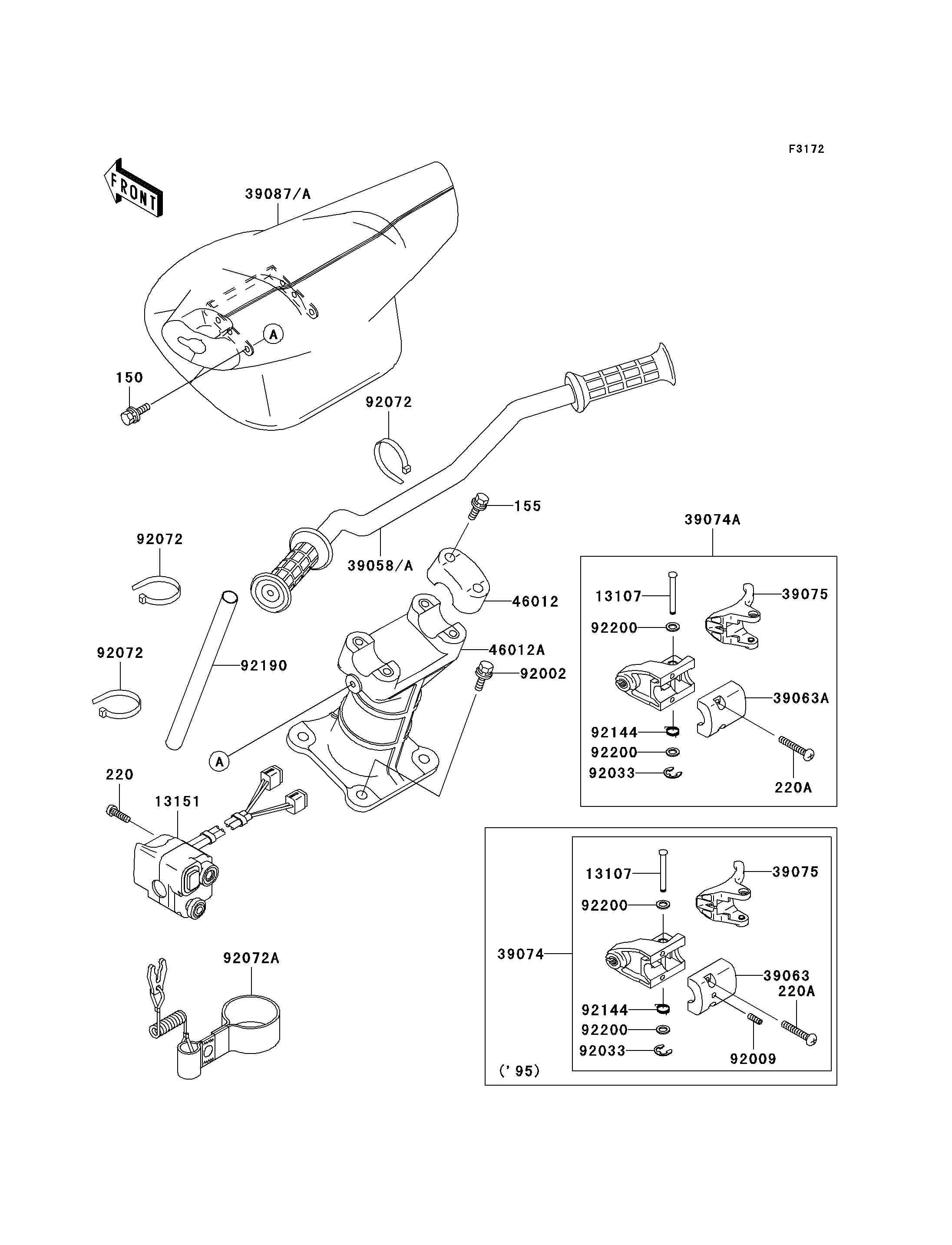

1995 STS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
150
155
220
220A
220A
13107
13107
13151
39058
39063
39074
39075
39075
39087A
46012
46012A
92002
92009
92033
92033
92072
92072
92072
92072A
92144
92144
92190
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS,6X14 150 150R0614 2
BOLT-WSP-SMALL,8X35 155 155R0835 4
SCREW-PAN-CROS,5X30 220 220R0530 3
SCREW-PAN-CROS 220A 220R0630 2
SHAFT 13107 13107-3740 1
SWITCH-COMP,STOP&START&TRIM 13151 13151-3713 1
HANDLE-COMP,J.S.VIOLET 39058 39058-3712-RE 1
HOUSING-CONTROL 39063 39063-3719 1
LEVER-ASSY-THROTTLE 39074 39074-3716 1
LEVER-THROTTLE 39075 39075-3710 1
PAD-HANDLE,ROUGE 39087A 39087-3715-PW 1
HOLDER-HANDLE,UPP 46012 46012-3720 2
HOLDER-HANDLE,LWR 46012A 46012-3722 1
BOLT,8X25 92002 92002-3774 4
SCREW 92009 92009-3814 1
RING-SNAP 92033 92033-3723 1
BAND 92072 92072-3778 3
BAND,TETHER SWITCH 92072A 92072-3784 1
SPRING 92144 92144-3749 1
TUBE,22X24X270 92190 92190-3935 1
WASHER 92200 92200-3738 2
