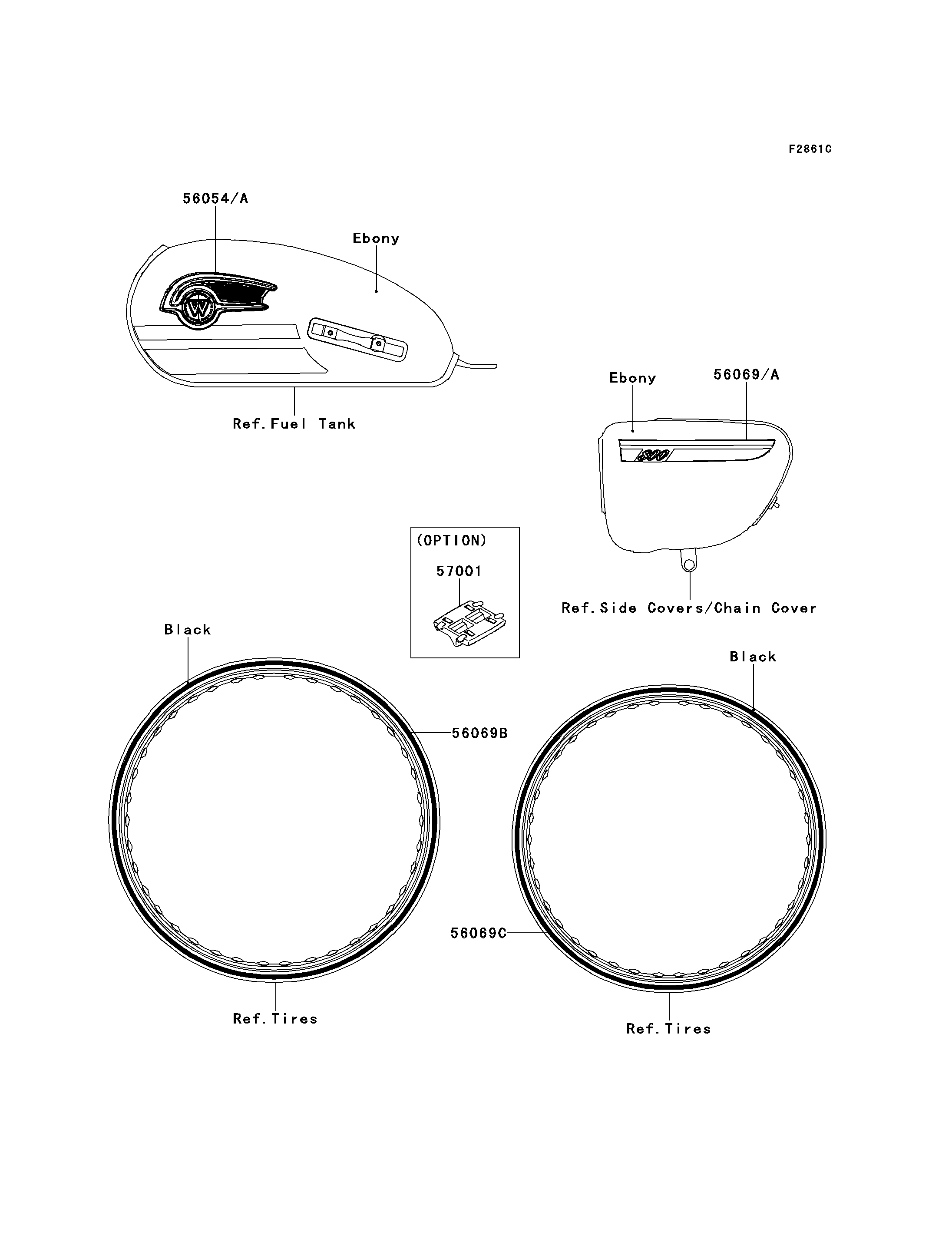

2014 W800 (European) - Decals(Ebony)(AEFA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH,W | 56054 | 56054-1378 | 1 | ||
| MARK,FUEL TANK,RH,W | 56054A | 56054-1379 | 1 | ||
| PATTERN,SIDE COVER,LH | 56069 | 56069-4376 | 1 | ||
| PATTERN,SIDE COVER,RH | 56069A | 56069-4377 | 1 | ||
| PATTERN,FR WHEEL,ORG,6X1594 | 56069B | 56069-4378 | 2 | ||
| PATTERN,RR WHEEL,ORG,6X1514 | 56069C | 56069-4379 | 2 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FUEL TANK,LH,W | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH,W | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR WHEEL,ORG,6X1594 | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR WHEEL,ORG,6X1514 | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
