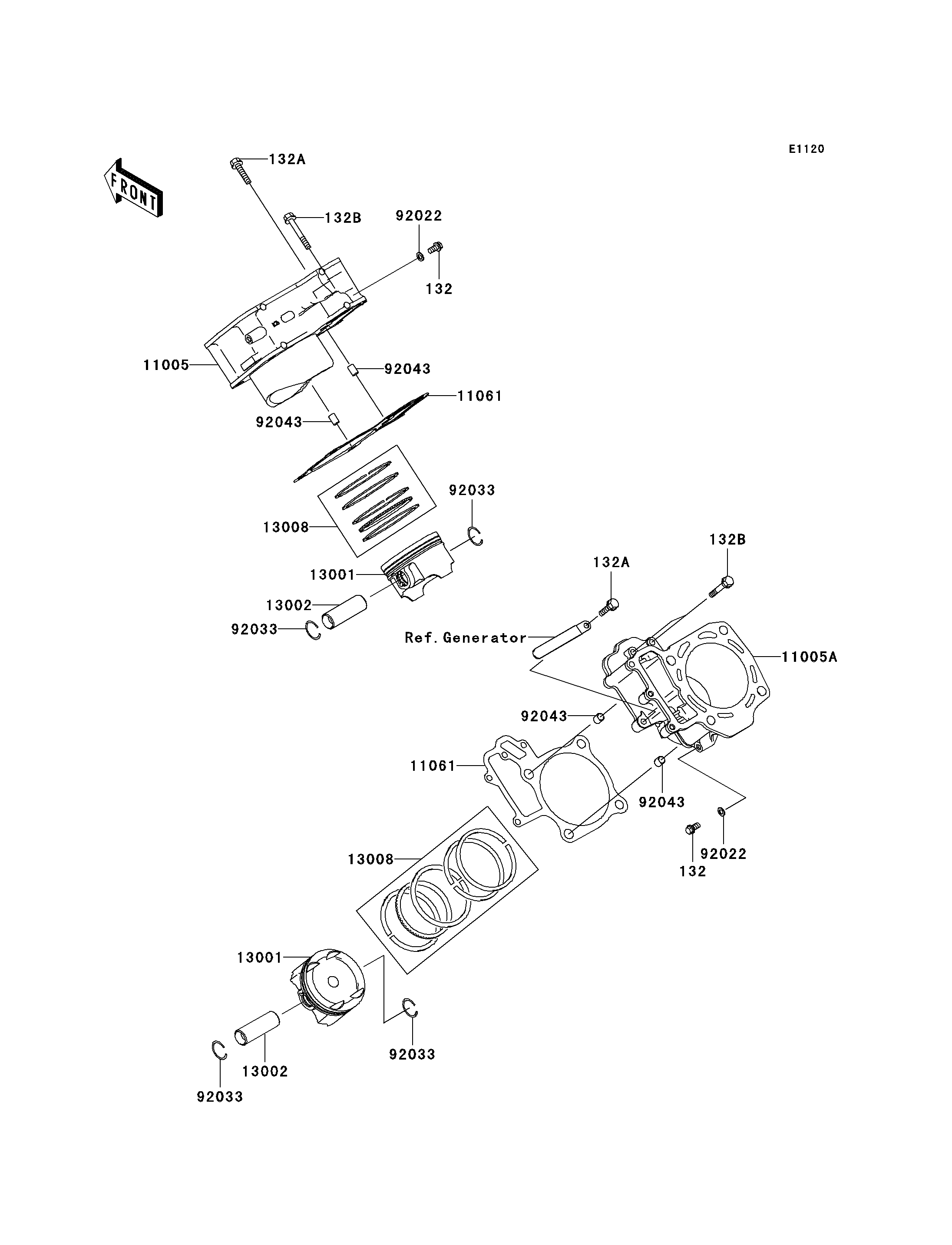

2008 Teryx® 750 4x4 LE - Cylinder/Piston(s)
132
132
132A
132A
132B
132B
11005
11005A
11061
11061
13001
13001
13002
13002
13008
13008
92022
92022
92033
92033
92033
92033
92043
92043
92043
92043
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BD0612 | 2 | ||
| BOLT-FLANGED-SMALL,6X30 | 132A | 132BD0630 | 2 | ||
| BOLT-FLANGED-SMALL,6X40 | 132B | 132BD0640 | 4 | ||
| CYLINDER-ENGINE,FR | 11005 | 11005-0107 | 1 | ||
| CYLINDER-ENGINE,RR | 11005A | 11005-0108 | 1 | ||
| GASKET,CYLINDER BASE | 11061 | 11061-0063 | 2 | ||
| PISTON-ENGINE | 13001 | 13001-0021 | 2 | ||
| PIN-PISTON | 13002 | 13002-1060 | 2 | ||
| RING-SET-PISTON | 13008 | 13008-0008 | 2 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
| RING-SNAP | 92033 | 92033-1207 | 4 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X30 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X40 | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE,FR | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE,RR | |
| REF # | 11005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
