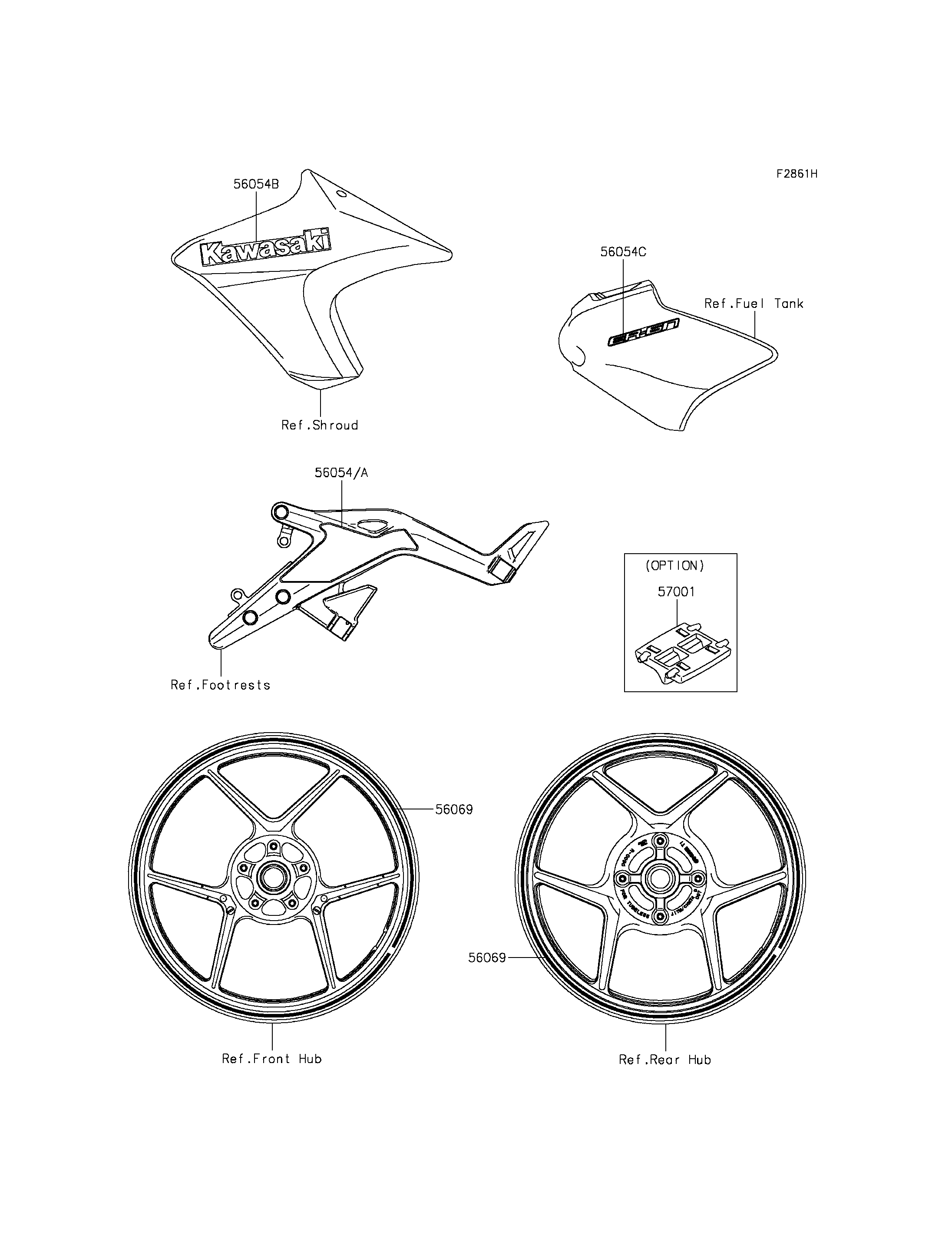

2015 ER-6n (European) - Decals(Green)(EFF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,STEP STAY,LH | 56054 | 56054-1068 | 1 | ||
| MARK,STEP STAY,RH | 56054A | 56054-1069 | 1 | ||
| MARK,SHROUD,KAWASAKI | 56054B | 56054-1293 | 2 | ||
| MARK,TANK COVER,ER-6N | 56054C | 56054-1622 | 2 | ||
| PATTERN,WHEEL,GREEN,4X1353 | 56069 | 56069-7822 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,STEP STAY,LH | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,STEP STAY,RH | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,TANK COVER,ER-6N | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
