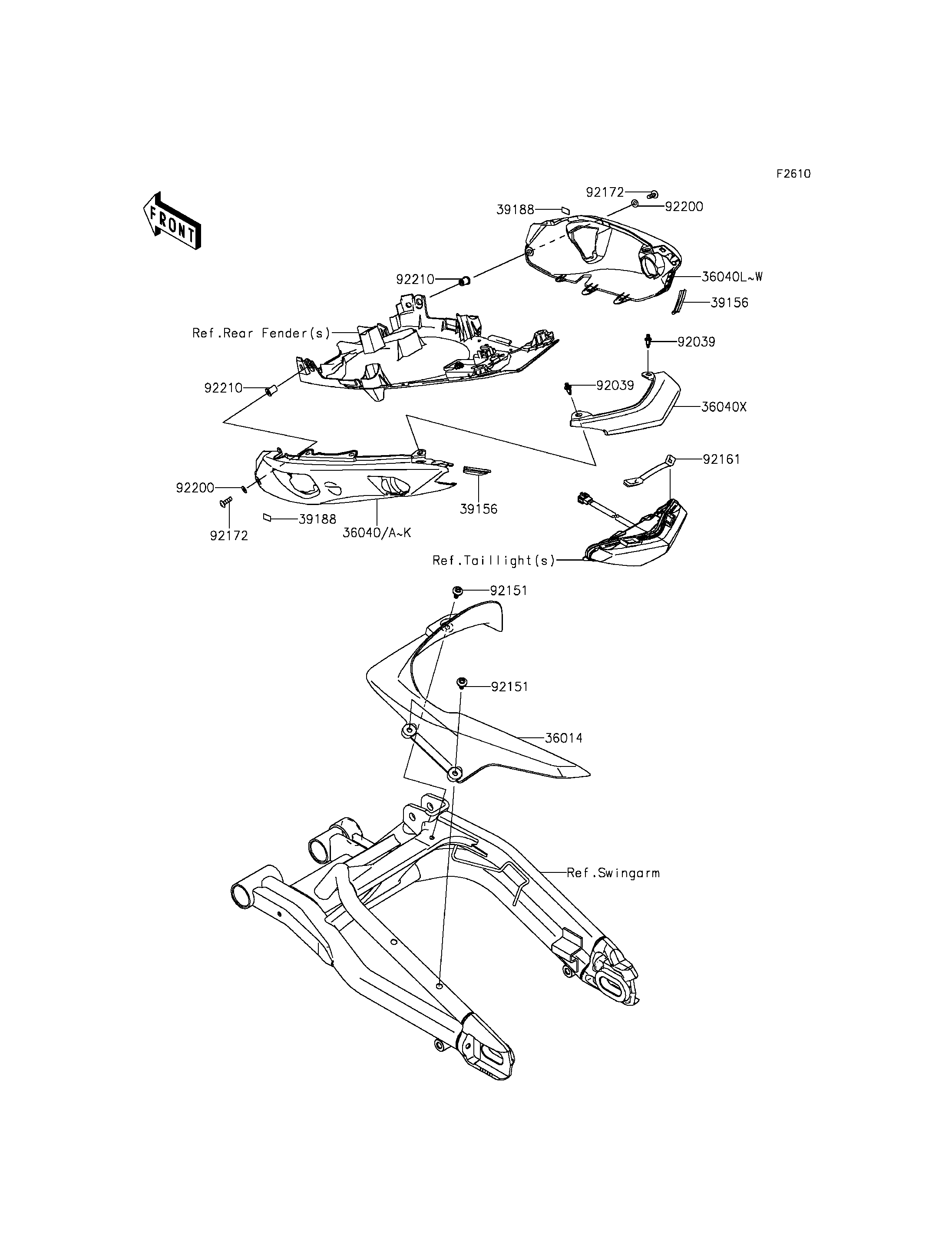

2016 ER-6n (European) - Side Covers/Chain Cover
36014
36040G
36040H
36040I
36040S
36040T
36040U
36040X
39156
39156
39188
39188
92039
92039
92151
92151
92161
92172
92172
92200
92200
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-CHAIN | 36014 | 36014-0552 | 1 | ||
COVER-TAIL,LH,M.C.GRAY | 36040G | 36040-0116-51A | 1 | ||
COVER-TAIL,LH,C.L.GREEN | 36040H | 36040-0116-51P | 1 | ||
COVER-TAIL,LH,U.C.WHITE | 36040I | 36040-0116-53Q | 1 | ||
COVER-TAIL,RH,M.C.GRAY | 36040S | 36040-0117-51A | 1 | ||
COVER-TAIL,RH,C.L.GREEN | 36040T | 36040-0117-51P | 1 | ||
COVER-TAIL,RH,U.C.WHITE | 36040U | 36040-0117-53Q | 1 | ||
COVER-TAIL,CNT | 36040X | 36040-0118 | 1 | ||
PAD,20X40X3 | 39156 | 39156-0831 | 2 | ||
TAPE | 39188 | 39188-0022 | 2 | ||
RIVET | 92039 | 92039-0023 | 2 | ||
BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 3 | ||
DAMPER,TAIL LAMP UPP | 92161 | 92161-0625 | 1 | ||
SCREW,5X16 | 92172 | 92172-0479 | 2 | ||
WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 2 | ||
NUT,WELL,5MM | 92210 | 92210-0498 | 2 |
