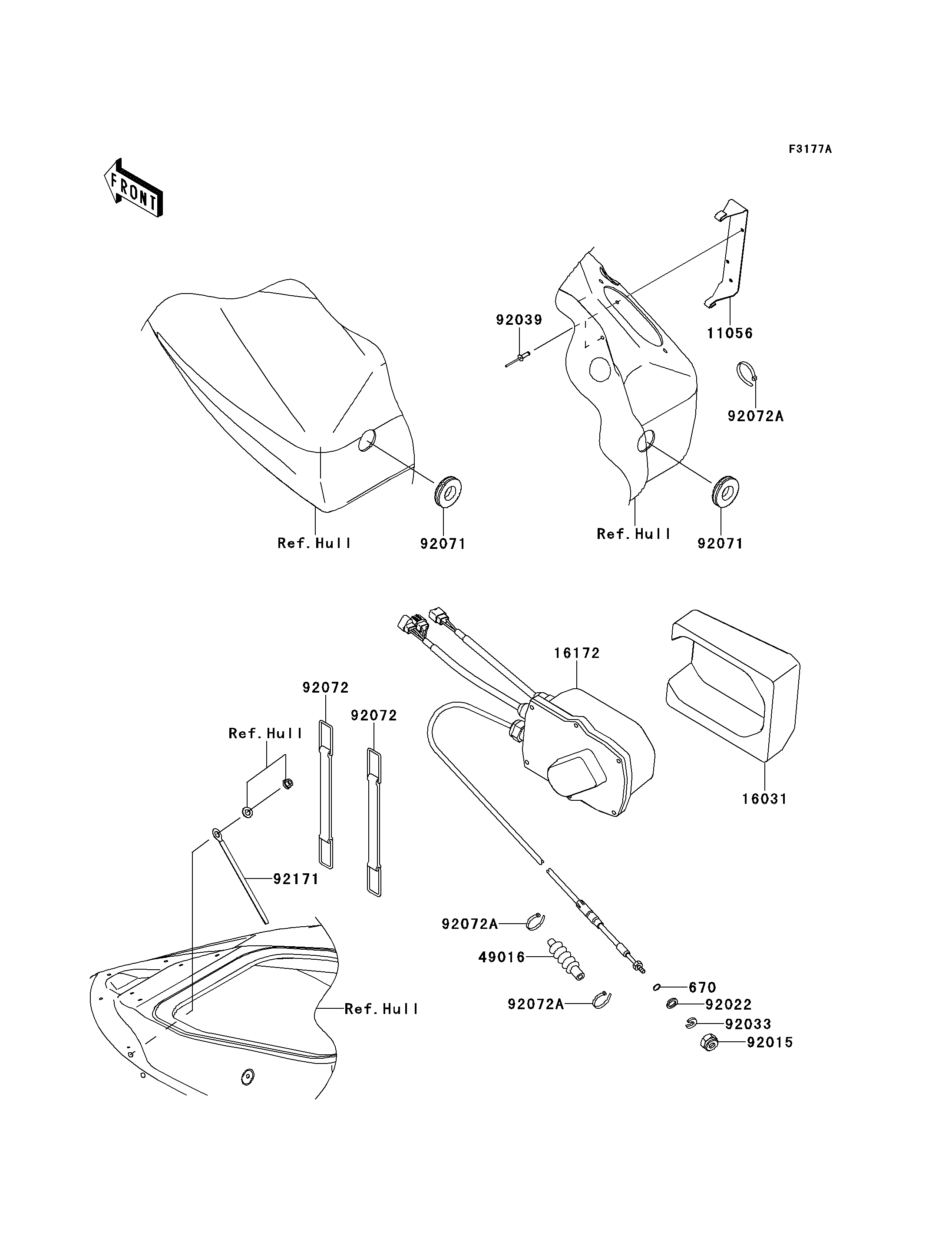

2013 JET SKI® ULTRA® 300LX - Control(JDF)
670
11056
16031
16172
49016
92015
92022
92033
92039
92071
92071
92072
92072
92072A
92072A
92072A
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,11MM | 670 | 670B2011 | 1 | ||
| BRACKET | 11056 | 11056-0711 | 1 | ||
| FLOAT | 16031 | 16031-3993 | 1 | ||
| ACTUATOR,JET PUMP | 16172 | 16172-0027 | 1 | ||
| COVER-SEAL,TILT CABLE | 49016 | 49016-3702 | 1 | ||
| NUT,20MM | 92015 | 92015-526 | 1 | ||
| WASHER | 92022 | 92022-535 | 1 | ||
| RING-SNAP,7.7X17.5X3.0 | 92033 | 92033-3737 | 1 | ||
| RIVET | 92039 | 92039-3714 | 2 | ||
| GROMMET | 92071 | 92071-3840 | 2 | ||
| BAND,BATTERY | 92072 | 92072-3841 | 2 | ||
| BAND,L=100.08 | 92072A | 92072-3882 | 3 | ||
| CLAMP,L=150 | 92171 | 92171-3717 | 1 |
| O RING,11MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ACTUATOR,JET PUMP | |
| REF # | 16172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,TILT CABLE | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,7.7X17.5X3.0 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=100.08 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=150 | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
