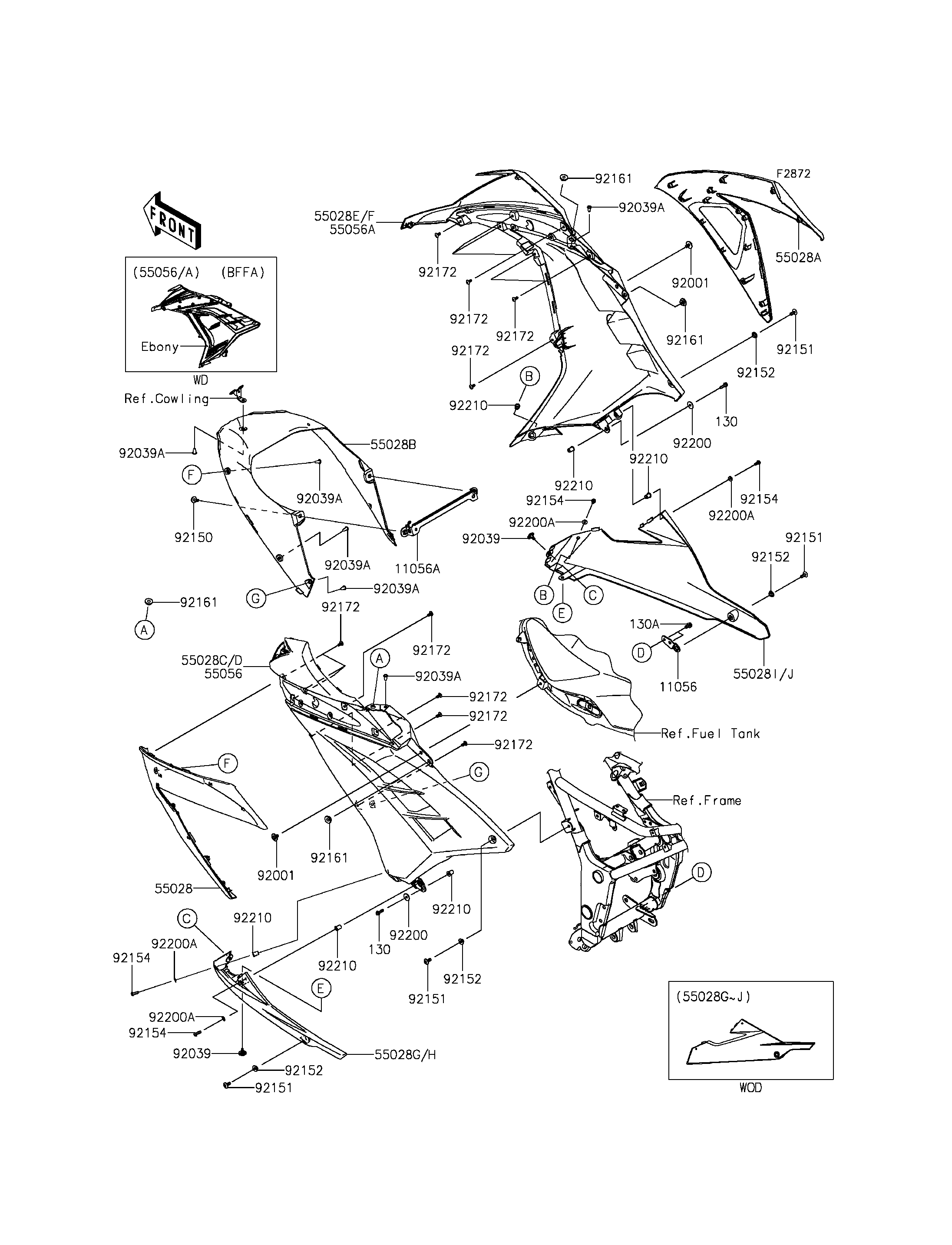

2015 NINJA® 300 ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
11056
11056A
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55028I
92001
92001
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92150
92151
92151
92151
92151
92152
92152
92152
92152
92154
92154
92154
92154
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X18 130 130BA0518 2
BOLT-FLANGED,6X14 130A 130BA0614 2
BRACKET,LWR COWL.,RH 11056 11056-1641 1
BRACKET,RADIATOR 11056A 11056-1909 1
COWLING,SIDE,LH 55028 55028-0418 1
COWLING,SIDE,RH 55028A 55028-0419 1
COWLING,FR,INNER 55028B 55028-0422 1
COWLING,CNT,LH,P.S.WHITE 55028C 55028-0534-25Y 1
COWLING,CNT,LH,L.GREEN 55028D 55028-0534-777 1
COWLING,CNT,RH,P.S.WHITE 55028E 55028-0535-25Y 1
COWLING,CNT,RH,L.GREEN 55028F 55028-0535-777 1
COWLING,LWR,LH,F.S.BLACK 55028G 55028-0536-18T 1
COWLING,LWR,RH,F.S.BLACK 55028I 55028-0537-18T 1
BOLT,6X12 92001 92001-1771 2
RIVET,HOLE 8MM 92039 92039-0014 2
RIVET 92039A 92039-0060 9
BOLT,6X16 92150 92150-1198 2
BOLT,SOCKET,6X14 92151 92151-1654 4
COLLAR 92152 92152-0445 4
BOLT,SOCKET,5X16 92154 92154-0182 4
DAMPER 92161 92161-1531 4
SCREW,5X12 92172 92172-0821 14
WASHER,5.5X20X1.2 92200 92200-0284 2
WASHER,NYLON,5.2X12X1 92200A 92200-1011 4
NUT,WELL,5MM 92210 92210-0498 6
