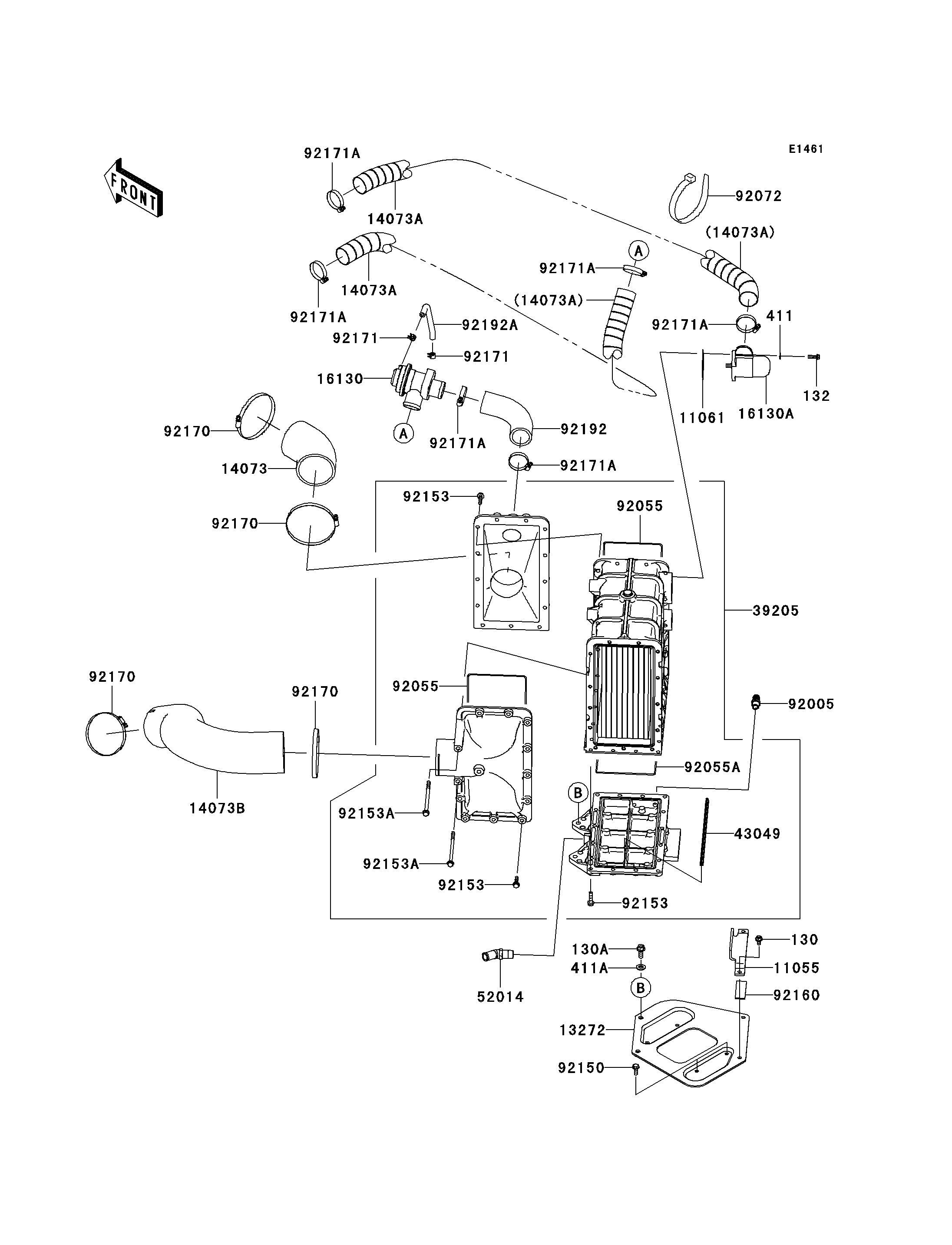

2011 JET SKI® ULTRA® 300X - Inter Cooler

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
411
411A
11055
11061
13272
14073
14073A
14073A
14073B
16130
16130A
39205
43049
52014
92005
92055
92055
92055A
92072
92150
92153
92153
92153
92153A
92153A
92160
92170
92170
92170
92170
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130CD0612 2
BOLT-FLANGED,8X20 130A 130CD0820 2
BOLT-FLANGED-SMALL,6X18 132 132BD0618 2
WASHER-PLAIN,6MM 411 411S0600 2
WASHER-PLAIN,8MM 411A 411S0800 2
BRACKET 11055 11055-3714 1
GASKET 11061 11061-3765 1
PLATE 13272 13272-3721 1
DUCT,I/C-TH. 14073 14073-3823 1
DUCT,BYPASS VALVE-A/C 14073A 14073-3834 2
DUCT,S/C-I/C 14073B 14073-3839 1
VALVE-ASSY-RELIEF,AIR BYPASS 16130 16130-3703 1
VALVE-ASSY-RELIEF,BLOW OFF 16130A 16130-3707 1
HEAT EXCHANGER,INTER COOLER 39205 39205-3702 1
PACKING 43049 43049-3719 1
ELBOW 52014 52014-3714 1
FITTING 92005 92005-3714 1
RING-O 92055 92055-3779 2
RING-O 92055A 92055-3780 1
BAND,L=372.24 92072 92072-3883 1
BOLT,6X18 92150 92150-3729 4
BOLT,FLANGED,6X25 92153 92153-3750 40
BOLT,FLANGED,6X110 92153A 92153-3751 2
DAMPER 92160 92160-1075 1
CLAMP 92170 92170-3764 4
CLAMP 92171 92171-0720 2
CLAMP 92171A 92171-3725 6
TUBE,I/C-ABV 92192 92192-3784 1
TUBE,5.8X10.8X140 92192A 92192-3846 1
