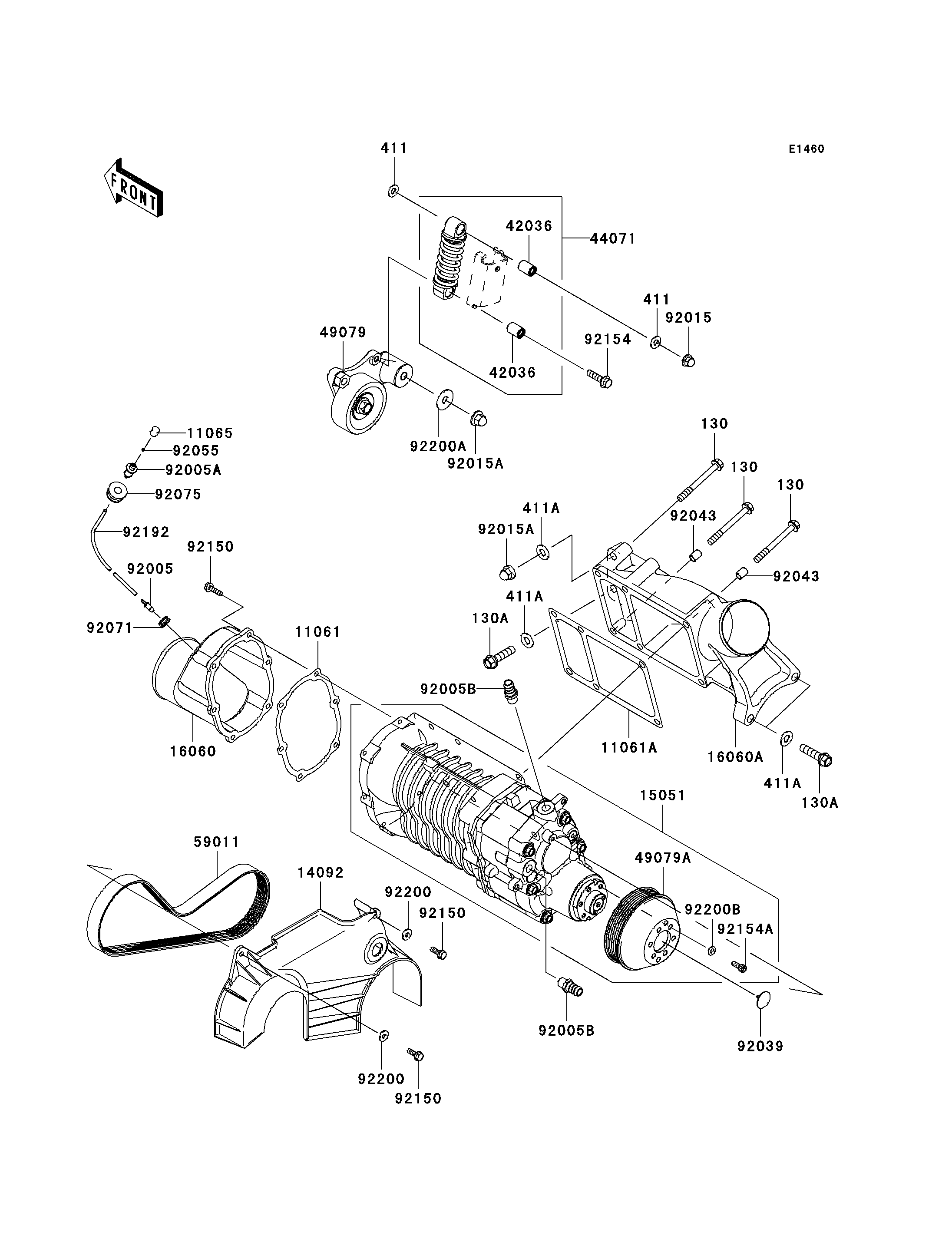

2011 JET SKI® ULTRA® 300X - Super Charger

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
411
411
411A
411A
411A
11061
11061A
11065
14092
15051
16060
16060A
42036
42036
44071
49079
49079A
59011
92005
92005A
92005B
92005B
92015
92015A
92015A
92039
92043
92043
92055
92071
92075
92150
92150
92150
92154
92154A
92192
92200
92200
92200A
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X75 130 130CD0875 6
BOLT-FLANGED,10X40 130A 130CD1040 3
WASHER-PLAIN,8MM 411 411S0800 2
WASHER-PLAIN,10MM 411A 411S1000 4
GASKET,COMPRESSOR IN 11061 11061-0760 1
GASKET,COMPRESSOR 11061A 11061-3763 1
CAP 11065 11065-0156 1
COVER,BELT 14092 14092-0838 1
COMPRESSOR-AIR,SUPER CHARGER 15051 15051-3704 1
PIPE-INTAKE,COMPRESSOR INLET 16060 16060-0738 1
PIPE-INTAKE,COMPRESSOR OUT 16060A 16060-3725 1
SLEEVE 42036 42036-0713 2
DAMPER-ASSY 44071 44071-0776 1
PULLEY-BELT 49079 49079-0703 1
PULLEY-BELT 49079A 49079-3704 1
BELT,6PK845 59011 59011-3702 1
FITTING 92005 92005-0722 1
FITTING 92005A 92005-0723 1
FITTING 92005B 92005-3714 2
NUT,CAP,8MM 92015 92015-1371 1
NUT,10MM 92015A 92015-1649 2
RIVET 92039 92039-3795 1
PIN,8.2X10.5X14 92043 92043-3764 2
RING-O,2X1 92055 92055-0718 1
GROMMET 92071 92071-1152 1
DAMPER,FUEL TANK 92075 92075-1424 1
BOLT,6X18 92150 92150-3729 8
BOLT 92154 92154-0865 1
BOLT,SOCKET,6X16 92154A 92154-3714 6
TUBE,3X4X600 92192 92192-1004 1
WASHER,6.5X16X2.0 92200 92200-1543 2
WASHER 92200A 92200-3762 1
WASHER,6.5X13X1.5 92200B 92200-3814 6
