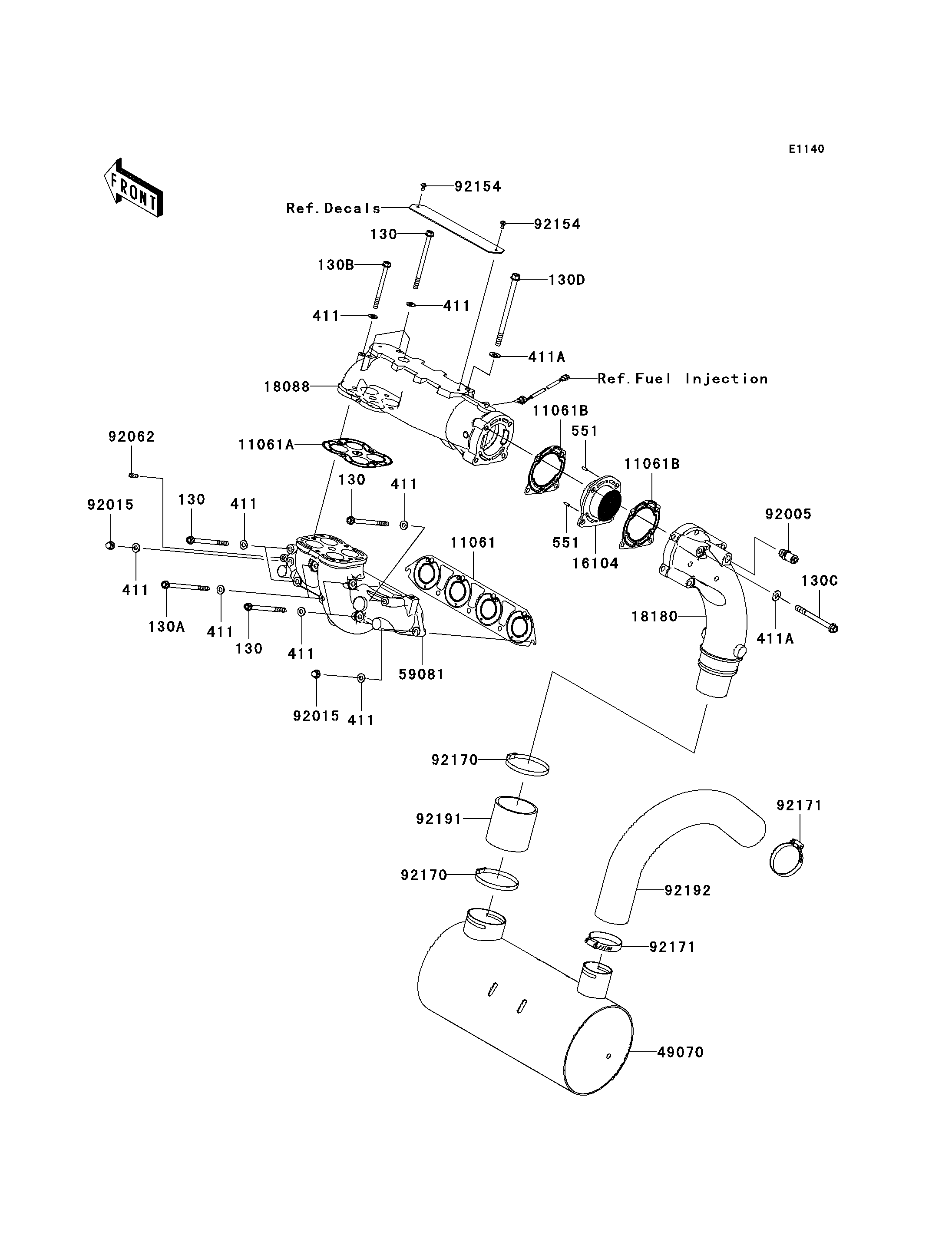

2012 JET SKI® ULTRA® 300X - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
130A
130B
130C
130D
411
411
411
411
411
411
411
411
411A
411A
551
551
11061
11061A
11061B
11061B
16104
18088
18180
49070
59081
92005
92015
92015
92062
92154
92154
92170
92170
92171
92171
92191
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X120 130 130CD08120 8
BOLT-FLANGED,8X140 130A 130CD08140 2
BOLT-FLANGED,8X95 130B 130CD0895 1
BOLT-FLANGED,10X100 130C 130CD10100 4
BOLT-FLANGED,10X150 130D 130CD10150 1
WASHER-PLAIN,8MM 411 411S0800 13
WASHER-PLAIN,10MM 411A 411S1000 5
PIN-DOWEL 551 551R0412 2
GASKET,MANIFOLD EXHAUST 11061 11061-3742 1
GASKET,PIPE EXHAUST 11061A 11061-3762 1
GASKET,MUFFLER 11061B 11061-3768 2
FILTER-COMP,MUFFLER 16104 16104-0567 1
PIPE-EXHAUST 18088 18088-3730 1
BODY-MUFFLER 18180 18180-3751 1
MUFFLER-COMP 49070 49070-3757 1
MANIFOLD-EXHAUST 59081 59081-3744 1
FITTING 92005 92005-0728 1
NUT,CAP,8MM 92015 92015-1371 2
NOZZLE 92062 92062-0562 1
BOLT,SOCKET,5X10 92154 92154-0211 2
CLAMP 92170 92170-3764 2
CLAMP 92171 92171-3715 2
TUBE,PIPE EX-MUFFLER 92191 92191-3986 1
TUBE,1ST-2ND 92192 92192-3761 1
