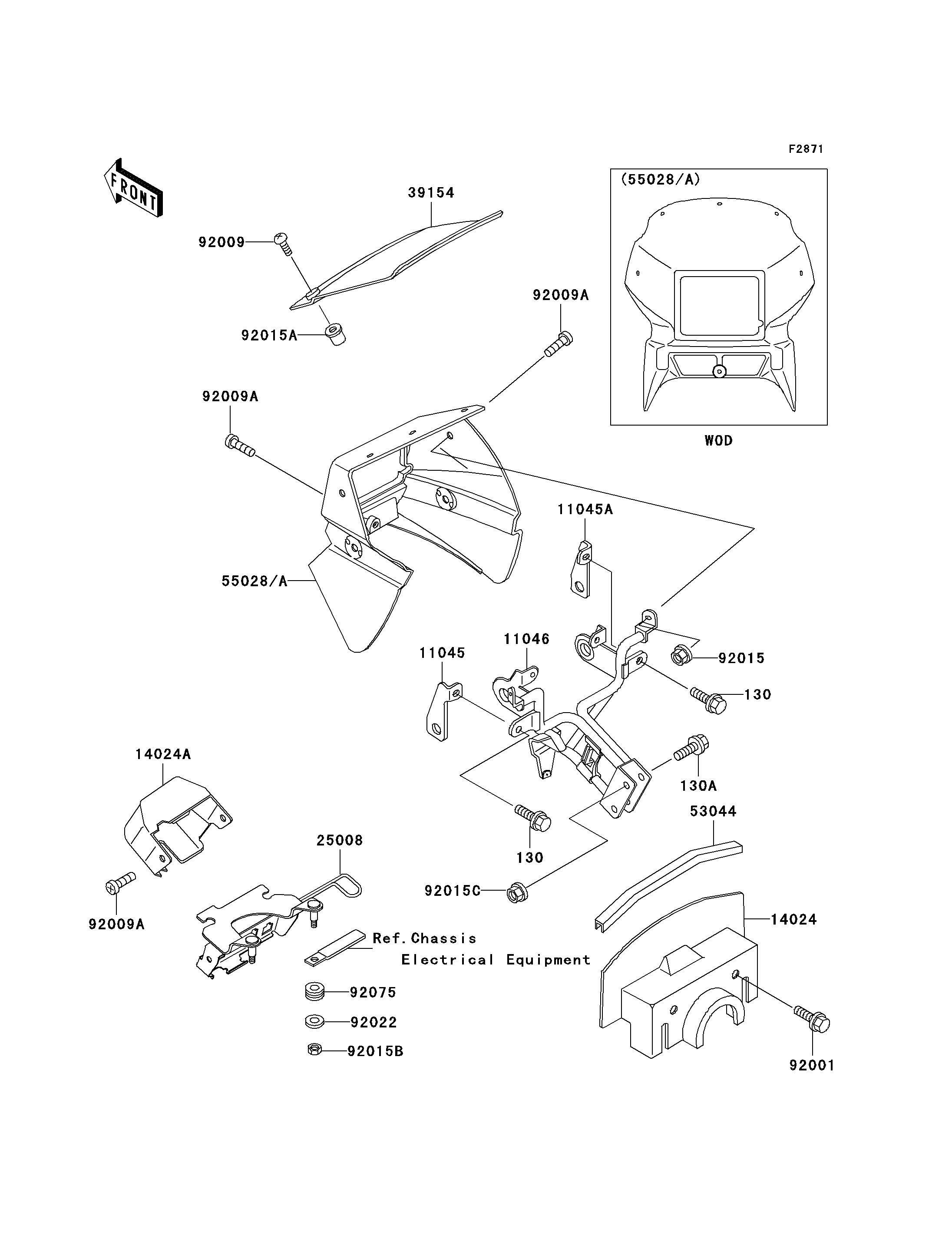

1997 KLR650 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
11045
11045A
11046
14024
14024A
25008
39154
53044
55028
92001
92009
92009A
92009A
92009A
92015
92015A
92015B
92015C
92022
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130C0612 2
BOLT-FLANGED,8X25 130A 130G0825 2
BRACKET,SIGNAL LAMP,LH 11045 11045-1798 1
BRACKET,SIGNAL LAMP,RH 11045A 11045-1799 1
BRACKET,COWLING 11046 11046-1036 1
COVER,COWLING,INNER 14024 14024-1366 1
COVER,HARNESS COUPLER 14024A 14024-1471 1
BRACKET-METER 25008 25008-1137 1
WINDSHIELD 39154 39154-1065 1
TRIM,COWLING COVER 53044 53044-1106 1
COWLING,UPP,F.B.GREEN 55028 55028-1164-59 1
BOLT,6X14,BLACK 92001 92001-1847 2
SCREW,5X14 92009 92009-1653 3
SCREW,6X14 92009A 92009-1662 5
NUT,FLANGED,6MM 92015 92015-1193 2
NUT,5MM,COWLING 92015A 92015-1343 3
NUT,6MM 92015B 92015-1391 2
NUT,FLANGED,8MM 92015C 92015-1406 2
WASHER,6.5X20X1.6 92022 92022-1557 2
DAMPER 92075 92075-024 2
