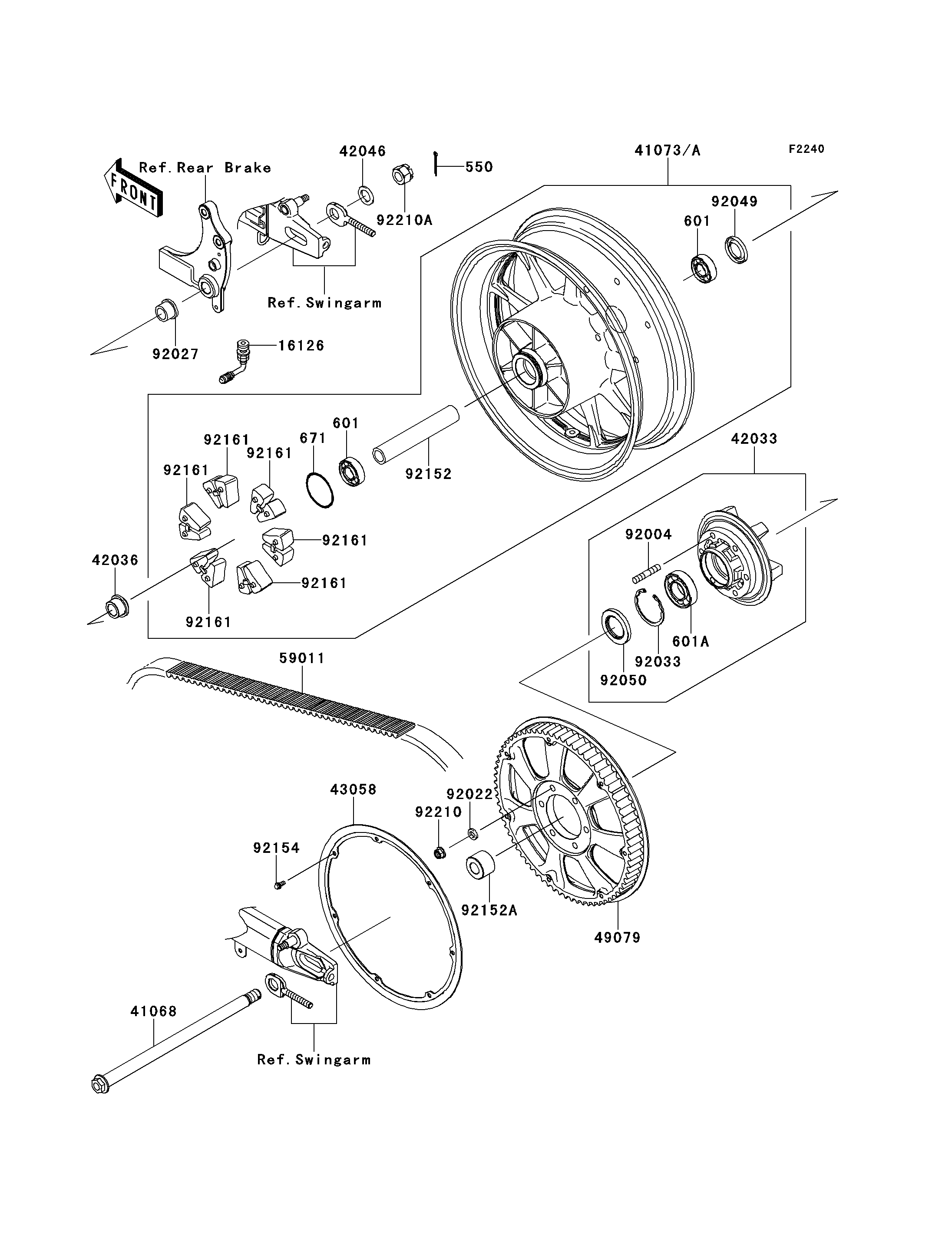

2013 VULCAN® 1700 VAQUERO® - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
601A
671
16126
41068
41073
42033
42036
42046
43058
49079
59011
92004
92022
92027
92033
92049
92050
92152
92152A
92154
92161
92161
92161
92161
92161
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,6204UUC3 601 601B6204UU 2
BEARING-BALL,#6206UUC3 601A 601B6206UU 1
O RING,60MM 671 671B2560 1
VALVE 16126 16126-1365 1
AXLE,RR 41068 41068-0057 1
WHEEL-ASSY,RR,BLACK 41073 41073-0136-R2 1
COUPLING-ASSY,RR HUB 42033 42033-0031 1
SLEEVE,RR HUB COUPLING 42036 42036-0060 1
WASHER,21X33X2.6 42046 42046-003 1
RING,PULLEY 43058 43058-0033 1
PULLEY-BELT 49079 49079-0018 1
BELT,DRIVE,139T 59011 59011-0029 1
STUD,10X35 92004 92004-0016 6
WASHER,10.5X19X3.2 92022 92022-1820 6
COLLAR,RR AXLE,L=21.5 92027 92027-1902 1
RING-SNAP,62MM 92033 92033-1044 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,AJN40627 92050 92050-027 1
COLLAR,RR HUB,L=172 92152 92152-0640 1
COLLAR,RR AXLE,LH,L=28 92152A 92152-0641 1
BOLT,FLANGED,6X12 92154 92154-0346 7
DAMPER,SHOCK,RR HUB 92161 92161-0576 6
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
NUT,CASTLE,18MM 92210A 92210-1134 1
