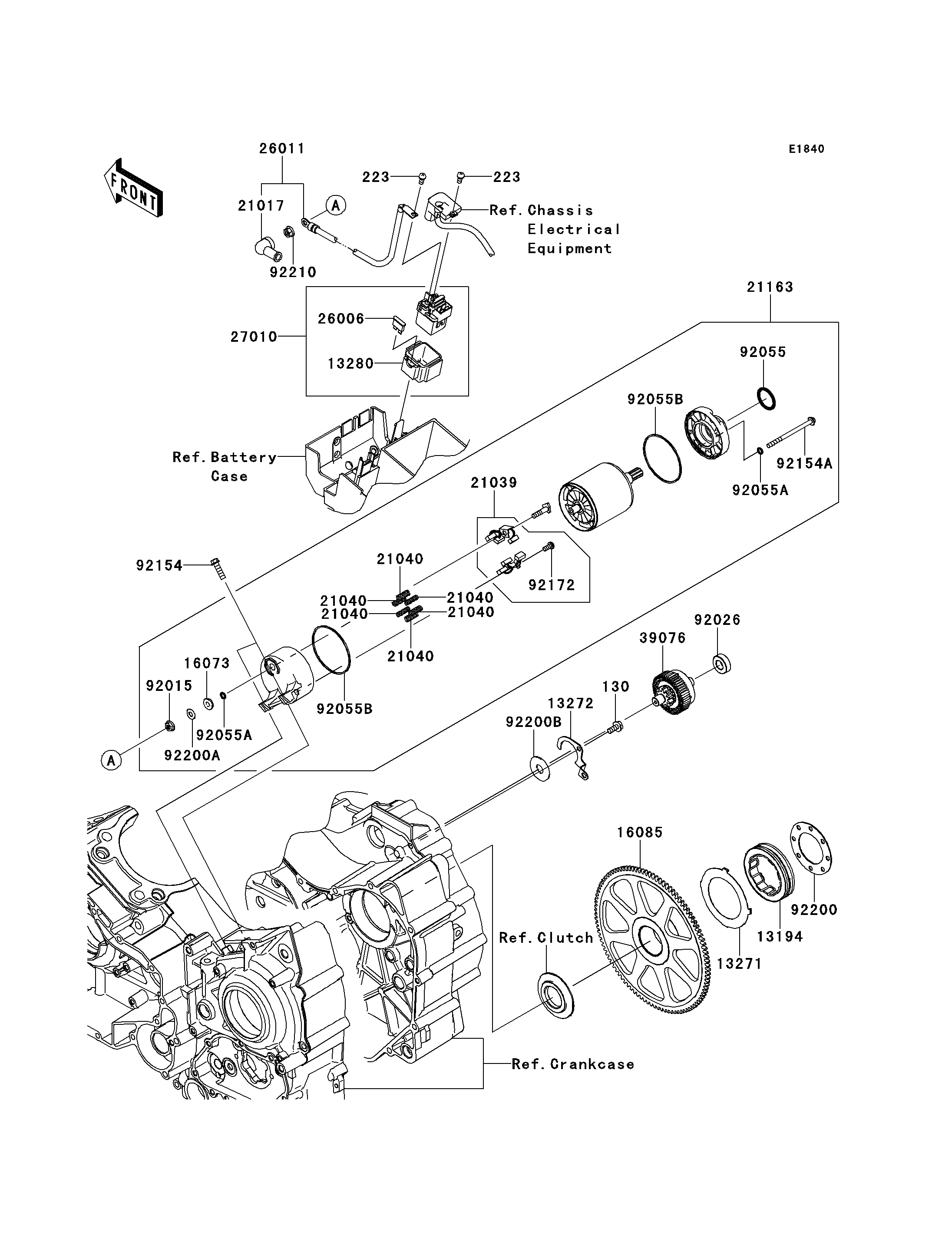

2013 VULCAN® 1700 VAQUERO® - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
130
223
223
13194
13271
13272
13280
16073
16085
21017
21039
21040
21040
21040
21040
21040
21040
21163
26006
26011
27010
39076
92015
92026
92055
92055A
92055A
92055B
92055B
92154
92154A
92172
92200
92200A
92200B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 1
SCREW-PAN-WS-CROS,5X10 223 223AA0510 2
CLUTCH-ONEWAY 13194 13194-0001 1
PLATE 13271 13271-0037 1
PLATE,LIMITER 13272 13272-0673 1
HOLDER 13280 13280-1263 1
INSULATOR 16073 16073-0053 1
GEAR,FREE WHEEL 16085 16085-0121 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
BRUSH 21039 21039-0009 1
SPRING-BRUSH 21040 21040-0003 6
STARTER-ELECTRIC 21163 21163-0055 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 1
WIRE-LEAD 26011 26011-0239 1
SWITCH,MAGNETIC 27010 27010-1446 1
LIMITER,STARTER IDLE GEAR 39076 39076-0017 1
NUT,STARTER MOTOR 92015 92015-1476 1
SPACER,12.3X25X8.1 92026 92026-0127 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 3
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT,FLANGED-SMALL,6X22 92154 92154-0198 2
BOLT 92154A 92154-0265 2
SCREW 92172 92172-0334 1
WASHER,44X73.5X1.2 92200 92200-0019 1
WASHER 92200A 92200-0386 1
WASHER,12X34X1.6 92200B 92200-0478 1
NUT,6MM 92210 92210-0188 1
