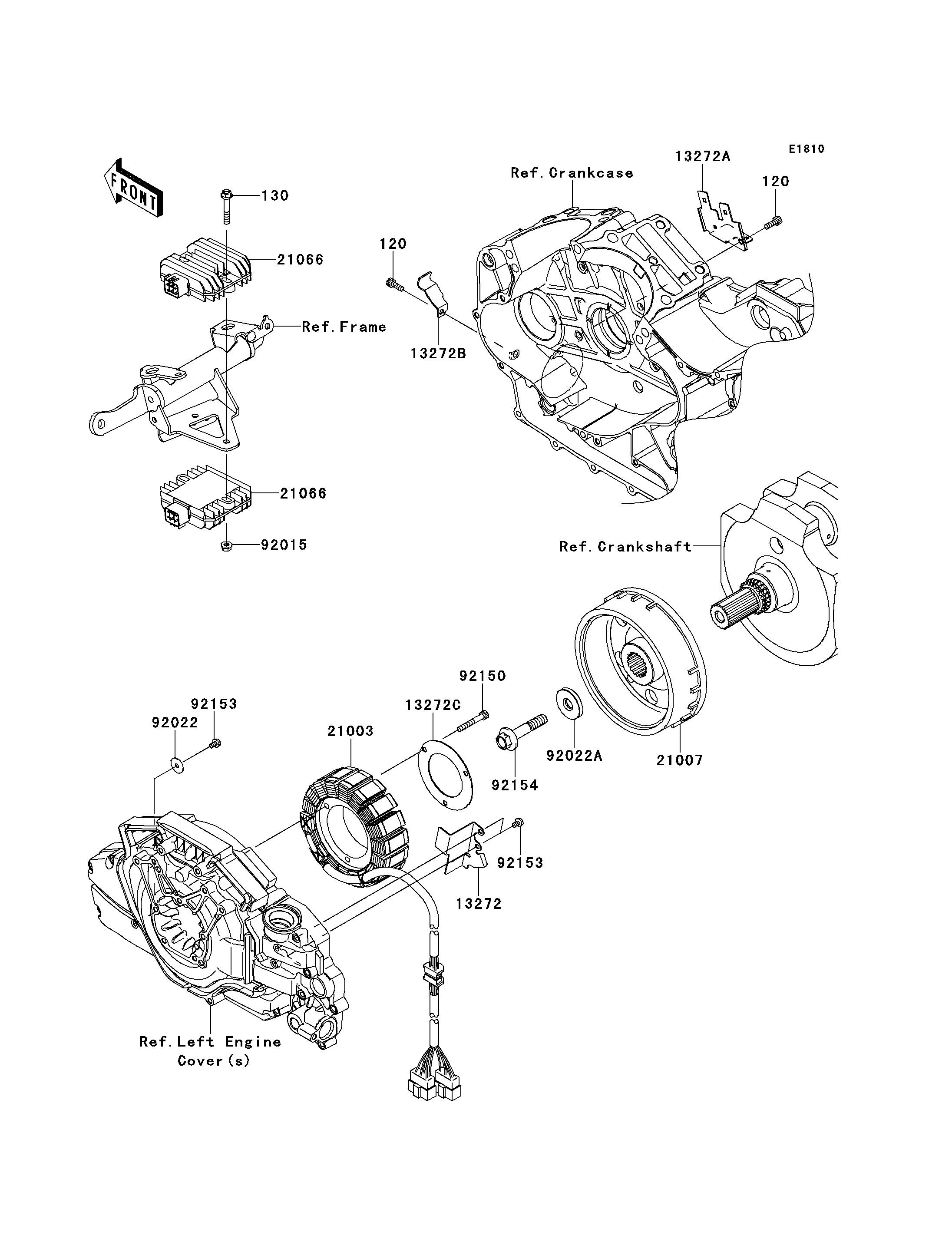

2013 VULCAN® 1700 VOYAGER® - Generator
120
120
130
13272
13272A
13272B
13272C
21003
21007
21066
21066
92015
92022
92022A
92150
92153
92153
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X16 | 120 | 120CA0616 | 2 | ||
| BOLT-FLANGED,6X40 | 130 | 130BB0640 | 2 | ||
| PLATE,INNER GENE. COVER | 13272 | 13272-0320 | 1 | ||
| PLATE,COUPLER | 13272A | 13272-0426 | 1 | ||
| PLATE,FR RH CASE | 13272B | 13272-0427 | 1 | ||
| PLATE,STATOR | 13272C | 13272-0683 | 1 | ||
| STATOR | 21003 | 21003-0076 | 1 | ||
| ROTOR | 21007 | 21007-0116 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0043 | 2 | ||
| NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 2 | ||
| WASHER,5.5X20X1.2 | 92022 | 92022-104 | 1 | ||
| WASHER,12X40X6 | 92022A | 92022-1904 | 1 | ||
| BOLT,SOCKET,6X40 | 92150 | 92150-1958 | 3 | ||
| BOLT,5X10 | 92153 | 92153-0687 | 3 | ||
| BOLT,ROTOR,12X60 | 92154 | 92154-0032 | 1 |
