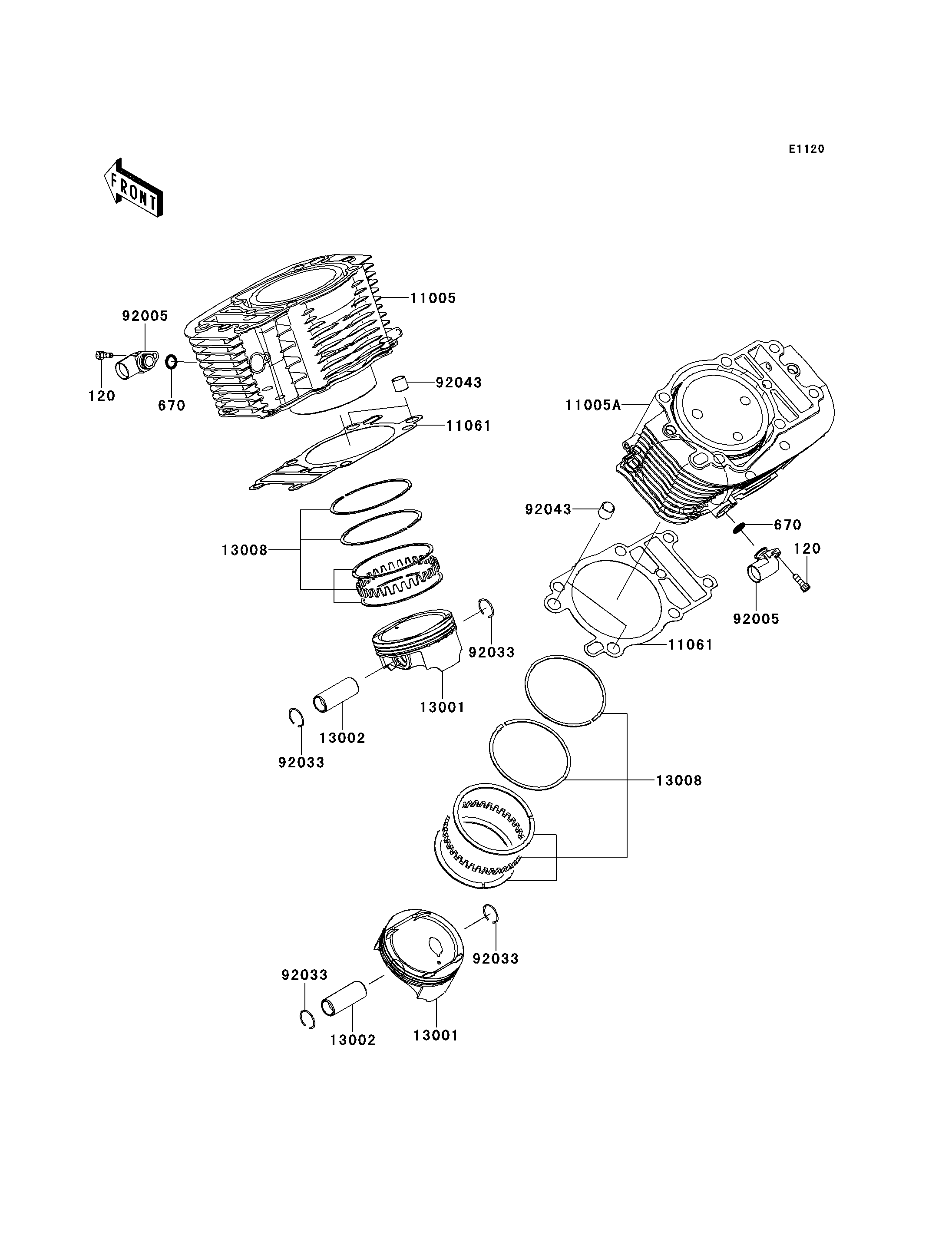

2013 VULCAN® 1700 VOYAGER® - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
670
670
11005
11005A
11061
11061
13001
13001
13002
13002
13008
13008
92005
92005
92033
92033
92033
92033
92043
92043
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X18 120 120CB0618 2
O RING,15MM 670 670B2015 2
CYLINDER-ENGINE,FR 11005 11005-0103 1
CYLINDER-ENGINE,RR 11005A 11005-0104 1
GASKET,CYLINDER BASE 11061 11061-0335 2
PISTON-ENGINE 13001 13001-0124 2
PIN-PISTON 13002 13002-0023 2
RING-SET-PISTON 13008 13008-0044 2
FITTING 92005 92005-0098 2
RING-SNAP 92033 92033-3721 4
PIN,13X16X14 92043 92043-1608 4
