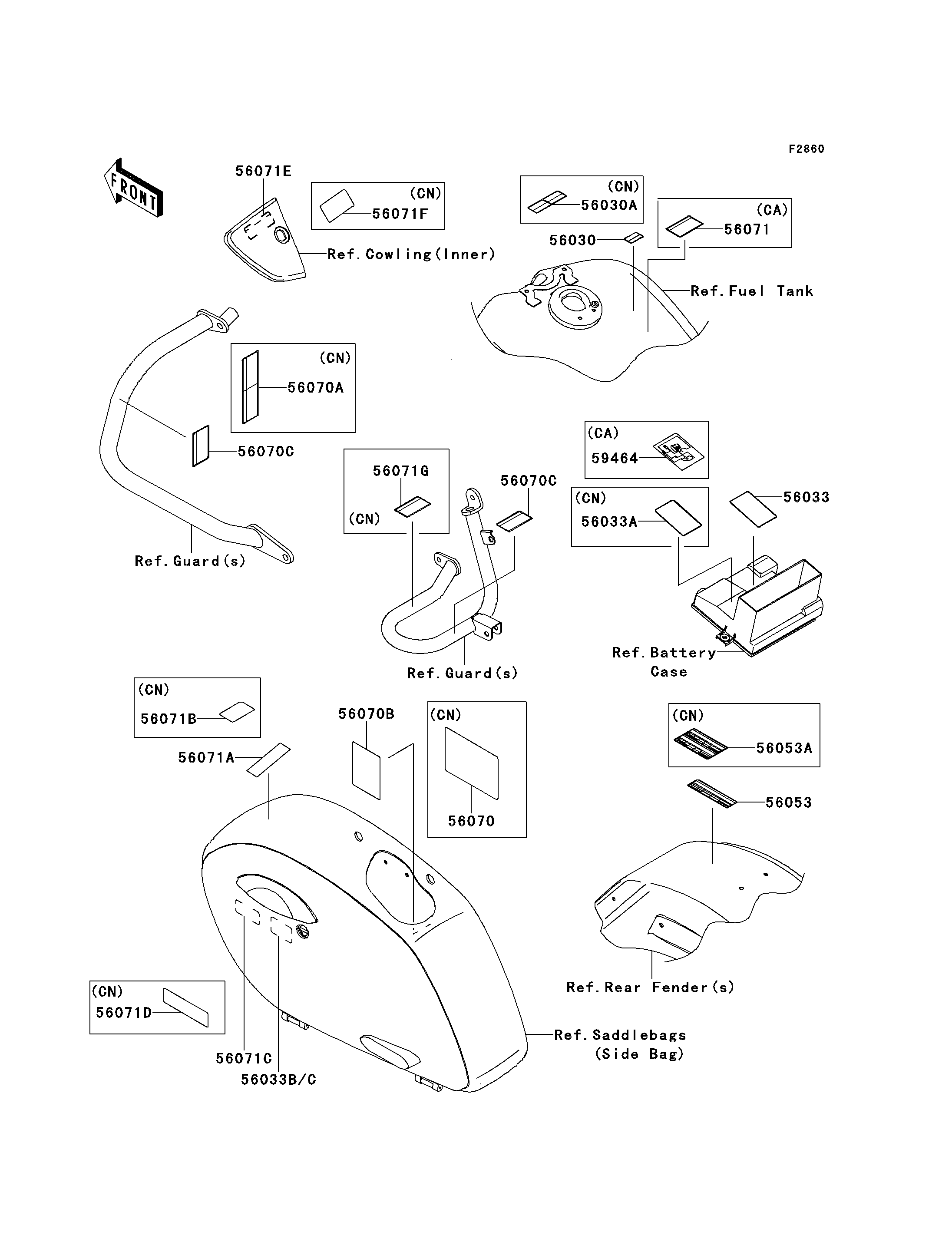

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-MANUAL,DAILY SAFETY | 56033 | 56033-0712 | 1 | ||
| LABEL,GASOLINE | 56030 | 56030-0357 | 1 | CAUS | |
| LABEL,GASOLINE | 56030A | 56030-0358 | 1 | CN | |
| LABEL-MANUAL,DAILY SAFETY | 56033A | 56033-0713 | 1 | CN | |
| LABEL-MANUAL,SIDE BAG | 56033B | 56033-1132 | 2 | CN | |
| LABEL-MANUAL,SIDE BAG | 56033C | 56033-1330 | 2 | CAUS | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053 | 56053-0379 | 1 | CAUS | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053A | 56053-0380 | 1 | CN | |
| LABEL-WARNING,SADDLEBAG | 56070 | 56070-1150 | 2 | CN | |
| LABEL-WARNING,SIDE BAG GUARD | 56070A | 56070-1180 | 1 | CN | |
| LABEL-WARNING,SADDLEBAG | 56070B | 56070-1282 | 2 | CAUS | |
| LABEL-WARNING,SIDE BAG GUARD | 56070C | 56070-1285 | 1 | CN | |
| LABEL-WARNING,SIDE BAG GUARD | 56070C | 56070-1285 | 2 | CAUS | |
| LABEL-WARNING,EVAPO | 56071 | 56071-0158 | 1 | CA | |
| LABEL-WARNING,SADDLEBAG | 56071A | 56071-0171 | 2 | CAUS | |
| LABEL-WARNING,SADDLEBAG | 56071B | 56071-0172 | 2 | CN | |
| LABEL-WARNING,SADDLEBAG | 56071C | 56071-0173 | 2 | CAUS | |
| LABEL-WARNING,SADDLEBAG | 56071D | 56071-0175 | 2 | CN | |
| LABEL-WARNING,STORAGE COMPT | 56071E | 56071-0180 | 2 | CAUS | |
| LABEL-WARNING,STORAGE COMPT | 56071F | 56071-0181 | 2 | CN | |
| LABEL-WARNING,EG GUARD | 56071G | 56071-0208 | 1 | CN | |
| LABEL-CERTIFICATION,EVAPO ROUT | 59464 | 59464-1618 | 1 | CA |
