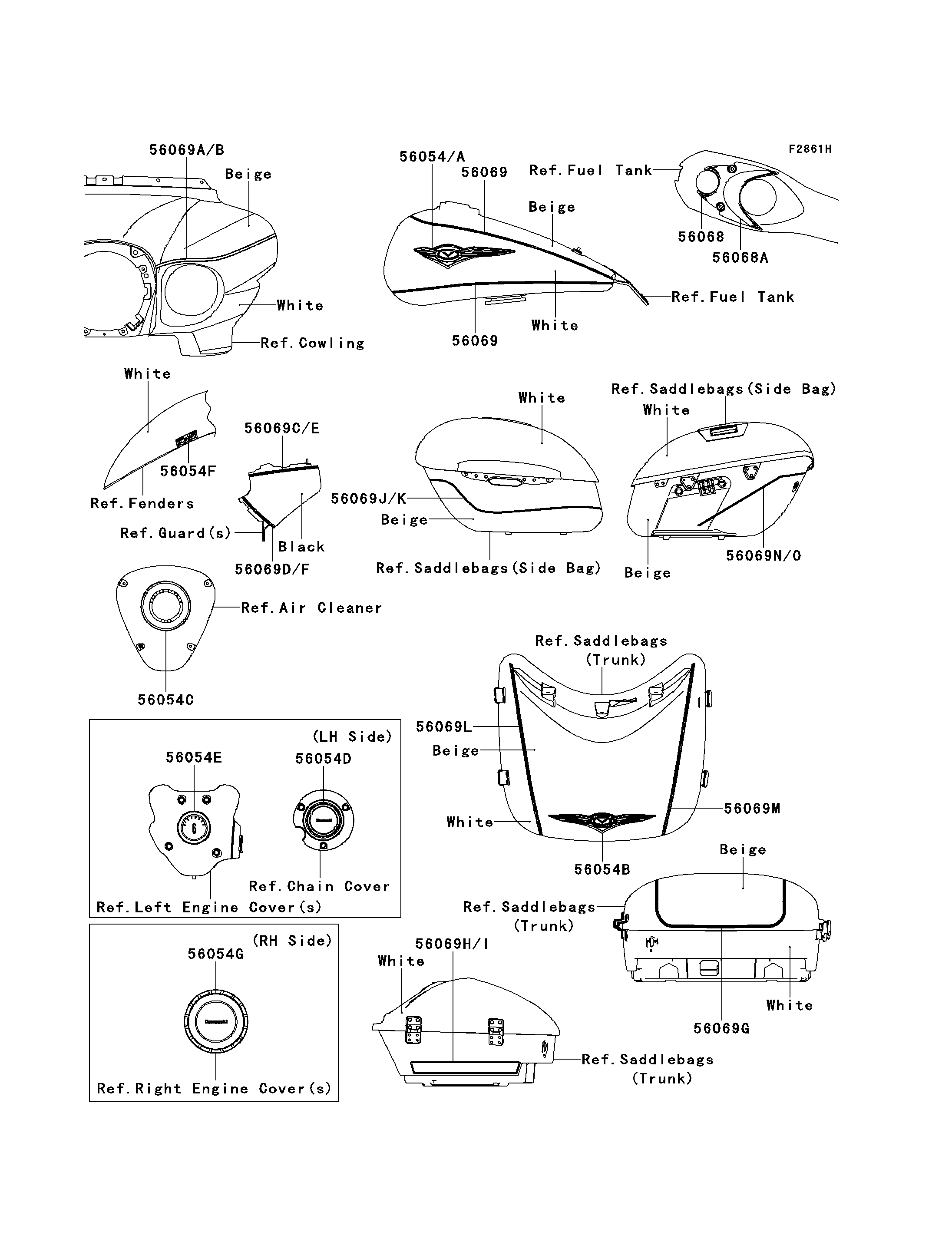

2012 VULCAN® 1700 VOYAGER® ABS - Decals(White/Beige)(BCF)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH | 56054 | 56054-0300 | 1 | CAUS | |
| MARK,FUEL TANK,RH | 56054A | 56054-0301 | 1 | CAUS | |
| MARK,REAR TRUNK | 56054B | 56054-0302 | 1 | CAUS | |
| MARK,AIR CLEANER COVER | 56054C | 56054-0303 | 2 | CAUS | |
| MARK,PULLEY COVER | 56054D | 56054-0304 | 1 | CAUS | |
| MARK,GENERATOR COVER | 56054E | 56054-0305 | 1 | CAUS | |
| MARK,FR FENDER,ABS | 56054F | 56054-0455 | 2 | CAUS | |
| MARK,CLUTCH COVER | 56054G | 56054-0463 | 1 | CAUS | |
| PATTERN,TANK COVER,UPP | 56068 | 56068-1881 | 1 | CAUS | |
| PATTERN,TANK COVER,LWR | 56068A | 56068-1882 | 1 | CAUS | |
| PATTERN,FUEL TANK | 56069 | 56069-1613 | 4 | CAUS | |
| PATTERN,FR COWLING,LH | 56069A | 56069-1617 | 1 | CAUS | |
| PATTERN,FR COWLING,RH | 56069B | 56069-1618 | 1 | CAUS | |
| PATTERN,LEG SHIELD,UPP,LH | 56069C | 56069-1619 | 1 | CAUS | |
| PATTERN,LEG SHIELD,LWR,LH | 56069D | 56069-1620 | 1 | CAUS | |
| PATTERN,LEG SHIELD,UPP,RH | 56069E | 56069-1621 | 1 | CAUS | |
| PATTERN,LEG SHIELD,LWR,RH | 56069F | 56069-1622 | 1 | CAUS | |
| PATTERN,RR TRUNK,UPP | 56069G | 56069-1623 | 1 | CAUS | |
| PATTERN,RR TRUNK,LWR,LH | 56069H | 56069-1624 | 1 | CAUS | |
| PATTERN,RR TRUNK,LWR,RH | 56069I | 56069-1625 | 1 | CAUS | |
| PATTERN,SIDE BAG,LH | 56069J | 56069-1626 | 1 | CAUS | |
| PATTERN,SIDE BAG,RH | 56069K | 56069-1627 | 1 | CAUS | |
| PATTERN,RR TRUNK,UPP,LH | 56069L | 56069-1806 | 1 | CAUS | |
| PATTERN,RR TRUNK,UPP,RH | 56069M | 56069-1807 | 1 | CAUS | |
| PATTERN,SIDE BAG,RR,LH | 56069N | 56069-1909 | 1 | CAUS | |
| PATTERN,SIDE BAG,RR,RH | 56069O | 56069-1910 | 1 | CAUS |
