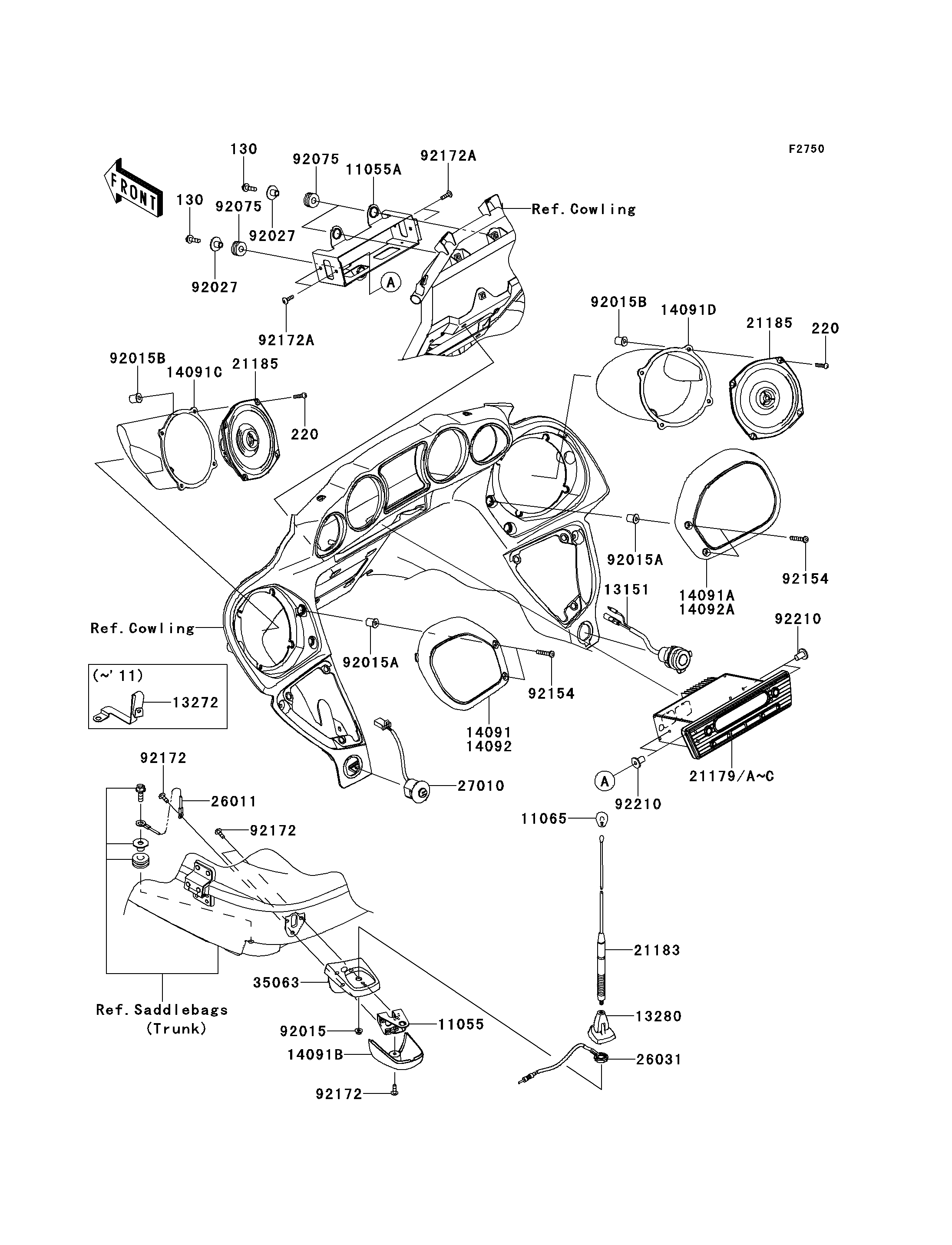

2012 VULCAN® 1700 VOYAGER® - Other

DOWNLOAD PDF
SELECT A NEW PART
130
130
220
220
11055
11055A
11065
13151
13280
14091B
14091C
14091D
14092
14092A
21179C
21183
21185
21185
26011
26031
27010
35063
92015
92015A
92015A
92015B
92015B
92027
92027
92075
92075
92154
92154
92172
92172
92172
92172A
92172A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130BA0622 3
SCREW-PAN-CROSS,5X20 220 220AB0520 8
BRACKET,ANTENNA STAY 11055 11055-0683 1
BRACKET,AUDIO 11055A 11055-1510 1
CAP,ANTENNA 11065 11065-0305 1
SWITCH-COMP 13151 13151-0040 1
HOLDER,ANTENNA 13280 13280-0285 1
COVER,ANTENNA STAY 14091B 14091-1576 1
COVER,SPEAKER BOX,LH 14091C 14091-1773 1
COVER,SPEAKER BOX,RH 14091D 14091-1774 1
COVER,SPEAKER,LH 14092 14092-0811 1
COVER,SPEAKER,RH 14092A 14092-0812 1
RADIO-TUNER 21179C 21179-0059 1
ANTENNA 21183 21183-0006 1
SPEAKER 21185 21185-0001 2
WIRE-LEAD,ANTENNA 26011 26011-0287 1
HARNESS,ANTENNA 26031 26031-0735 1
SWITCH,SUB LAMP 27010 27010-0107 1
STAY,ANTENNA 35063 35063-0519 1
NUT,FLANGED,5MM 92015 92015-1259 1
NUT 92015A 92015-1700 4
NUT,WELL,5MM 92015B 92015-1757 8
COLLAR,L=13.1,BLACK 92027 92027-1450 3
DAMPER 92075 92075-1690 3
BOLT,SOCKET,6X30 92154 92154-0206 4
SCREW,5X16 92172 92172-0322 4
SCREW,5X18 92172A 92172-0428 4
NUT,WELL,5MM 92210 92210-0532 4
