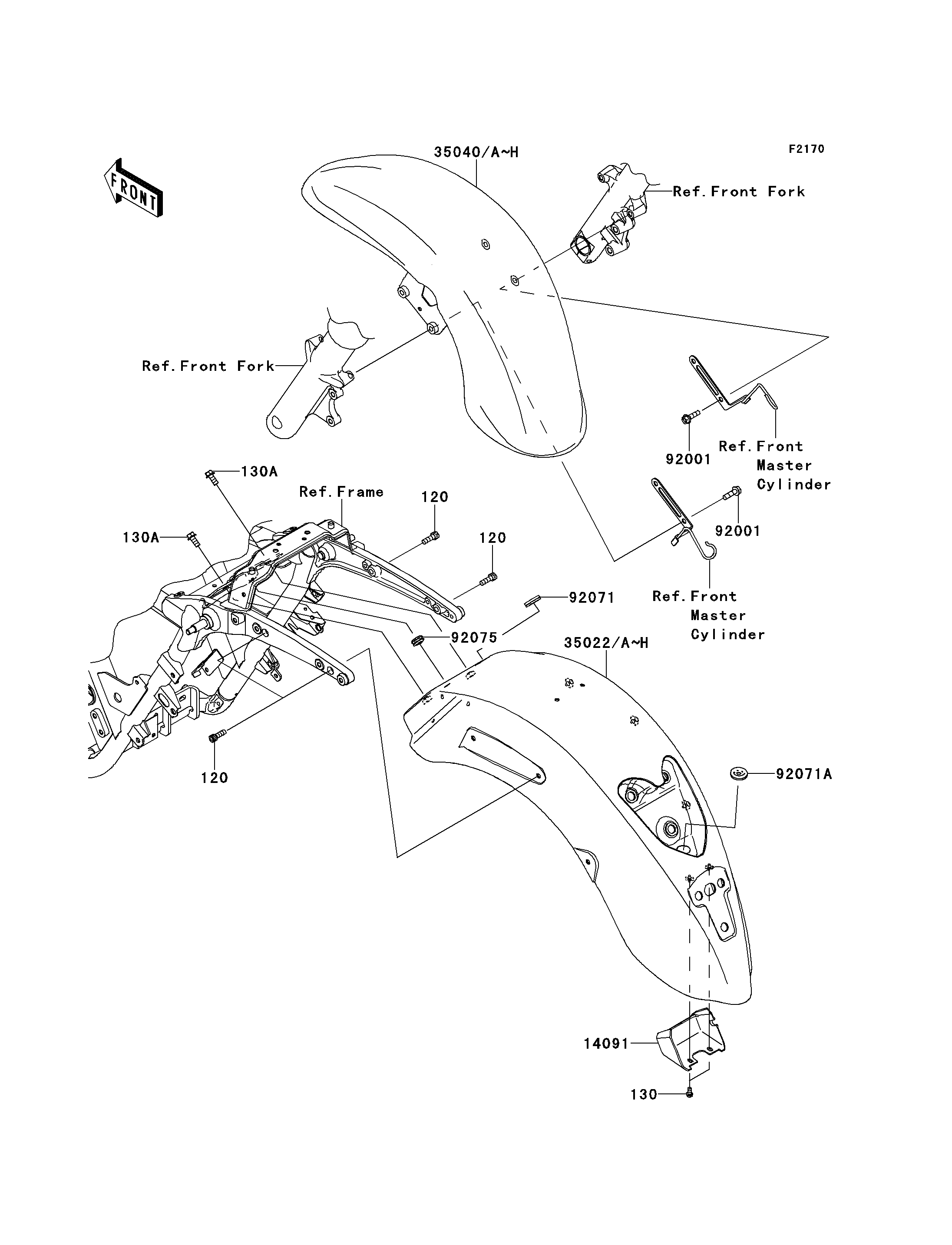

Parts Diagrams |
14091
14091
35022
35022
35040
35040
120
120
120
120
120
120
130
130
130A
130A
130A
130A
92001
92001
92001
92001
92071
92071
92071A
92071A
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,HARNESS CONNECTOR | 14091 | 14091-1630 | 1 | ||
| FENDER-COMP-REAR,M.GRAYSTONE | 35022 | 35022-0066-C4 | 1 | ||
| FENDER-COMP-FRONT,M.GRAYSTONE | 35040 | 35040-0017-C4 | 1 | ||
| BOLT-SOCKET,8X25 | 120 | 120CA0825 | 4 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 | ||
| BOLT-FLANGED,8X16 | 130A | 130BA0816 | 2 | ||
| BOLT,FLANGED,8X28 | 92001 | 92001-1095 | 4 | ||
| GROMMET | 92071 | 92071-1228 | 1 | ||
| GROMMET | 92071A | 92071-1265 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 1 | ||
| FENDER-COMP-REAR,P.A.WHITE | 35022A | 35022-0066-R1 | 1 | CAUS | |
| FENDER-COMP-FRONT,P.A.WHITE | 35040A | 35040-0017-R1 | 1 | CAUS |
| COVER,HARNESS CONNECTOR | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,M.GRAYSTONE | |
| REF # | 35022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-FRONT,M.GRAYSTONE | |
| REF # | 35040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X28 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,P.A.WHITE | |
| REF # | 35022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| FENDER-COMP-FRONT,P.A.WHITE | |
| REF # | 35040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
