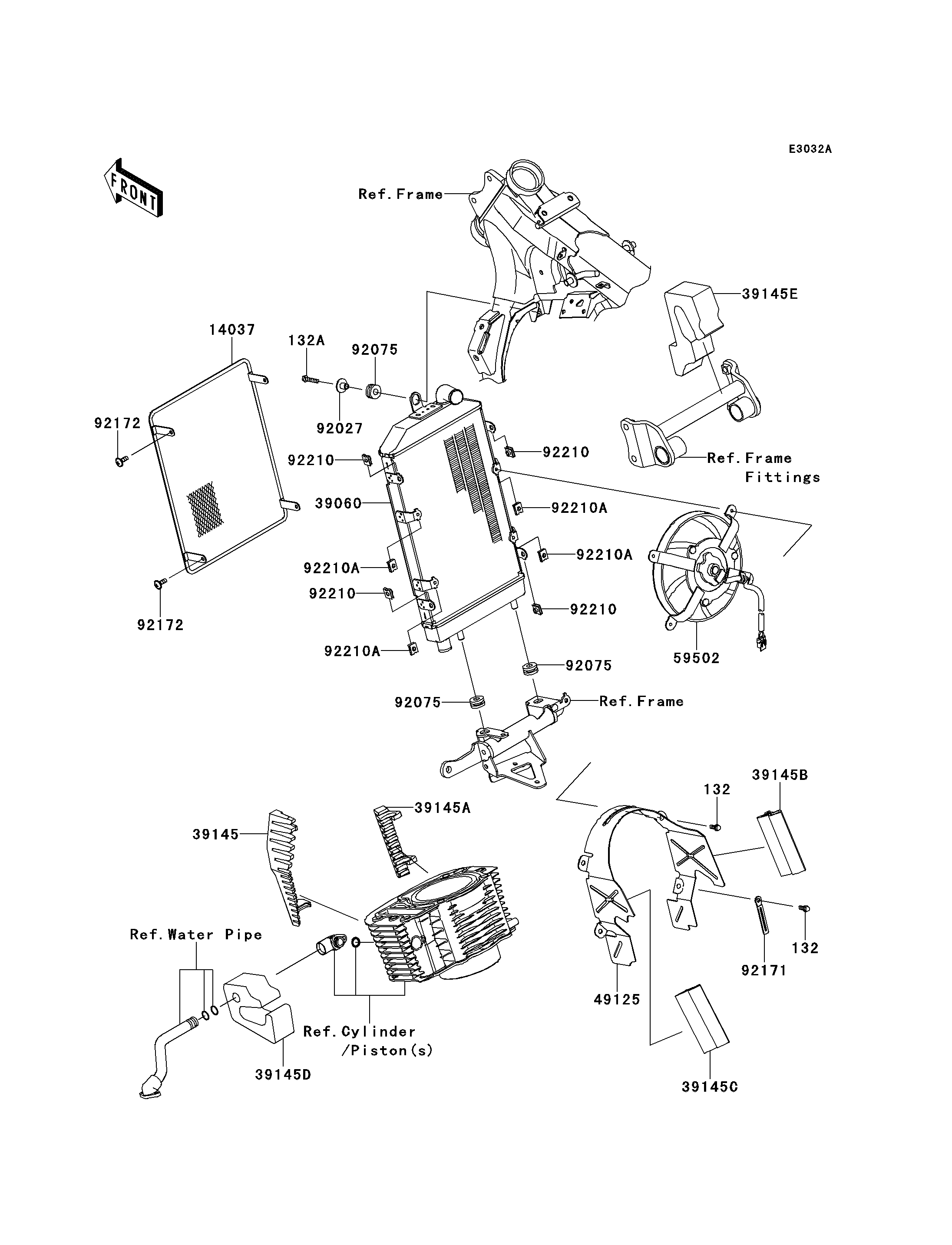

2012 VULCAN® 1700 VOYAGER® - Radiator(ACF)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
14037
39060
39145
39145A
39145B
39145C
39145D
39145E
49125
59502
92027
92075
92075
92075
92171
92172
92172
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BB0614 4
BOLT-FLANGED-SMALL,6X20 132A 132BB0620 1
SCREEN,INNER 14037 14037-0014 1
RADIATOR 39060 39060-0706 1
TRIM-SEAL,HEAD LH 39145 39145-0704 1
TRIM-SEAL,HEAD RH 39145A 39145-0705 1
TRIM-SEAL,SHROUD RH 39145B 39145-0706 1
TRIM-SEAL,SHROUD LH 39145C 39145-0707 1
TRIM-SEAL,SHROUD LH,LWR 39145D 39145-0708 1
TRIM-SEAL,SHROUD RH,LWR 39145E 39145-0709 1
SHROUD 49125 49125-0559 1
FAN-ASSY 59502 59502-0040 1
COLLAR,L=13.1,BLACK 92027 92027-1450 1
DAMPER 92075 92075-1690 3
CLAMP 92171 92171-0791 1
SCREW,6X14 92172 92172-0004 4
NUT 92210 92210-1125 4
NUT 92210A 92210-1323 4
