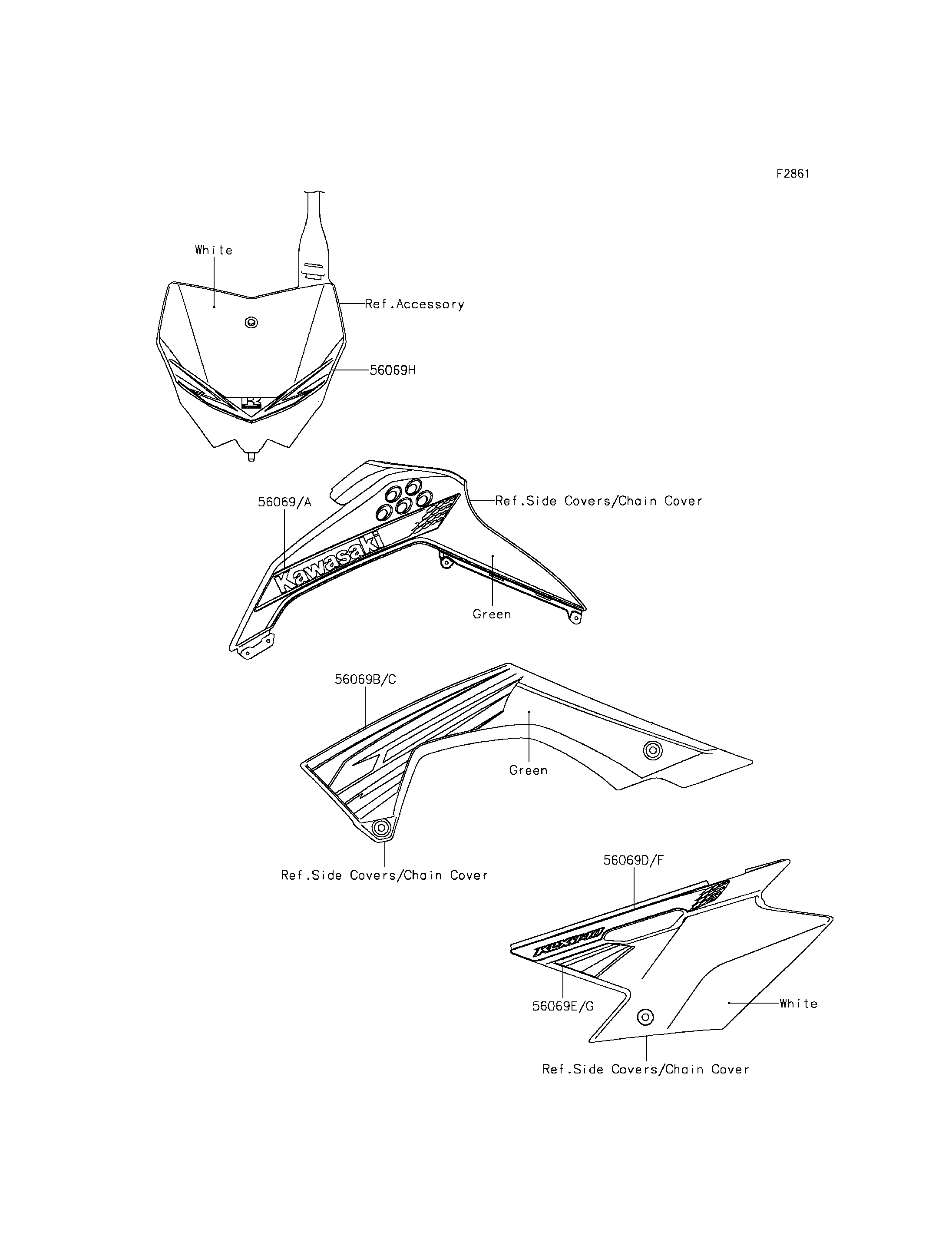

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,SHROUD,UPP,LH | 56069 | 56069-1325 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56069A | 56069-1326 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56069B | 56069-1327 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56069C | 56069-1328 | 1 | ||
| PATTERN,SIDE COVER,LH,UPP | 56069D | 56069-1329 | 1 | ||
| PATTERN,SIDE COVER,LH,LWR | 56069E | 56069-1330 | 1 | ||
| PATTERN,SIDE COVER,RH,UPP | 56069F | 56069-1331 | 1 | ||
| PATTERN,SIDE COVER,RH,LWR | 56069G | 56069-1332 | 1 | ||
| PATTERN,NUMBER PLATE | 56069H | 56069-1333 | 1 |
